PERFORMANCE FUEL INJECTION 1000cc BOSCH Fuel-Injectors Nissan Skyline RB26DETT

  • $634.49

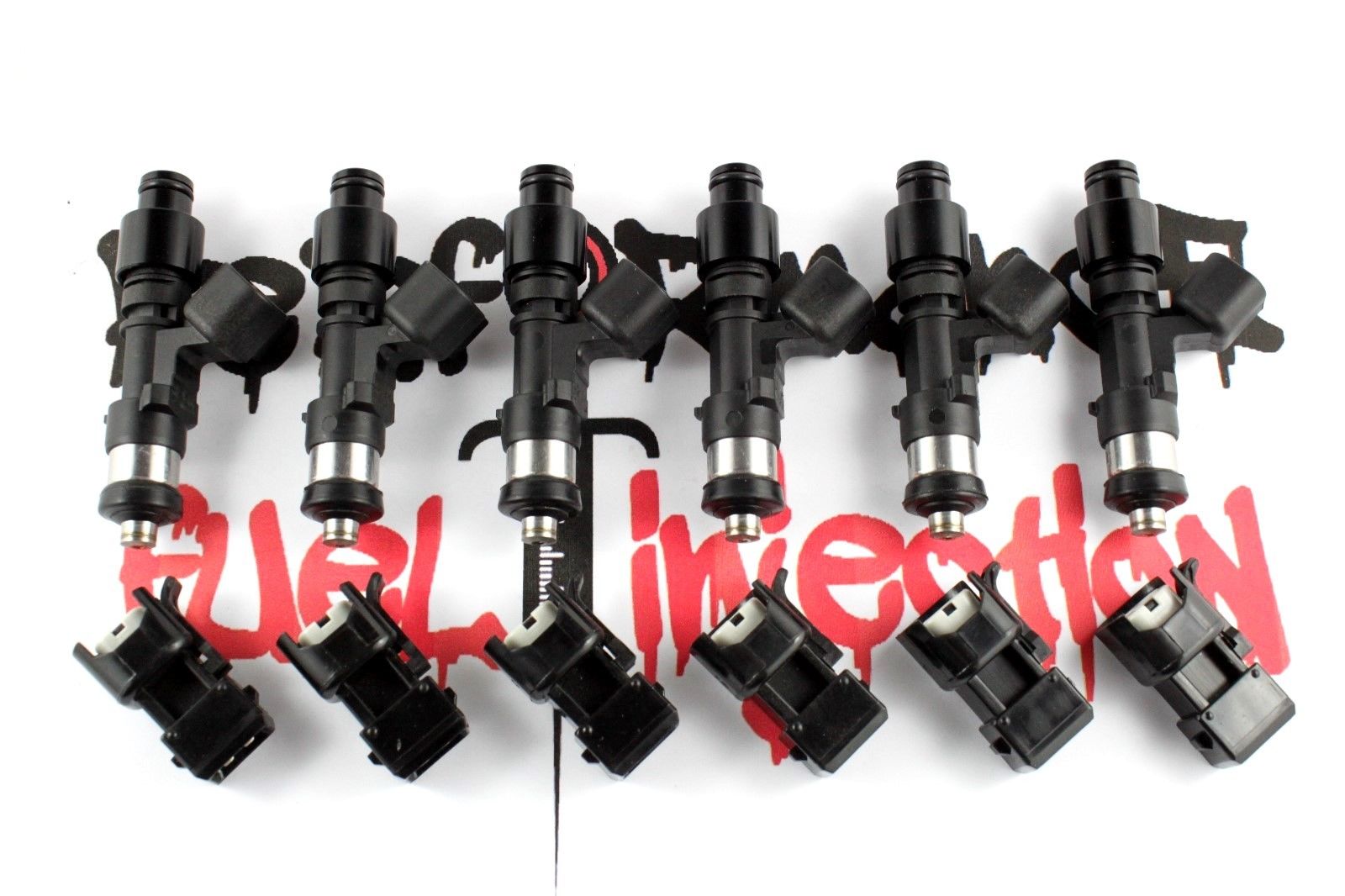

6 - 1000cc Bosch EV14 Fuel Injectors WITH adapters!

ASNU flow matched W/ 1yr Warranty!

__________________________________________

Looking for a larger injector for your high powered Nissan Skyline GT-R? Up for sale is a set of six (6) NEW BOSCH EV14 - 1000cc/min fuel injectors.  These injectors have an 11.5mm top o-ring suitable for 11mm fuel rails. Also included are the proper USCAR to EV1 electrical connectors for a DIRECT FIT! NO SPLICING REQUIRED! These are HIGH IMPEDANCE so NO resistor boxes are required. We also offer these injectors packaged with our high flow fuel rails

These BOSCH EV14 injectors are compatible with all known fuels, including alcohol and E85. They offer fast response times, predictable flow down to 2ms, and maintain linear flow up to 8 BAR fuel pressure. Great for small-medium displacement engines making big power. This set can support up to 900bhp @ 90% duty(3bar FP), and over 1000bhp at 4bar.

This set is custom milled from NEW Bosch cores and flow matched to less than 2% (static & dynamic) for optimal idle, and drivability. Fuel discharge is through a single hole with a medium cone spray pattern for superior fuel atomization. These injectors are covered by our best 2yr unlimited mile warranty.

WE SUPPLY ALL OF THE NECESSARY TUNING INFO WITH THIS SET.

Direct fit Applications:
- RB26DETT R32/R33/R34 Skyline

Please inquire if you do not see your application, we do not have them all listed.

SPECS:
Coil Resistance: 12 Ohms (This high-impedance injector will work with all factory ECM/PCM injector drivers)
Spray Pattern: Wide Split Cone, (single orifice)
Electrical Connector: USCAR (New-style V=EV6 / Oval / LS2)
Fitted with Viton upper and lower o-rings.
Static Flow Rate @ 43.5PSI (300kPa): 95 lb/hr = 6.52g/s = 1000cc/min
Overall Length: 65.5mm
Dimensions: 48.5mm o-ring seat to seat, 53.5mm o-ring centerline to centerline
