    2JZ-GTE VVTi (JZS161) and 1JZ-GTE VVTi (JZX110/JZS171) PNP For EMU Black

    • SPECIAL ORDER ITEM PLEASE CONTACT US TO VERIFY THE LEADTIME BEFORE PLACING YOUR ORDER.
    $387.99 CAD


    Delivery and Shipping

    Free Ground Shipping In Canada Over $250 Live Now! - Applied Automatically At Checkout - Freight & Oversize Excluded

    THE WAIT IS OVER!.
    For years we've received requests for a VVTi 2JZ/1JZ Plug and Play adapter, and it's finally here. Non-VVTi motors are harder and harder to find, and the benefits of VVTi are now widely known, so we created a plug and play adapter to make your VVTi 2JZ/1JZ installation even easier. This adapter does NOT support automatic transmission or the Toyota BEAN network (used for gauge cluster and HVAC in models like the IS300/GS300), so this adapter is primarily aimed at customers swapping VVTi 2JZ/1JZ engines into other chassis. (See 2JZ-GE note below)
    Support was not added for the stock sequential turbo system, so if you wish to retain the OEM turbos then they'll need to be converted to true twin operation. This adapter supports the factory drive by wire throttle, and the Mass Airflow sensor is no longer needed. Our WHPIAT air temperature sensor should be purchased with this adapter. Factory camshaft and crankshaft sensors are supported, along with the factory coolant temperature sensor, throttle body, and more.

    Also compatible with the following 2JZ-GE wiring harnesses:
    98-01 GS300
    01 IS300

    Note for 1JZ-GTE VVTi:

    This 2JZ-GTE VVTi adapter will work with the (JZX110 and JZS171) 1JZ-GTE VVTi engine and wiring harness variant with the (5) ECU connectors on the harness.
    The JZX100 VVTi has (4) ECU connectors. Please click on the following link for the full list 1JZ-GTE VVTi and Non VVTi adapters.  Search link: 1JZ Adapters

    This adapter supports 2JZ-VVT and 1JZ-VVT with the ETCS-i electronic throttle body.

    What's in the box

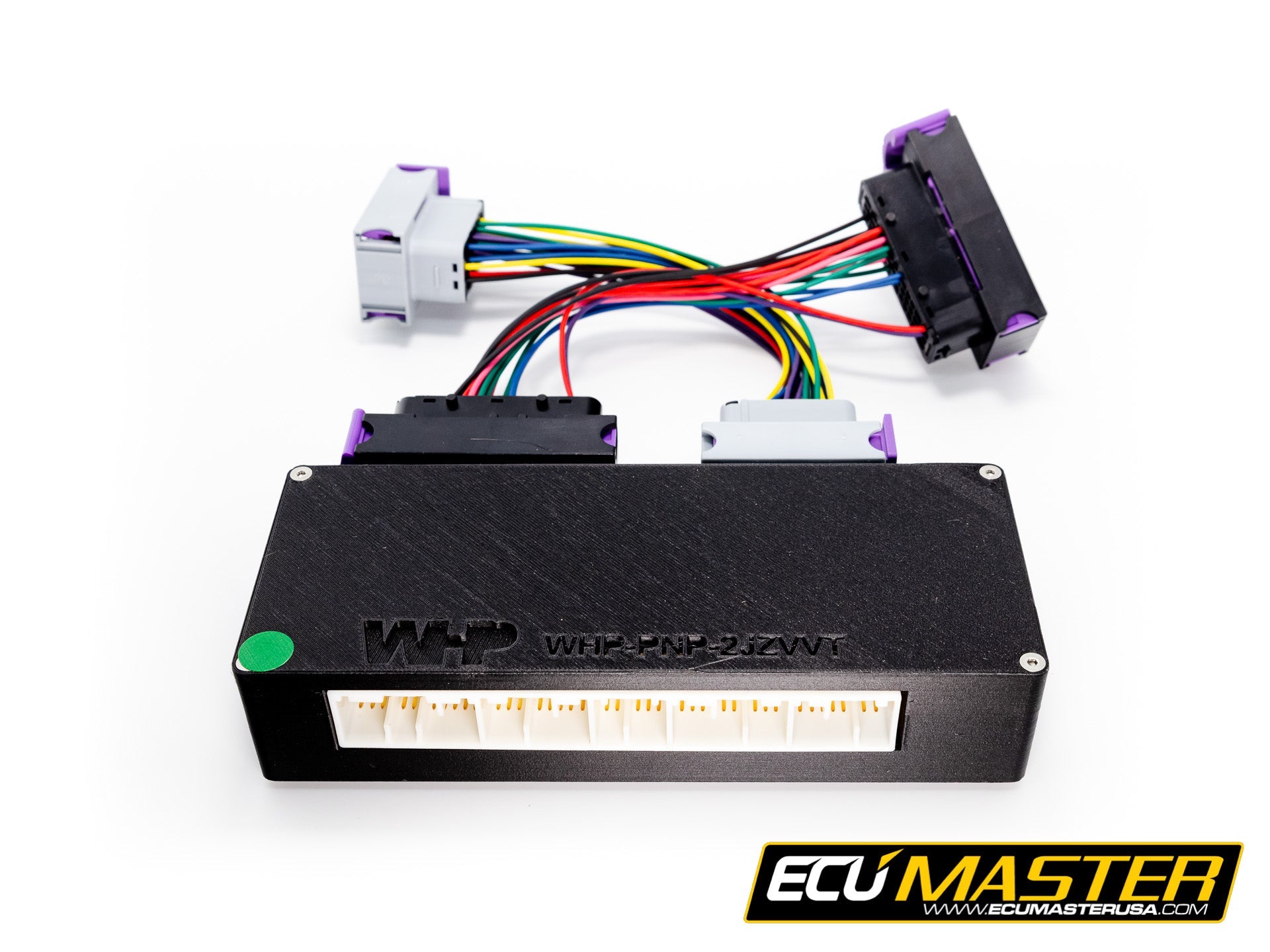

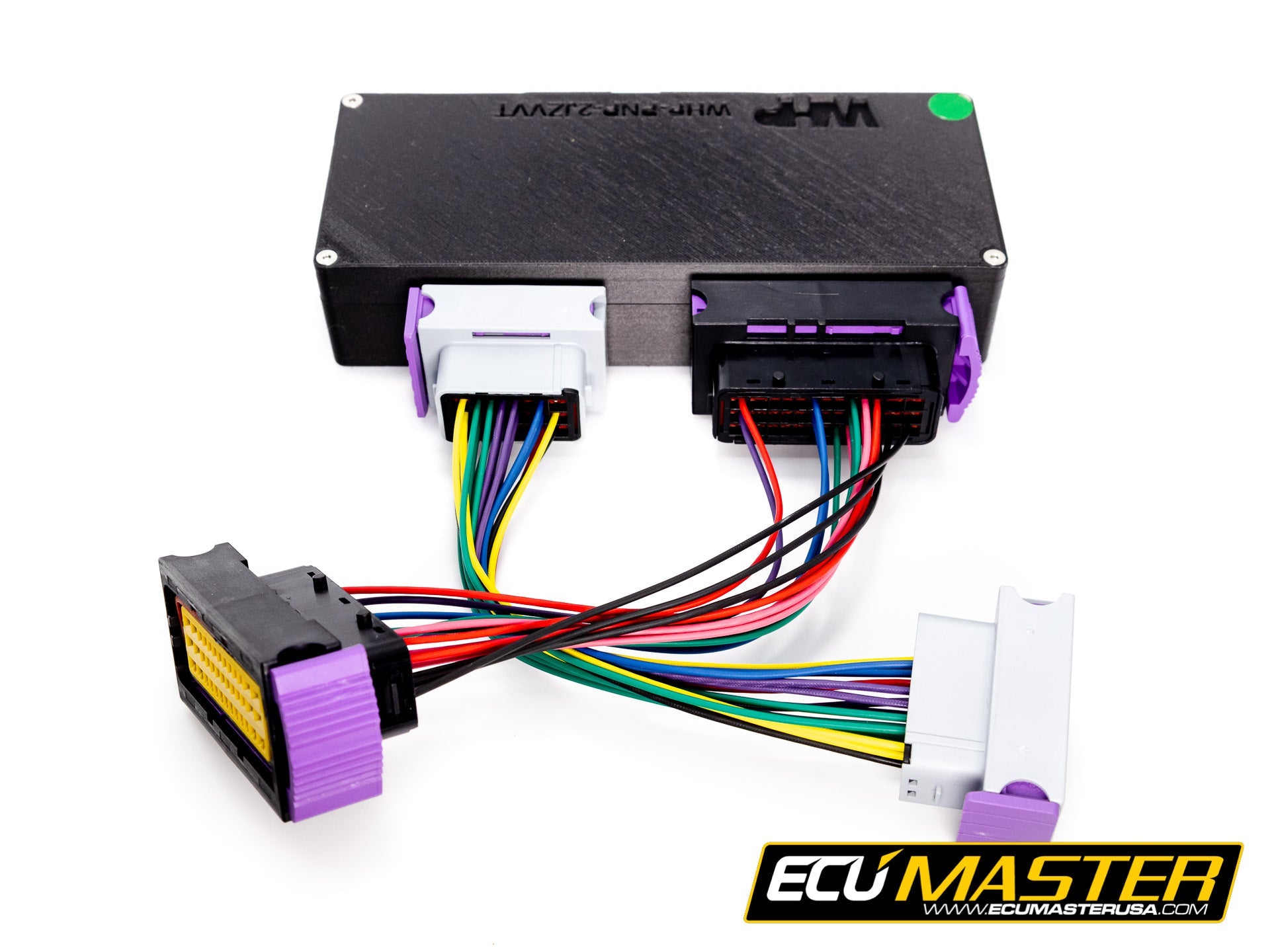

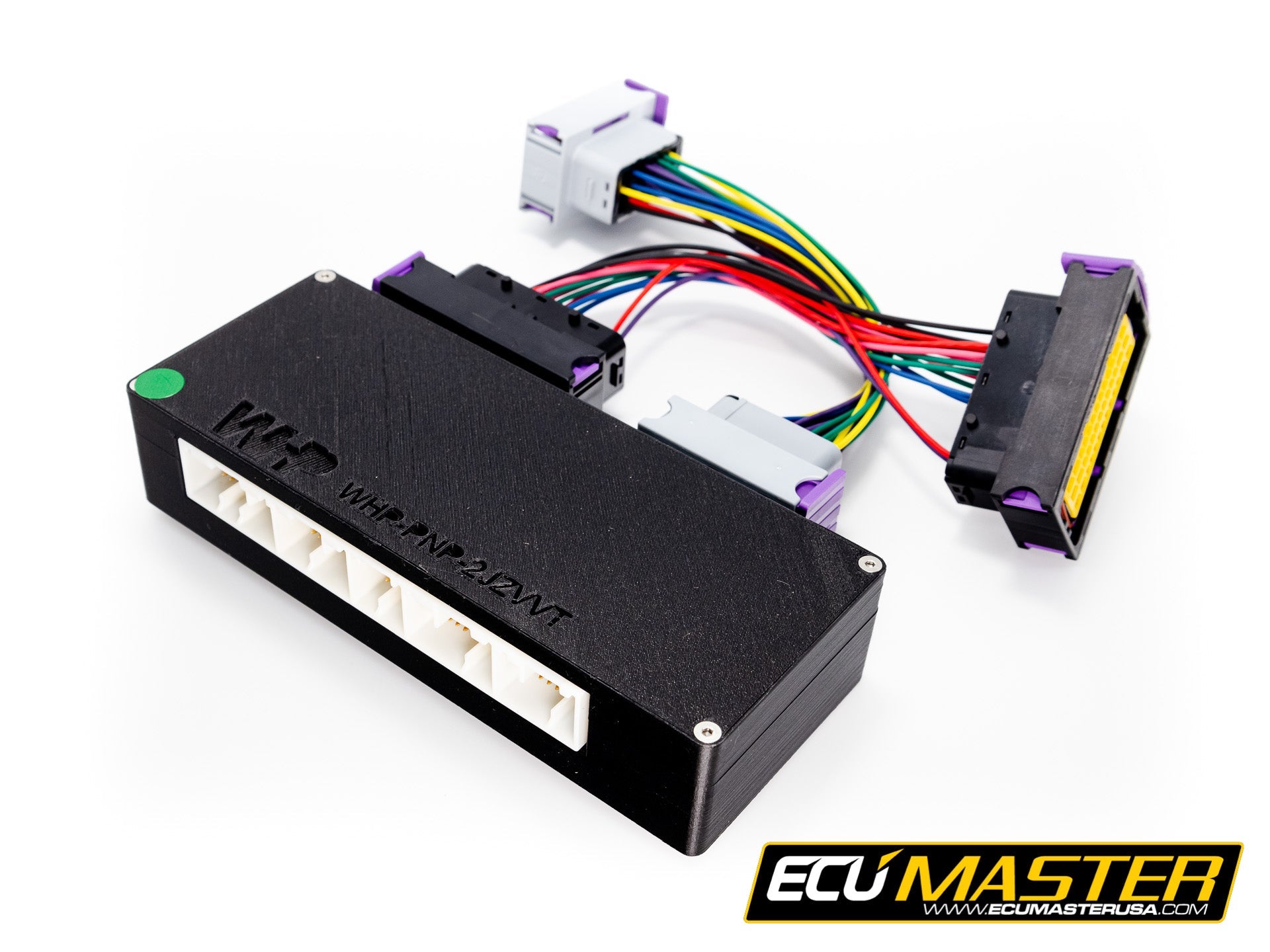

    • 2JZ-GTE VVTi JZS161/1JZ-GTE VVT (JZX110/JZS171) EMU Black Plug and Play Adapter
    • EMU/Adapter Pinout Diagram



            BASE MAP LOCATED HERE
