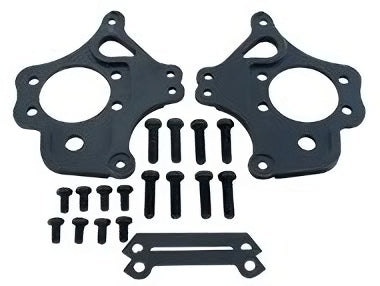

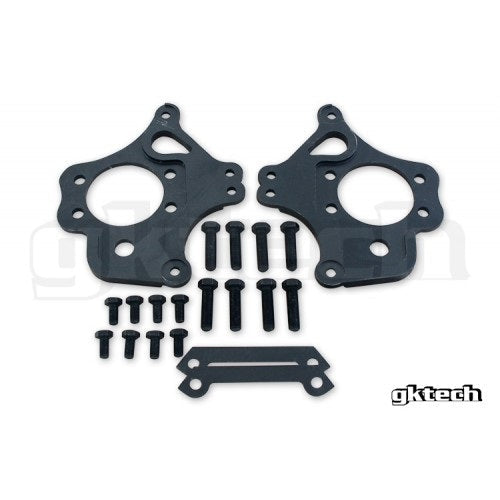

GKTech dual caliper brackets (pair) for Nissan 240SX, Skyline and Z32. Part number 2POT-BRKT.
- Spaces the hub out only 0.23" (7mm) and does not require Mustang rotors
- Keeps the factory drum e-brake working as it was, with no modifications to the drum
- Works with a pair of Z32, R32, R33 or R34 2 pot rear calipers using the corresponding rotor
- Install: cut off the standard brake caliper mounts, trim the brake dust cover to suit and shave the calipers where they butt against one another
- The 7mm hub spacing is taken up by the driveshaft. Axle spacers are suggested to put the stretch back into the driveshaft: 5mm for most setups, 10mm if the car is very low. To measure, load the suspension at normal ride height, disconnect the diff to driveshaft bolts with the driveshaft relaxed and measure the gap, allowing for the thickness of the supplied plate
-
Note: Will only fit Z32/GTR/R34 aluminum rear knuckles, with some trimming of the knuckle. For use with OEM knuckles only, NOT aftermarket knuckles.
-
Note: Will only work with Nissan 2 pot calipers and their corresponding rotor. It will not work with OEM 240SX calipers, or OEM non-turbo Skyline or Z32 calipers.
Fitment
- Nissan Z32 300ZX
- Nissan S13 CA18 180SX
- Nissan R32 Skyline GTR
- Nissan R32 Skyline GTS-T
- Nissan S13 CA18 Silvia
- Nissan S13 SR20 Silvia
- Nissan S13 SR20 180SX
- Nissan S14 200SX/Silvia
- Nissan S15 200SX/Silvia
- Nissan R33 Skyline GTS
- Nissan R33 Skyline GTS-T
- Nissan R33 Skyline GTS4
- Nissan R34 Skyline GT
- Nissan R34 Skyline GT-T
- Nissan C33 Laurel
- Nissan C34 Laurel
- Nissan C35 Laurel
- Nissan Cefiro A31
- Nissan R33 Skyline GTR
Contact us if you are unsure of fitment or Size HERE
