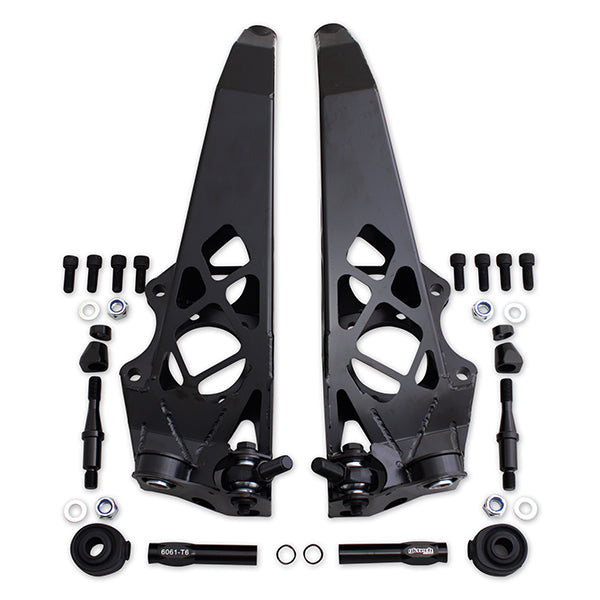

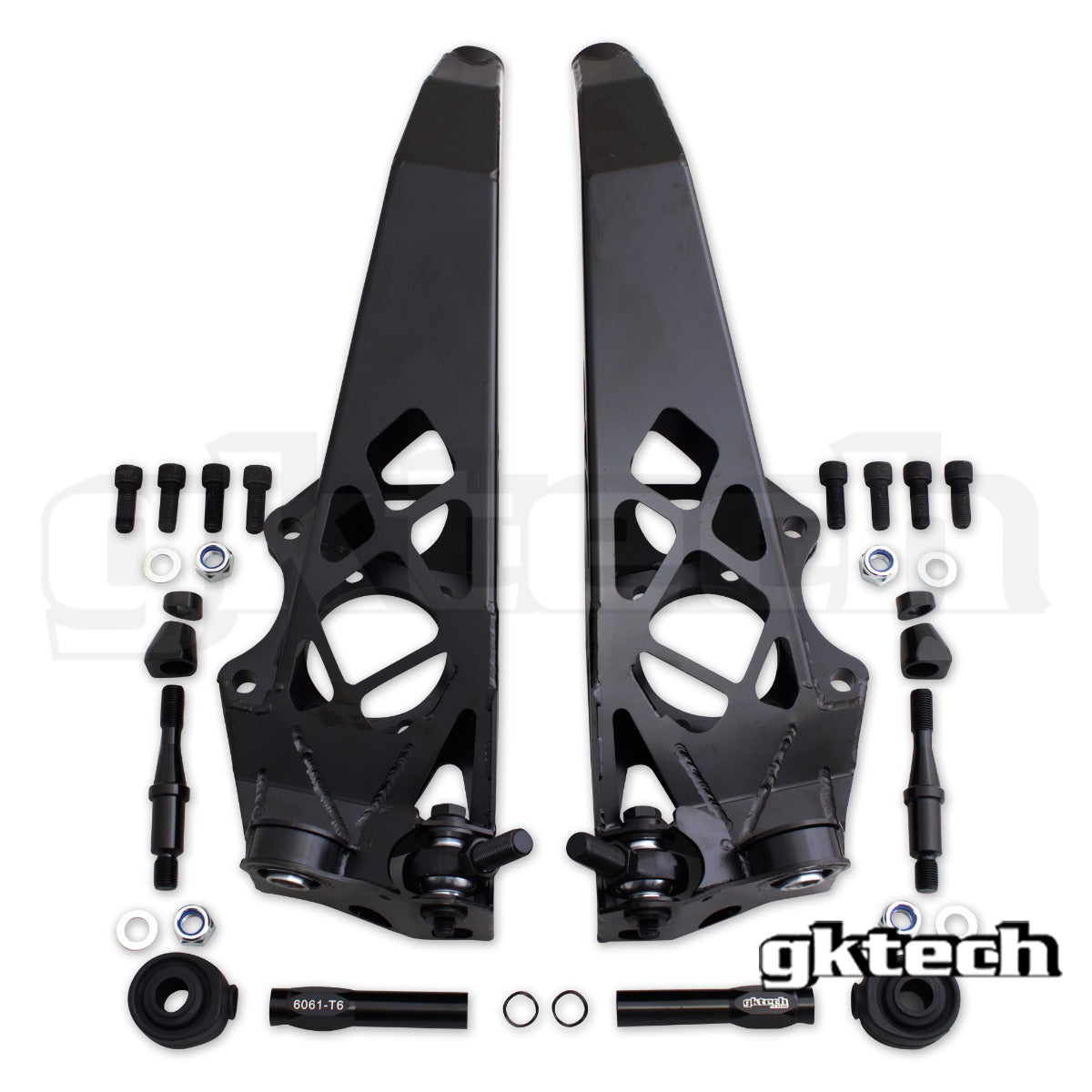

GKTech 4130 Chromoly Super Lock Drift Knuckles for the Z33 350Z and G35, part number 350Z-DKNK.
- 4130 chromoly sheet steel construction, strong and light
- Up to about 70 degrees of steering angle
- 30mm roll centre correction (ball joint height lowered)
- Tie rod pickup relocated for faster steering, reduced Ackermann and optimised bump steer
- Adjustable Ackermann (some Ackermann or parallel steering) and adjustable bump steer with spacers
- Reduced caster lowers camber change through steering angle for a flatter contact patch; added caster trail keeps self-steer
- Optimised camber gain in roll and bump
- High misalignment PTFE lined spherical bearings throughout
- Designed for aftermarket one-piece lower control arms instead of the OEM two-piece virtual A-arm
- Requires adjustable front upper camber arms with negative adjustment, and one-piece front lower control arms
- No provision for ABS
- A wheel alignment is required after installation
- Increased steering angle can trigger the dash light and VDC; the factory yaw sensor may need to be bypassed or unplugged
- Bolt-on rack spacers are recommended if you want maximum lock
- Wheel clearance: the front sway bar is the main issue; low offsets (near 0 or negative) fit best without extended front lower control arms. Examples: 17x8.5 +40, 18x9 +40, 19x9.5 +40
- Install: LCAs and compression rods come out and the arms bolt in. About 30 minutes with general mechanical knowledge; professional installation recommended
- Assembly guide included; a spanner set is all the tools needed
Fitment
- Nissan Z33 350Z
- Nissan V35 Skyline (Infiniti G35)
