    Artec Mitsubishi Lancer Ralliart 4B11T Direct Replacement Exhaust Manifold

    $1,462.99 CAD

    Delivery and Shipping

    Free Ground Shipping In Canada Over $250 Live Now! - Applied Automatically At Checkout - Freight & Oversize Excluded

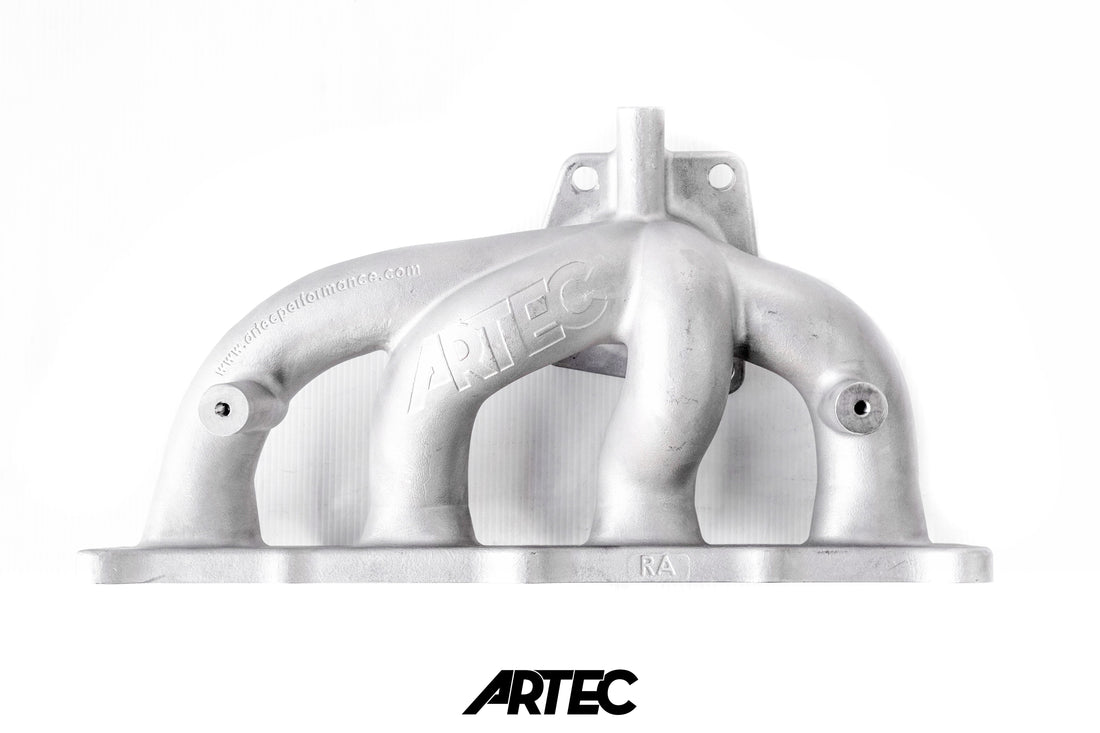

    Artec direct replacement cast stainless steel turbo exhaust manifold for the Mitsubishi Lancer Ralliart 2009-2015.

    The biggest flaw on the factory manifold is only 3 runners reaching the collector even though its a 4 cylinder. 2 runners were merging just before the tight radius in the turbo flange area. The cracks were appearing along where the y runner met the other 2 runners.

    This is because twice the hot air flows in the same diameter pipe, resulting the runner with a much greater hot spot which causes it to expand more. So where it was cracking is where the metal is moving the greatest amount.

    So when ARTEC was designing this manifold, they removed the particular hot spot by removing the restriction and/or bottle neck caused by the tight radius’ to increase flow.

    Made from 347 Stainless Steel, the runners have an inner diameter of 33mm, this combined with the longer radius’ keeps response up by reducing manifold volume, but also keep flow up.

    Features:

    Cast 347 Stainless Steel Material.
    33mm ID runners.
    Retains the use of the OEM heat shield and hardware.
    Direct replacement for factory turbo manifold.
    Application:

    Mitsubishi Lancer Ralliart 2009-2015

    All The High Quality Parts You Need, For The High Quality Project You're Building & Maintaining!

    Payment & Security

    Payment methods

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa

    Financing Payment Methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Customer Reviews

    Based on 2 reviews
    100%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    S
    Sarkis

    Thank you Boost Factory sending this Amazing High performance Manifold for My Ralliart💜💙

    T
    Teagan
    Ralliart Artec Exhaust Manifold

    Manifold was a nice piece fit right in place of the factory Manifold. Boost Factory was very responsive to questions and had a good price and went the extra mile getting gaskets for my order.

    Overall I would purchase again.
