GKTech - SR20/KA24 High Performance Engine fan - 60% more air flow - CLCH-FANX

Part Number: CLCH-FANX
Authorized GK Tech Dealer Ships from Calgary

Warehouse Icon Inventory Location: Boost Factory Calgary Canada

Stock: 1

1

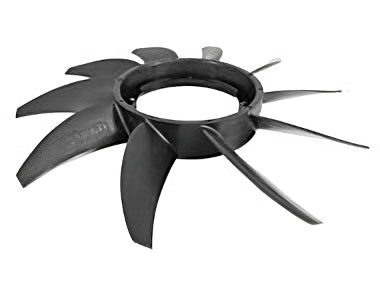

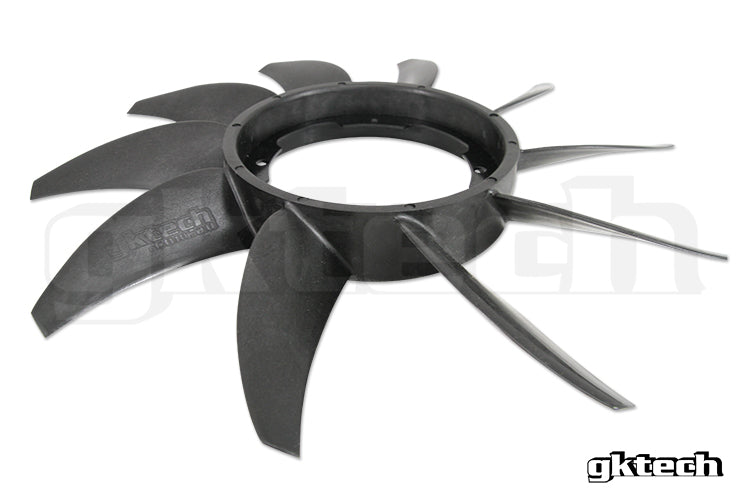

GKTech high performance engine fan for Nissan SR20 and KA24 engines. Part number CLCH-FANX.

  • Direct replacement clutch fan for SR20 and KA24 engines; remove the factory fan (4 bolts) and install the new fan
  • Pulls 60% more air than the factory SR20/KA24 fan
  • In dyno testing it took less than half the time to cool from 90 degrees C (194 degrees F) down to operating temperature
  • Diameter is 16.92" versus 16.33" for the standard fan; weight is 1.41 lbs, the same as the standard fan. Metal centre and ABS plastic fan, like the factory unit
  • Install with the fins tapering back toward the engine
  • Note: Cannot be used with Nismo engine mounts on an S13/180SX/240SX, because the mounts raise the motor about 0.78" (20mm) and the fan (0.59" / 15mm larger in diameter than the OEM SR20 fan) will hit the radiator shroud. S14/S15 with Nismo engine mounts are fine.
  • Note: Do NOT trim the fan if it comes close to intercooler piping. Leave at least 10-20mm of clearance between the fan and anything around it, as the engine moves under acceleration and braking.

Fitment

  • Nissan S13 SR20 Silvia
  • Nissan S14 200SX/Silvia
  • Nissan S15 200SX/Silvia
  • Nissan S13 SR20 180SX
