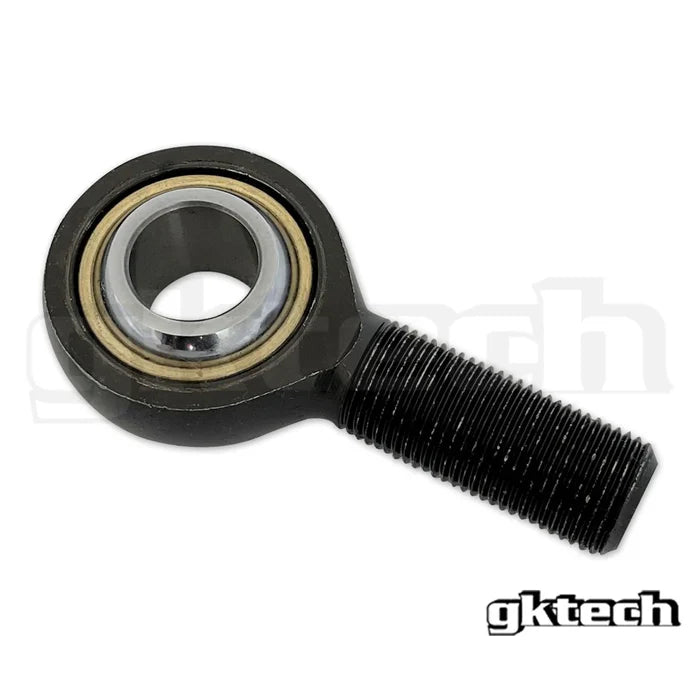

GKTech - Replacement PCMR12TS bearing - PCMR12TS

Name: GKTech - Replacement PCMR12TS bearing - PCMR12TS
Brand: GKTech
SKU: PCMR12TS
Price: 31.99 CAD
Availability: OutOfStock

Part Number: PCMR12TS

Inventory Location: Boost Factory Calgary Canada

Stock: 0

0OUT OF STOCK

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Replacement PCMR12TS bearing Used in the following GKTECH products: R32 front upper camber arms (SKU= R32X-FUCA)

IMPERIAL	METRIC
ROD END BALL BORE SIZE	ROD END BALL BORE SIZE
0.7500 in	19.0500 mm
ROD END BALL WIDTH	ROD END BALL WIDTH
0.8750 in	22.2250 mm
THREAD LENGTH	THREAD LENGTH
1.7500 in	44.4500 mm
THREAD SIZE	THREAD SIZE
3/4 - 16 UNF RH	3/4 - 16 UNF RH
ROD END HEAD DIAMETER	ROD END HEAD DIAMETER
1.7500 in	44.4500 mm
ROD END MISALIGNMENT ANGLE	ROD END MISALIGNMENT ANGLE
24 degrees	24 degrees
ROD END STATIC LOAD CAPACITY (lbs)	ROD END STATIC LOAD CAPACITY (kg)
30,290 lbs	13,739 kg
ROD END MATERIAL	ROD END MATERIAL
Chromoly	Chromoly
LUBRICATION	LUBRICATION
PTFE lined	PTFE lined

VEHICLE COMPATIBILITY

R32 SKYLINE GTR
R32 SKYLINE GTS-T
Z32 300ZX
