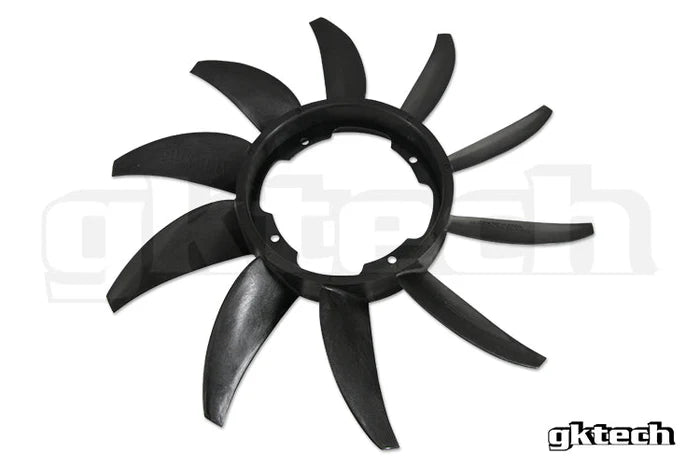

GKTech - Toyota JZX90/JZX100 1JZ High Performance Engine Fan - 50% more air flow - JZXX-FANX

GKTech high performance engine fan, part number JZXX-FANX, a direct replacement clutch fan for the Toyota JZX90 and JZX100 with the 1JZ engine.

• Direct replacement of the standard fan; removes with 4 bolts
• Pulls 50% more air than the factory JZ fan
• On the dyno, took less than half the time to cool from 90C (194F) to operating temperature
• Metal center and ABS plastic, like the factory unit
• Fins taper back towards the engine when installed
• You need to supply your own clutch pack
• Installation takes around 45 minutes. As this is a vital engine component, a trained professional is recommended
• Bolt pattern 4x148mm PCD, 164mm inside diameter. Check these match before fitting to any other chassis; fitment cannot be confirmed outside the list below

Fitment

• Toyota JZX90 (1JZ)
• Toyota JZX100 (1JZ)

Contact us if you are unsure of fitment or Size HERE
