GKTech - Super Lock Front Lower Control Arms +40mm to +70mm, 86 / BRZ / GR86 - GT86-FLCA
Inventory Location:
Manufacturer Warehouse USA
Stock: 0
0OUT OF STOCK
0

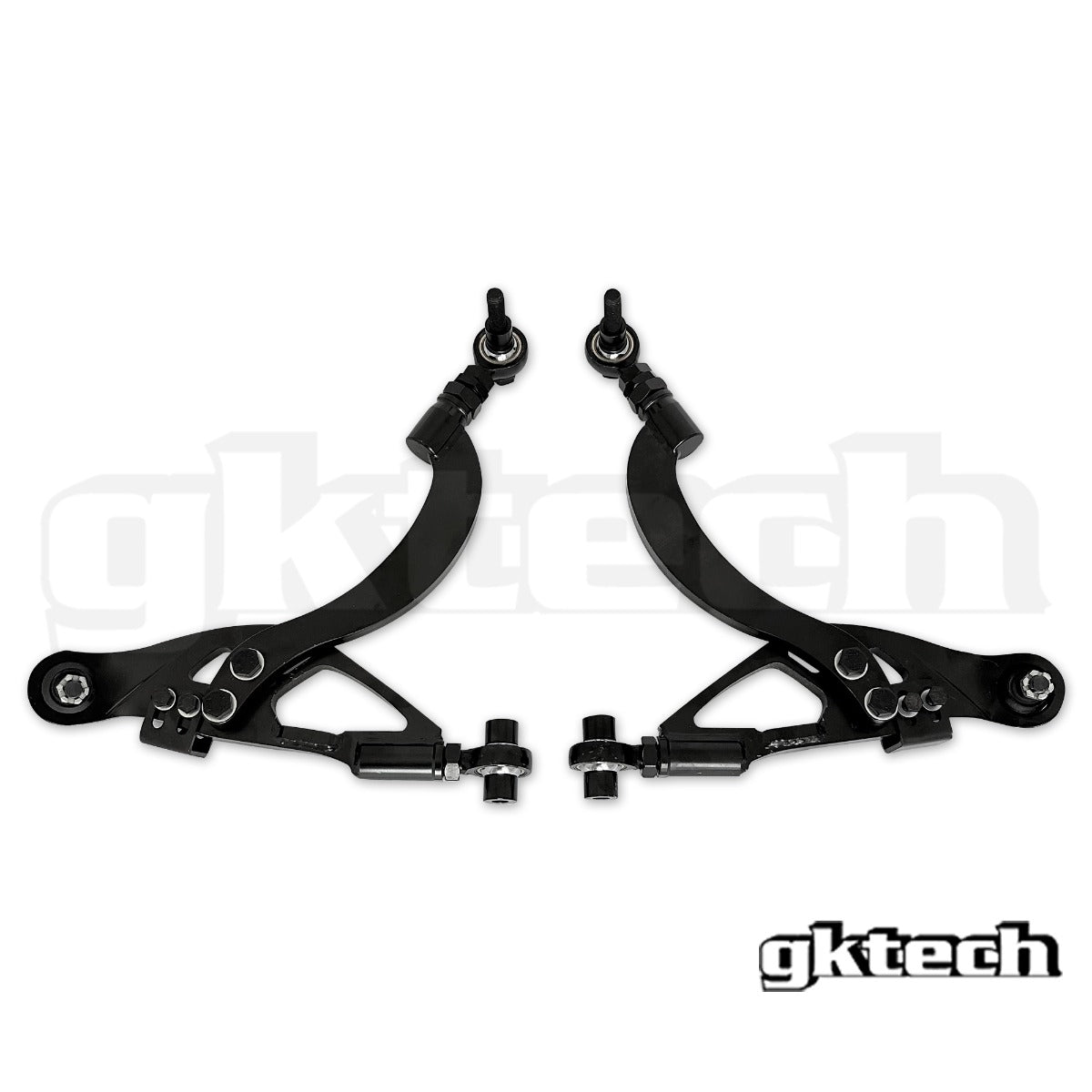

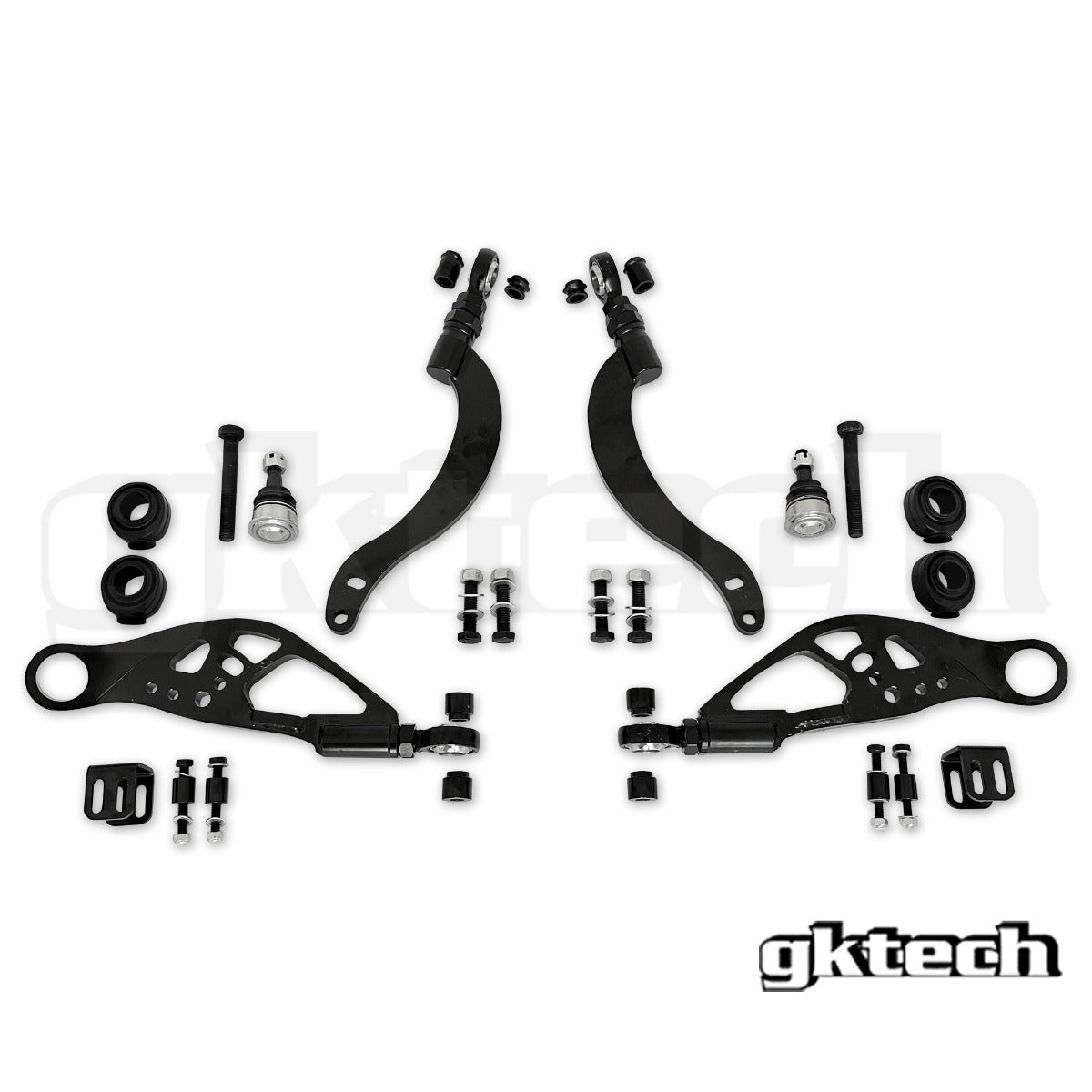

GKTech Super Lock front lower control arms, +40mm to +70mm, part number GT86-FLCA. They replace the front lower control arm and caster rods on the FR-S / GT86 / GR86 / BRZ and support around 65+ degrees of steering lock.
- Replaces the front lower control arm and caster rods
- Supports around 65+ degrees of steering lock
- Adjustable from +40mm to +70mm over OEM length (also made in an OEM length through +30mm range)
- Designed for the OEM knuckle, so they work with the GKTech bolt on steering kit that uses the OEM knuckle
- Adjustable lock stops, with dust boots included to protect the rose / heim joints
- 3 swaybar mounting positions
- On car caster adjustment: 6.75 default, 10.2 maximum, 4 minimum
- High misalignment rose / heim joints with common size PTFE bearings (PCML12TES) that can be sourced locally
- OEM style ball joint
- CMM measured, CAD designed, FEA tested, CNC machined ends
- Laser cut and bent 4130 Chromoly steel body, E-coated for rust prevention
- Suited to circuit and grip use: spherical bearings eliminate bush deflection
- Bolts straight in after removing the standard lower control arms and compression rods. Mechanical knowledge is required and recommended
- Lifetime warranty against manufacturing defects. PTFE lined rose / heim joints carry a 1 year replacement warranty
- Check your local regulations before using rose jointed arms on a street car
Note: OEM end links cannot be used with these arms. The GKTech adjustable swaybar end links (GT86-FELS) or other brands will work if you want to keep the swaybar. If you run the arms much longer than OEM, longer tie rods are needed.
Fitment
- Toyota GT86 (ZN6)
- Toyota GR86 (ZN8)
- Scion FR-S (ZN6)
- Subaru BRZ (ZC6)
- Subaru BRZ (ZD8)
Contact us if you are unsure of fitment or Size HERE
