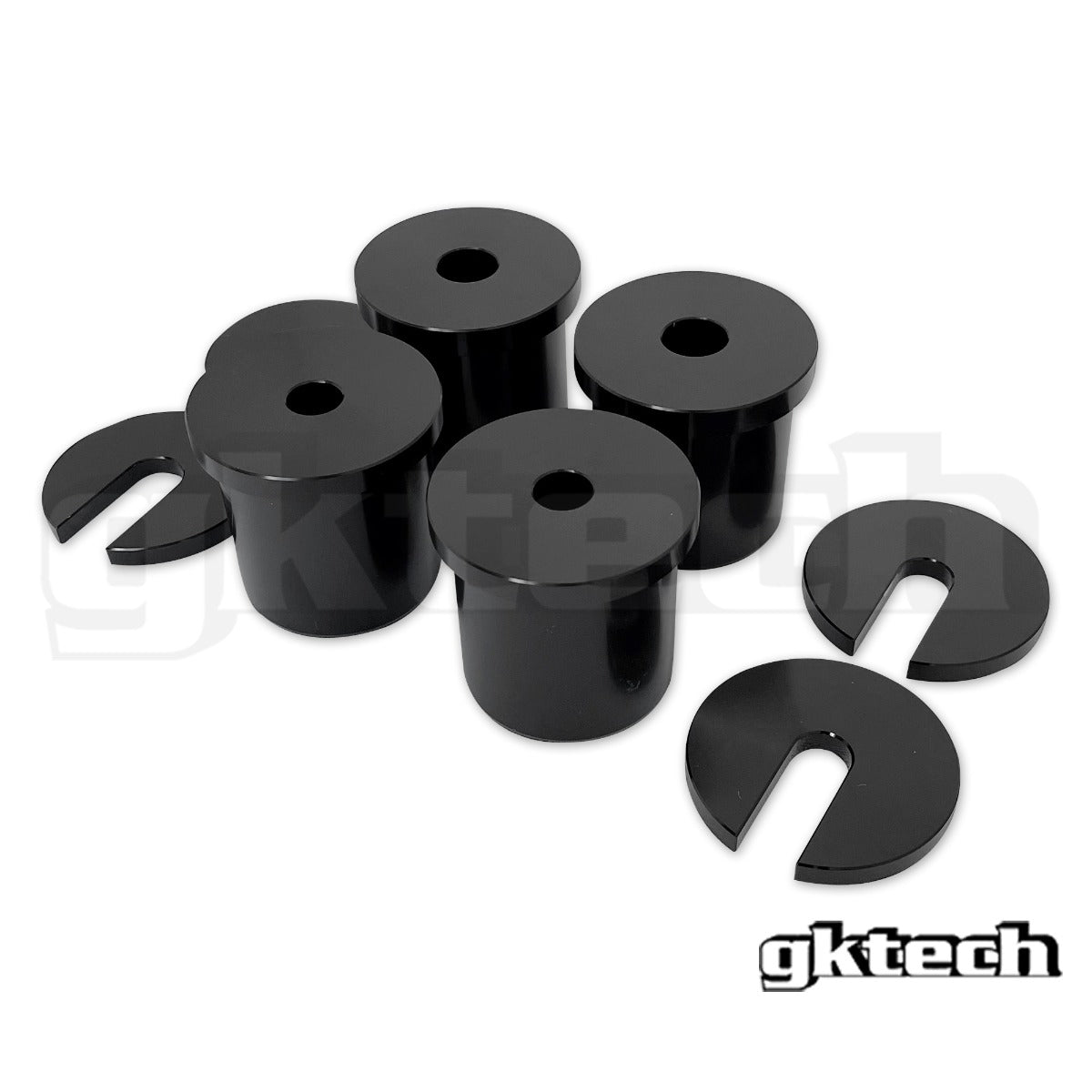

GKTech solid rear subframe bushings, part number GT86-RISR, for the Toyota GT86, Scion FR-S and Subaru BRZ.
- Direct replacement for the factory rear subframe bushings
- Keeps subframe movement to a minimum and eliminates axle tramp
- Raises the subframe to help correct the roll center on lowered cars
- CNC machined from 6061-T6 aluminum
- 4 piece set plus 4 shims to adjust roll center
- OEM hardware is reused
- Fitted from the bottom (ground) up to the top (chassis). Fitted the other way around the subframe could fall out
- Install takes about 1 hour once the subframe is out. This is a suspension component, so professional installation is recommended
- Raising the subframe changes alignment, so a wheel alignment is recommended after installation
- Solid bushings can add some noise and vibration
Fitment
- Toyota GT86 / Scion FR-S (ZN6)
- Subaru BRZ (ZC6)
Contact us if you are unsure of fitment or Size HERE
