Haltech Bosch 145 PSI Fuel/Oil Pressure & Temperature Sensor - HT-010920

Haltech Bosch 145 PSI Fuel/Oil Pressure & Temperature Sensor - HT-010920

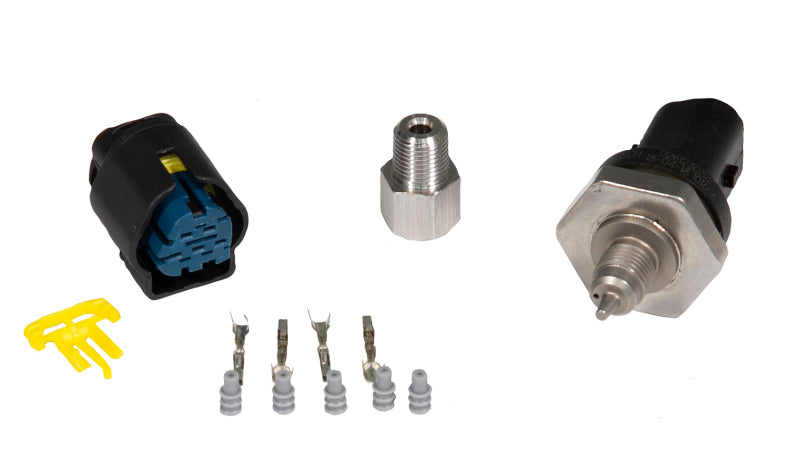

Includes: Includes: Matching plug and pins, M10 x 1.0 to 1/8NPT adaptor.

Notes: Used to measure fluid pressure and temperature Pressure Range 0-145 PSI Temperature Range -40 to 140 Deg C Supplied with adaptor to convert M10x 1.0 thread to 1/8NPT

Overview

• Suitable for Diesel, gasoline, E85, engine oil, transmission oil
• Installation Notes: Maximum permissible overpressure is 2000kpa (20 bar). The surrounding system shall be designed in such a way that potential pressure peaks in the system do not exceed the permissible overpressure of the sensor. Attention especially needs to be paid to hydraulic effects like cavitation and dynamic pressure shocks. Prevention of cavitation at the sensor shall be ensured in each operating state, not recommended for water/coolant which is significantly more susceptible to cavitation than other fluids.
• Installation torque: 37.5 ± 2.5 Nm
• Mount with orifice pointing downwards : 0 to 45° from vertical
• Supply voltage: 5.0 ± 0.25 V
