Haltech Elite 1000/1500 Mitsubishi EVO 1-3 Plug 'n' Play Adaptor Harness - HT-140830

Haltech Elite 1000/1500 Mitsubishi EVO 1-3 Plug 'n' Play Adaptor Harness - HT-140830

Suits: Plug 'n' Play replacement of the factory ECU for Mitsubishi EVO 1-3 GSR/RVR. Manual transmissions only.

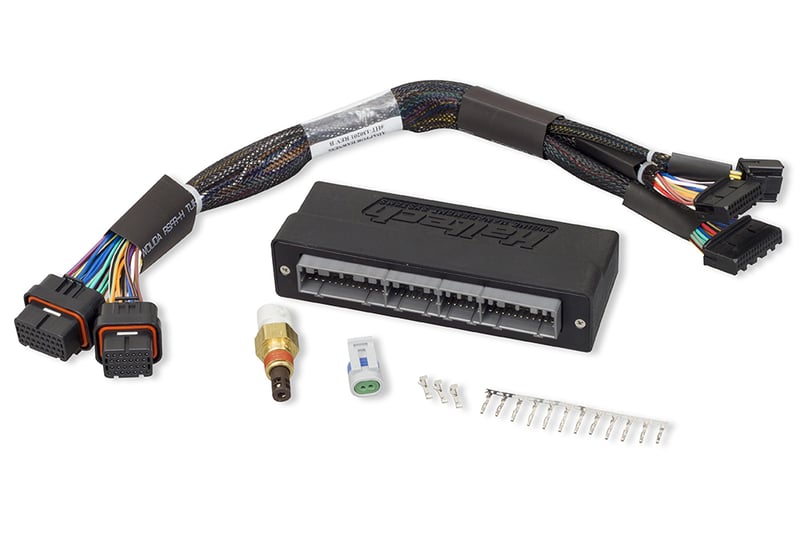

Includes: Injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.

Notes: In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.

Overview

A simple Haltech Plug'n'Play product that allows you to be up and running in just a few hours.

The quick start guide will walk you through installation of the Haltech Plug'n'Play adaptor into your vehicle.

The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.

This harness when installed in conjunction with a Haltech Elite ECU opens the door to virtually limitless performance modification and tuning of your vehicle.

Fully programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.

Downloads

• Quickstart guide
• Haltech Product Catalogue
• All manuals and downloads for HT-140830 on haltech.com
