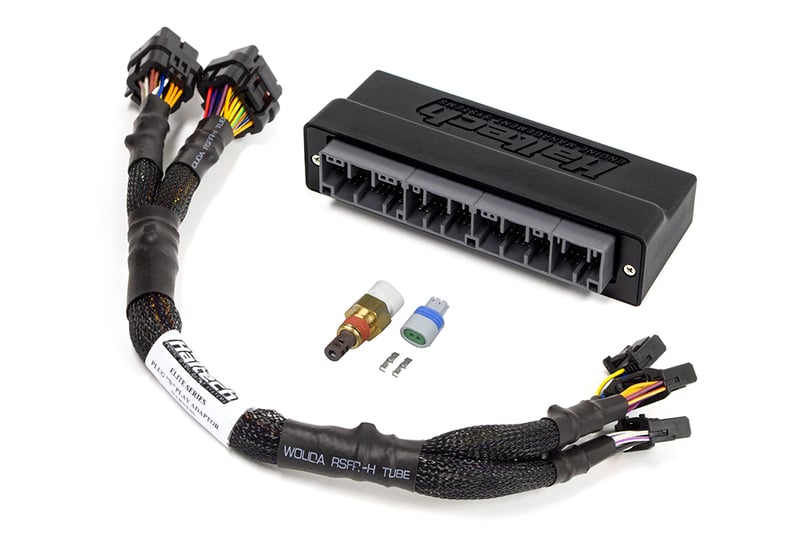

Haltech Elite 1000/1500 Plug'n'Play Adaptor Harness for Honda S2000 - HT-140843

Haltech Elite 1000/1500 Plug'n'Play Adaptor Harness for Honda S2000 - HT-140843

Suits: Honda S2000 AP1 (00-04), AP2 (05) non-DBW

Includes: Plug'n'Play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.

Notes: Non Drive-By-Wire (DBW) application only.

Overview

This adaptor plugs directly into your Haltech Elite ECU and has a set of factory connectors on the other side which plug straight into the factory harness.

A quick and easy plug'n'play upgrade solution.

A simple Haltech Plug'n'Play product that allows plugs directly into your car's factory harness.

The quick start guide will walk you through installation of the Haltech Plug'n'Play adaptor into your vehicle.

When purchased as a kit with a Haltech ECU, this product is accompanied by the full ECU manual and Software located on the CD or USB key.

• Idle Control (BAC)
• Thermofan
• Tachometer
• A/C Request and Control
• Engine Control Relay
• Fuel Pump
• Electrical Power Steering Load Detect
• Knock Sensor 1
• Coolant Temperature Sensor
• Air Temperature Sensor
• O2 Sensor Front & Rear
• Check Engine Light
• Throttle Position Sensor
• Vehicle Speed Sensor
• VTEC Oil Pressure Switch
• VTEC Solenoid
• Air Pump Relay (E1500 Only)
• Factory Map Sensor
• Alternator Control
• Brake Pedal Switch
• Electrical Load Detect
• S2000 Coolant Gauge

Downloads

• Quickstart guide
• Haltech Product Catalogue
• All manuals and downloads for HT-140843 on haltech.com
