Sale price $1,697.39 -10% Haltech 40thBirthday Sale Regular price $1,885.99
Regular price $1,697.39

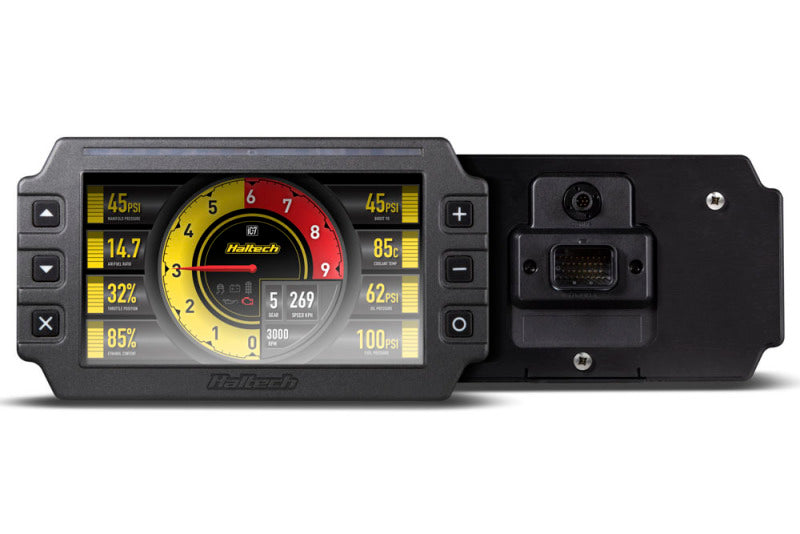

Haltech iC-7 7in Color Display Dash Kit - HT-067010

Part Number: HALHT-067010
Need a Mako dash mount for this display?

Direct bolt-in mounts that replace the factory cluster. Authorized Mako dealer, ships from Calgary. Made to order, contact us for an ETA.

View dash mount →
Authorized Haltech Dealer Ships from Calgary
Haltech 40th Birthday Sale: long ETA We place our Haltech sale order after the sale ends on Dec 7. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order. support@boostfactory.ca
Replaces discontinued:
  • Haltech IC-7 OBD-II 7in Colour Display Dash (HT-067012) - order with HT-135003 OBDII to CAN cable
Sold out for now We're restocking this one as fast as we can. Ask us for the ETA at support@boostfactory.ca.

Warehouse Icon Inventory Location: Boost Factory Calgary Canada

Stock: 0

Haltech iC-7 7in Color Display Dash Kit - HT-067010

Suits: All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following generic aftermarket ECU protocols: Link, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

Includes: Haltech iC-7 Display Dash, 34 Pin main connector harness (including spare pins for input wiring), DTM-4 to DTM-4 CAN extension cable 3.0m (118in), USB to M5 right angle cable, USB Cable, Mounting Screws, Quick Start Guide, Haltech stickers and a fabric keyring tag

Notes: OBD-II and Stand-Alone versions also available.

Overview

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.

Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.

Featuring custom screen displays,I/O sharing (for Haltech Elite & Nexus ECU's only), datalogging, auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network.

• Ideal replacement for individual analogue gauge clusters.

• Easy to install and configure.

• User adjustable brightness control with automatic dimming.

• User configurable channels, units and alarms.

• User definable Inputs & Outputs

• 9 x Analog Voltage Inputs (AVI)

• 3 x Digital Pulsed Inputs (DPI)

• 1 x Tachometer input

• 4 x Digital Pulsed Outputs (DPO)

• 14 programmable, seven colour shift light LEDs.

• On-board datalogging (512MB)

• Controlled via easily accessible, face-mounted control buttons.

• Configuration via Haltech software and USB cable.

• IP64 (Dust-tight and protected against water splashes).
