Haltech iC-7 Stand-Alone "Classic" Kit - HT-067014

Haltech iC-7 Stand-Alone "Classic" Kit - HT-067014

Suits: Carbureted or mechanically injected vehicles and/or vehicles without an ECU.

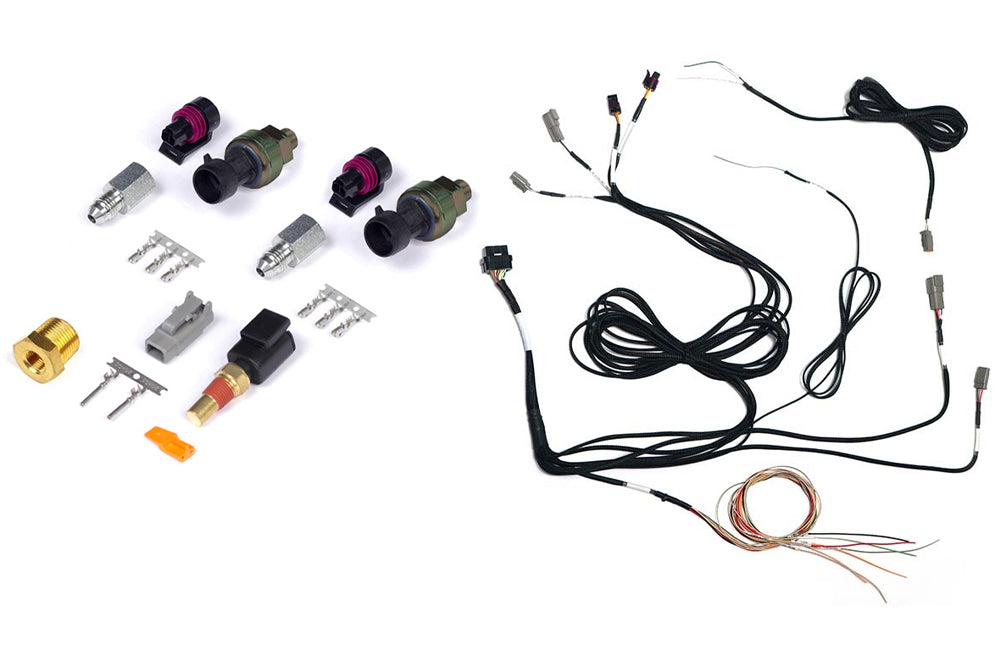

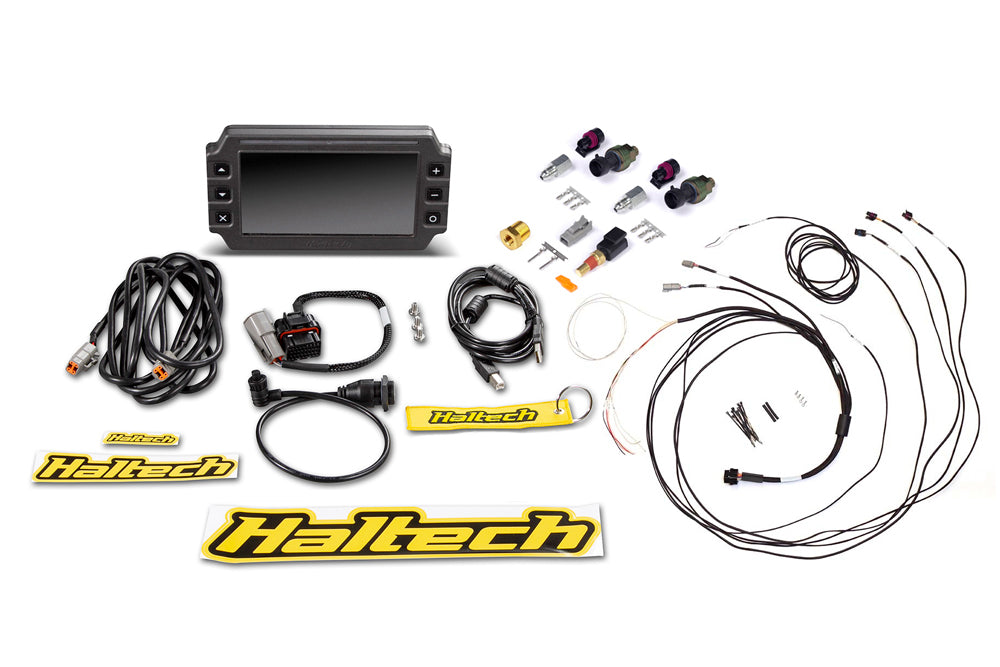

Includes: 1 x Haltech iC-7 Dash, 1 x 34 Pin main connector harness, 1 x DTM-4 to DTM-4 CAN cable 3.0m (118in), 1 x USB to M5 right angle cable, 1 x USB Cable, 1 x iC-7 Semi Terminated Harness, 1 x 1/8 NPT Coolant Temperature Sensor, 2 x 0-150 Psi Fuel/Oil Pressure Sensors, 1 x 3/8NPTF to 1/8NPTF Adaptor.

Notes: Coolant Temp Sensor - 1/8 NPT Thread. Please take care when wiring this sensor as incorrect wiring will damage this sensor! All "TI" MAP and Pressure sensors are individually electronically tested before packaging and are sold "as is" and without any further warranty. Returns of opened sensors are not accepted.

Overview

Perfect for old-school hot rods, mechanically injected muscle, carbureted classics and everything in between, the Haltech stand-alone IC-7 Classic kit is ideal for anyone looking to simplify and modernise their analogue gauge setup. Suits carbureted or mechanically injected vehicles and/or vehicles without an ECU.

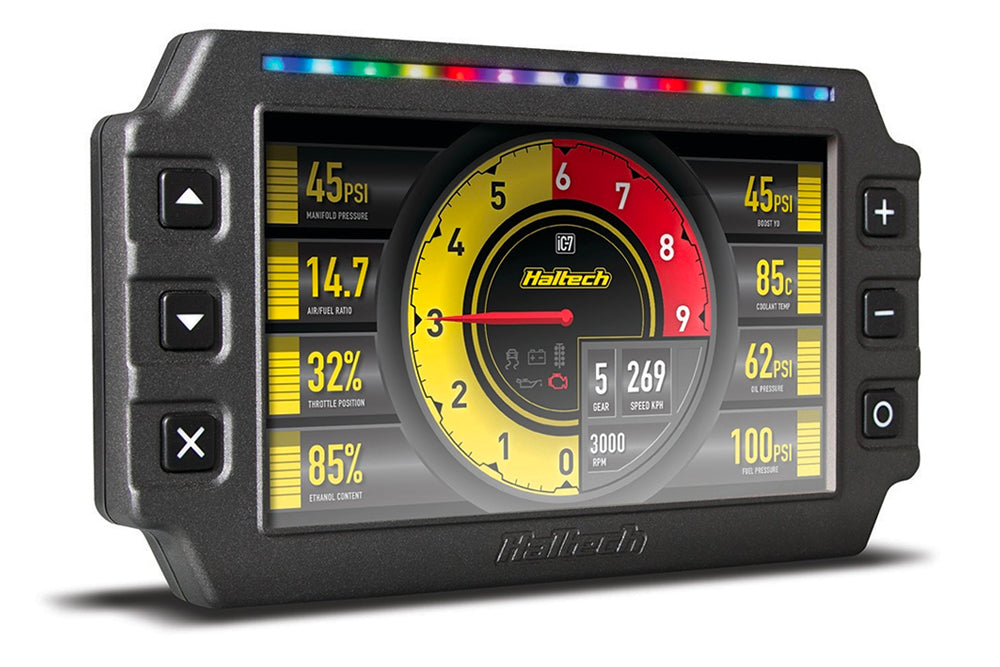

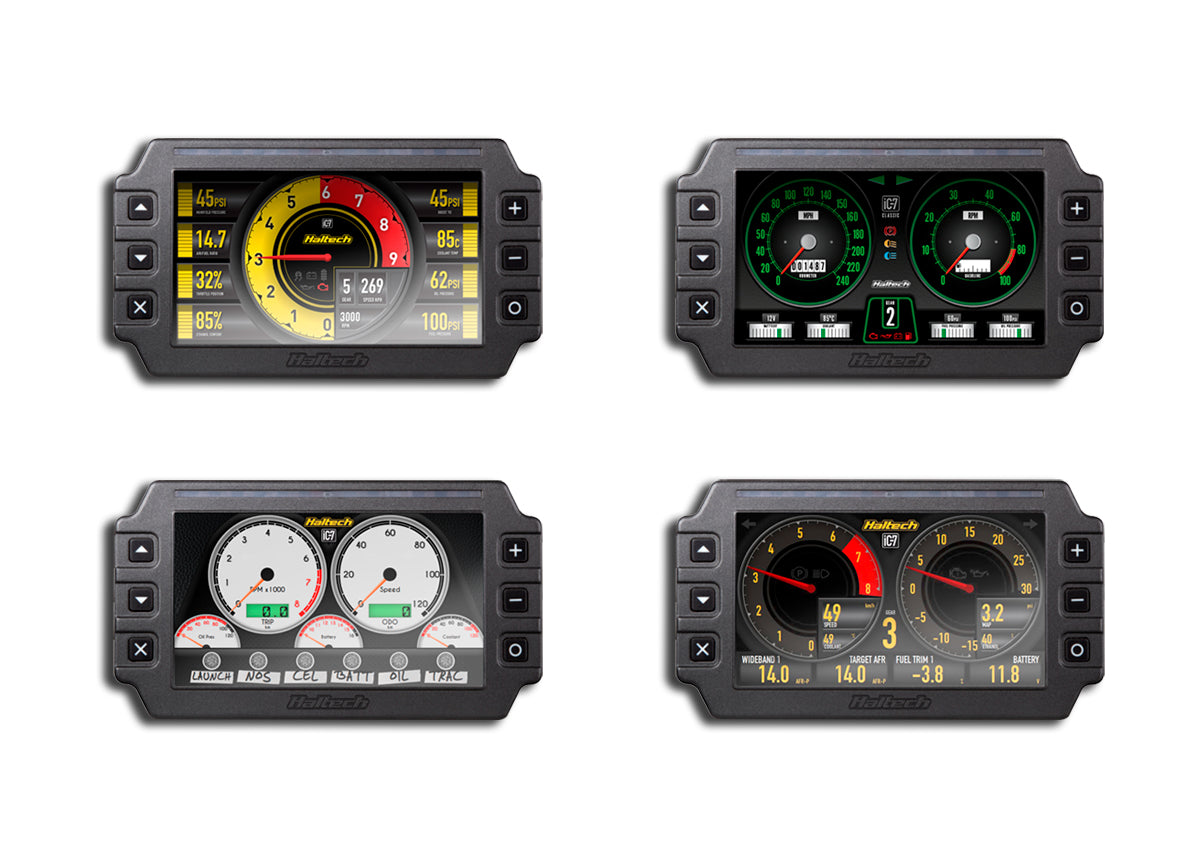

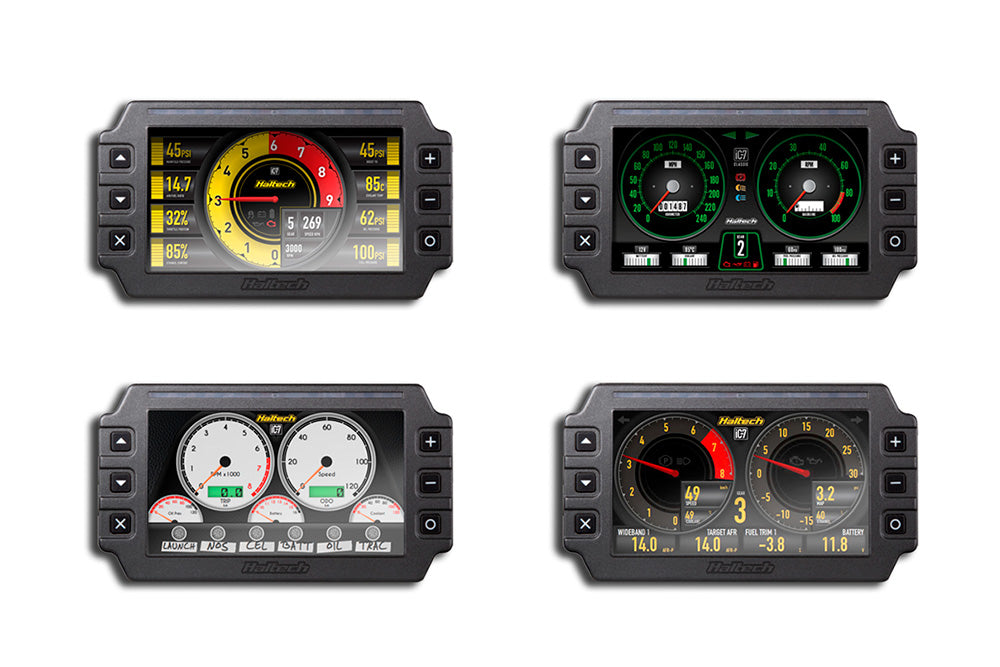

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way. Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package. Featuring custom screen displays, I/O sharing (for Haltech Elite & Nexus ECU's only), datalogging, auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network.

Features

• Ideal replacement for individual analogue gauge clusters
• Easy to install and configure
• User adjustable brightness control with automatic dimming
• User configurable channels, units and alarms
• User definable Inputs & Outputs
• 9 x Analog Voltage Inputs (AVI)
• 3 x Digital Pulsed Inputs (DPI)
• 1 x Tachometer input
• 4 x Digital Pulsed Outputs (DPO)
• 14 programmable, seven colour shift light LEDs
• On-board datalogging (512MB)
• Controlled via easily accessible, face-mounted control buttons
• Configuration via Haltech software and USB cable
• IP64 (Dust-tight and protected against water splashes)

Specifications

• Size: 7in

Downloads

• Quickstart guide
• Spec sheet
• Haltech Product Catalogue
• All manuals and downloads for HT-067014 on haltech.com
