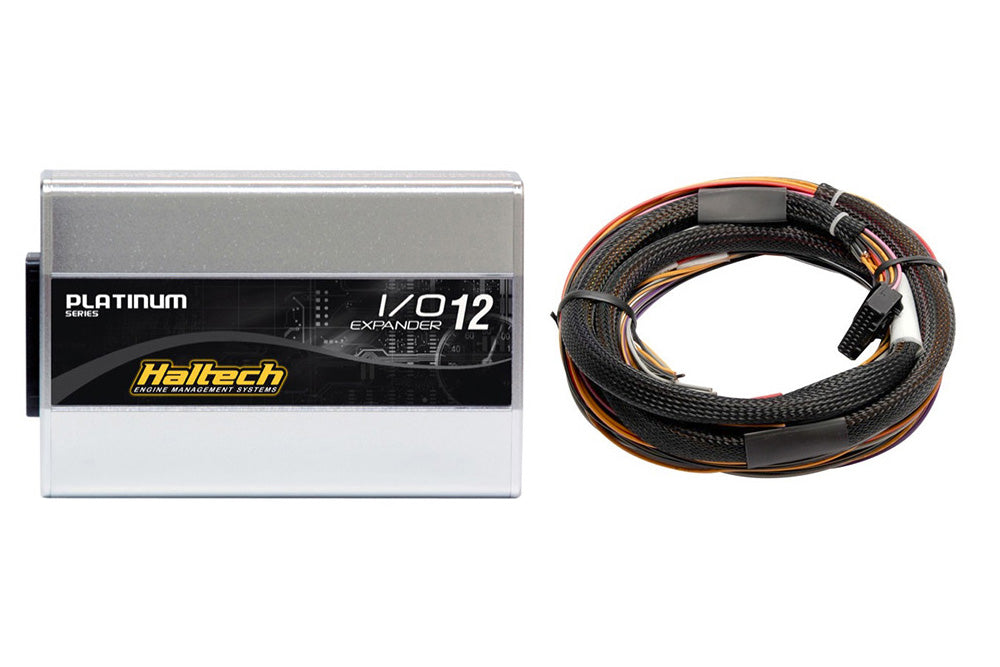

Haltech IO 12 Expander - 12 Channel with Flying Lead Harness Kit (CAN ID - Box B) - HT-059905

Haltech IO 12 Expander - 12 Channel with Flying Lead Harness Kit (CAN ID - Box B) - HT-059905

Includes: IO 12 Expander with matching flying lead harness, Elite CAN cable DTM-4 to 8 pin Black TYCO - 300mm (12")

Notes: Combine two IO 12 Expanders with different CAN Identifier ID's (Box A or B) for up to 24 additional channels (subject to ECU compatibility)

Overview

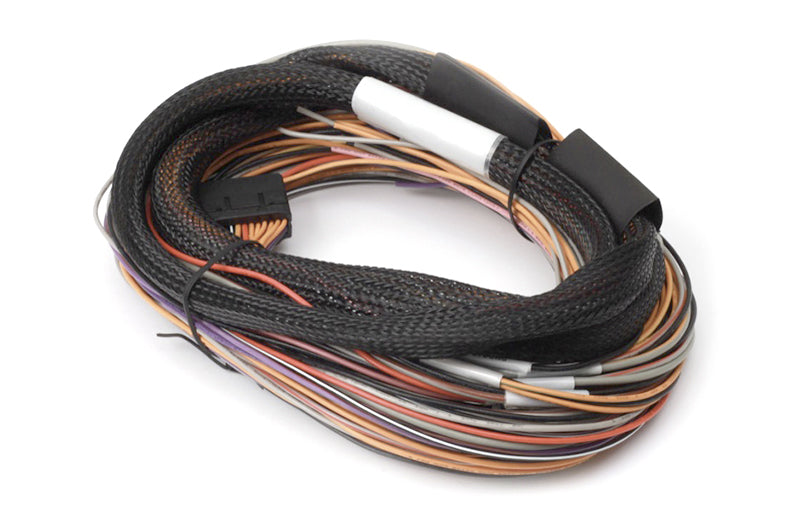

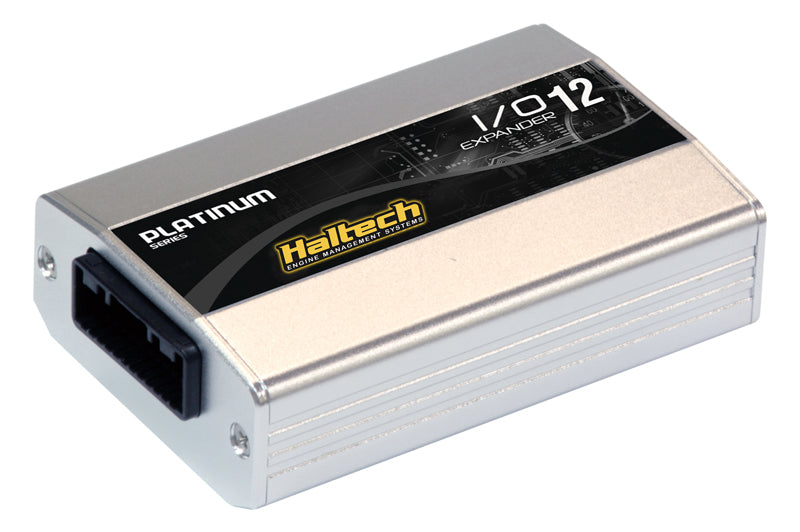

IO 12 Expander Box - 2.5m/8ft Flying Lead Harness.

As supplied this product is direct Plug 'n' Play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector or mutiple CAN device installation using an Elite 4 Port CAN HUB. If you are connecting this product with a Platinum Pro Plug-in, Sport or Sprint ECU please order a Haltech CAN Cable (8 pin Black Tyco to 8 pin Black Tyco) in a suitable length for your specific installation. If you are connecting this product with a multiple CAN device installation using a Platinum 3 or 6 port CAN HUB please order a Haltech CAN Cable (8 pin White Tyco to 8 pin White Tyco) in a suitable length for your specific installation. Cables are available from 75mm (3") to 3600mm (144").

Specifications

• Outputs: 4 Digital Pulsed Outputs (DPO), 4 Digital Pulsed Inputs (DPI), 4 Analogue Voltage Inputs (AVI)
• Harness length: 2.5m (8ft)

Downloads

• Quickstart guide
• Haltech Product Catalogue
• All manuals and downloads for HT-059905 on haltech.com
