Haltech Knock Sensor Adaptor Stud - M12 to M8 - HT-011102

Haltech Knock Sensor Adaptor Stud - M12 to M8 - HT-011102

Suits: Toyota 1JZ and 2JZ engines with M12 x 1.25 knock sensor locations

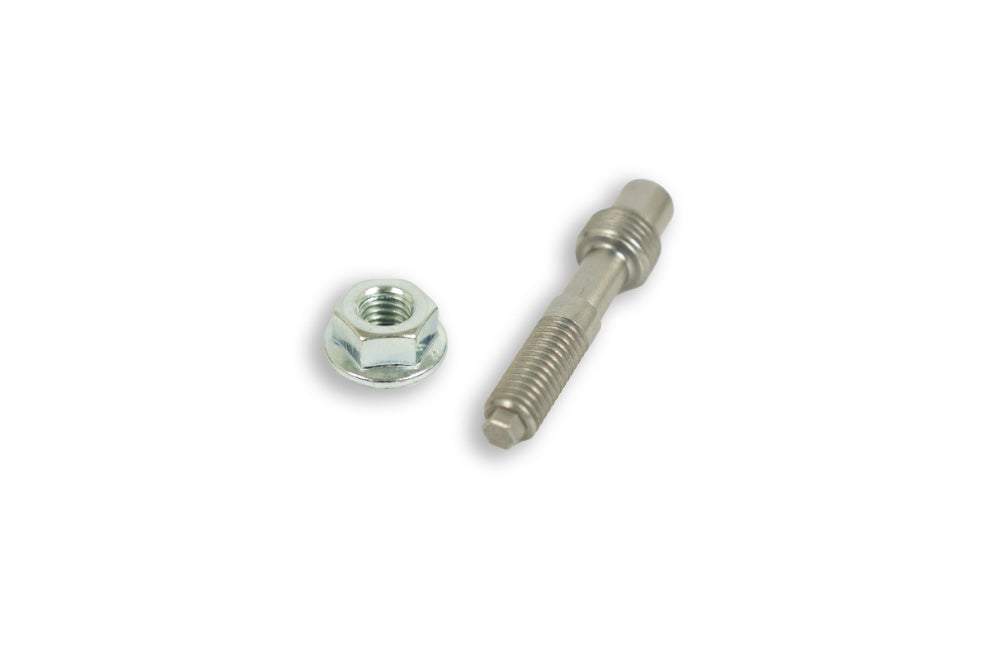

Includes: 1 x M12 to M8 Knock Sensor Adaptor Stud, 1 x M8 x 1.25 Serrated Flange Nut

Notes: Engines with 2 knock sensors require 2 units. In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.

Overview

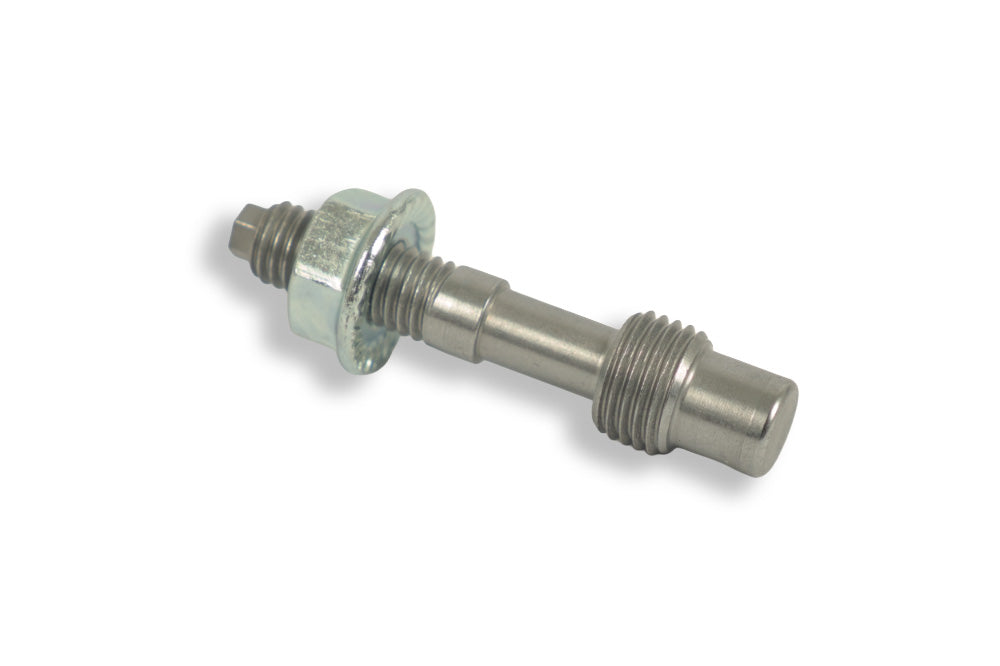

Allows M8 x 1.25 centre-bolt knock sensors, such as the Genuine Bosch Knock Sensor (HT-011100), to be fitted to engines with an M12 x 1.25 knock sensor location, including Toyota 1JZ and 2JZ engines. Heat treated alloy steel stud with included M8 serrated flange nut.

Specifications

• Converts an M12 x 1.25 knock sensor location to an M8 x 1.25 stud
• Suits M8 x 1.25 centre-bolt knock sensors, including the Genuine Bosch Knock Sensor (HT-011100)
• Suits engines with M12 x 1.25 knock sensor locations, including Toyota 1JZ and 2JZ
• Grade 12.9 heat treated alloy steel
• White zinc electroplate with nickel finish
• Includes M8 x 1.25 serrated flange nut
• Sold individually - engines with 2 knock sensors (such as JZ engines) require 2

Downloads

• All manuals and downloads for HT-011102 on haltech.com
