Haltech Nexus IO16 Input/Output Expander with Plug and Pin Kit - HT-196100

Haltech Nexus IO16 Input/Output Expander with Plug and Pin Kit - HT-196100

Includes: IO16 and Connector Kit

Notes: In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.

Overview

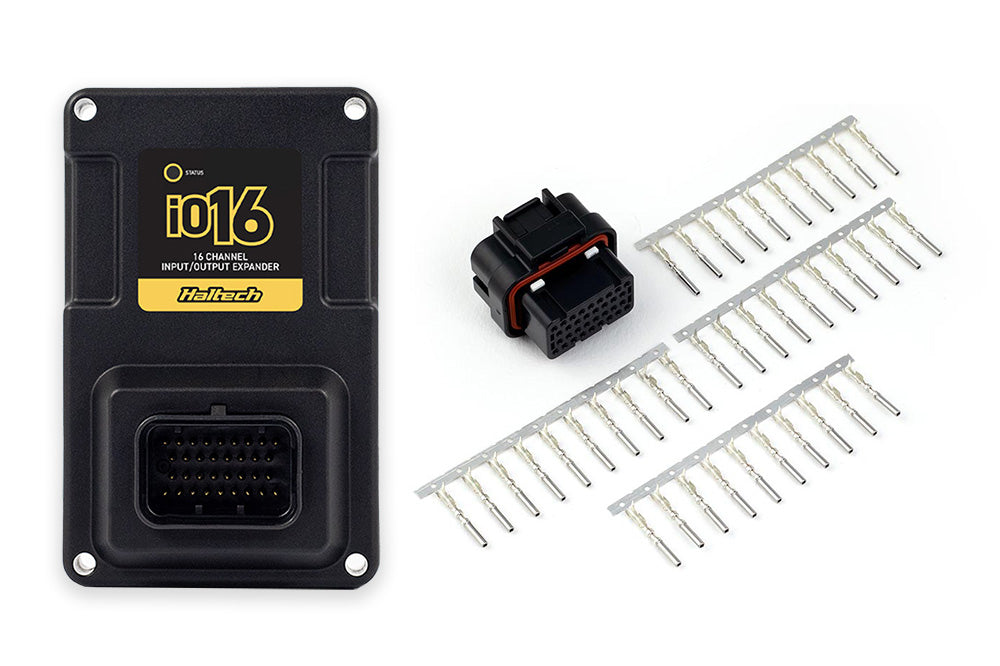

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.

Plug and Pin set compatible with Haltech Nexus products that use the Key 2 / 34 position connector.

Features

6 x Analogue Voltage Inputs (AVI)

• 0-5V readable range
• Selectable 1k pull-up resistor to 5V

4 x Synchronised Pulsed Inputs (SPI)

• Reluctor/Digital
• 0-5V readable range
• Selectable 1k pull-up resistor to 5V

Outputs

6 x Half Bridge Outputs (HBO)

• 8A current (sink/source)
• Capable of 0-100% duty cycle
• 2.2khz switching speed
• NOT suitable for DBW throttle application

WARNING - When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.

Others

• 3 x 5V output (sensor power)
• 4 x Sensor ground

Note: Any 5V and sensor ground pins can be paired when wiring sensors.

Downloads

Manuals, wiring diagrams and software for HT-196100 are on haltech.com.

Quick Start Guide (PDF)
