Haltech Nexus R3 Ford Barra Terminated Harness - HT-186405

Haltech Nexus R3 Ford Barra Terminated Harness - HT-186405

Suits: Nexus R3 VCU

Notes: In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.

Overview

Terminated Engine Harness for Nexus R3 VCU - suits the following Ford Barra engines:

• BA Series - Barra 240T (XR6T)
• BF Series - Barra 190 (NA Falcons + SY Territory), Barra 245T (XR6T)
• FG Series - Barra 270T (XR6T)

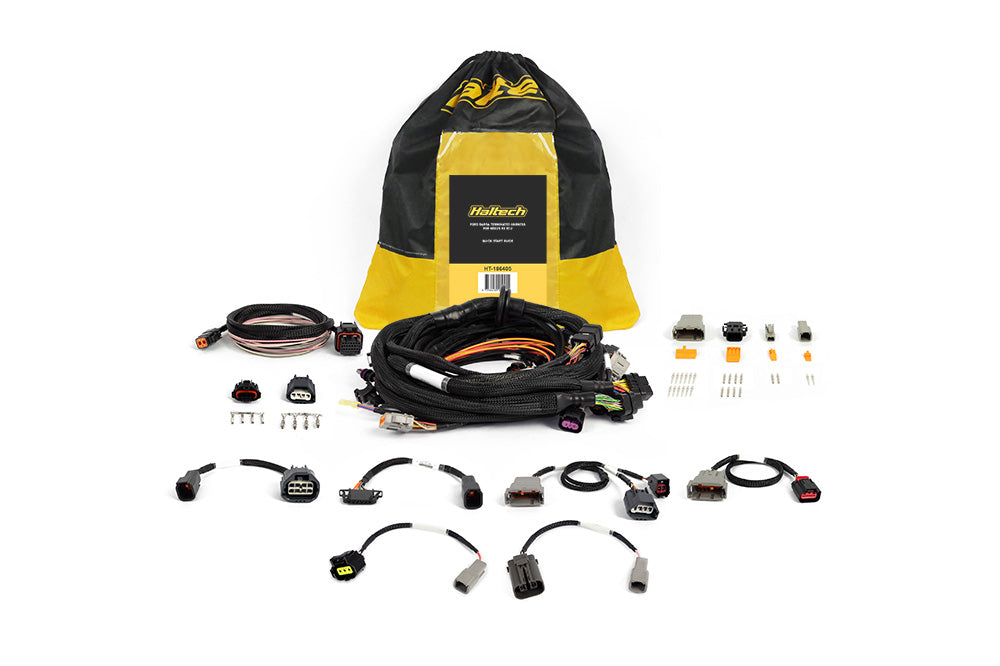

Harness includes

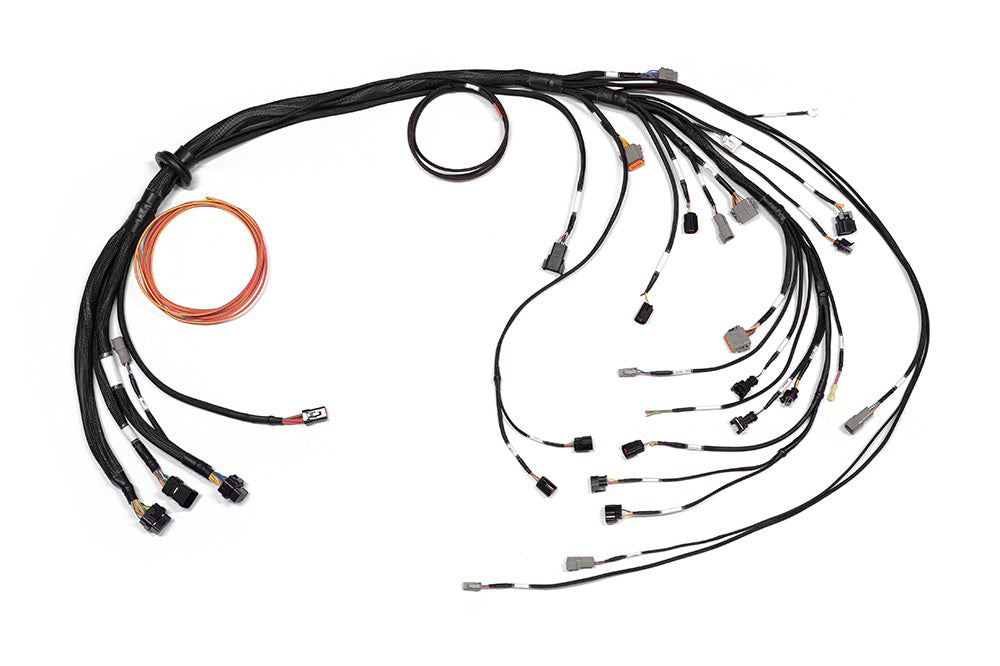

• Main terminated harness
• Ford Falcon BA/BF APP adaptor harness
• Ford Falcon FG APP adaptor harness
• Ford Barra BA/BF throttle adaptor harness
• Ford Barra FG throttle adaptor harness
• Nexus 2 pin BA alternator adaptor
• Nexus 3 Pin BF/FG alternator adaptor
• Cabin adaptor harness
• Opposing connectors and pins for boost control, TMAP, Dual intake runner solenoid, spare inputs and outputs, and transmission breakout

Note: Does not include Ignition harness, Ignition module, ignition module harness and Injector harness, these are all sold separately. If converting ignition system to R35 Coils only HT-120205 Kit is required.

Features

• Crank sensor
• Intake and Exhaust Cam sensors
• Intake and Exhaust VCT solenoid control
• BA / BF / FG electronic throttle and pedal (DBW)
• Dual intake runner system (aka Broadband throttle system)
• BA / BF / FG ignition coils (sub-harness options)
• BA / BF / FG TMAP sensors (4 pin)
• Factory AC clutch and AC pressure switch
• Alternator control (2 and 3 pin)
• Knock sensors

Aftermarket Functionality supported

(Additional sensors / parts may be required to be purchased)

• EV1, EV6(USCAR), or Sumitomo (Denso) injector connectors
• R35 COP ignition coils (requires ignition bracket and aftermarket coil stalks)
• Wideband lambda sensor - Bosch LSU 4.9
• Flex fuel sensor
• MAP sensor (ECU onboard 4 bar MAP)
• Oil and fuel pressure sensors (Delphi 3-pin)
• Thermofan control
• Fuel pump control
• Haltech boost solenoid
• Haltech CAN devices (eg dash, keypad, IO16)
• Spare IOs for additional functionality

Downloads

Manuals, wiring diagrams and software for HT-186405 are on haltech.com.

Quick Start Guide (PDF)
