Haltech Nexus R3 VCU + Plug and Pin Set - HT-193100

Haltech Nexus R3 VCU + Plug and Pin Set - HT-193100

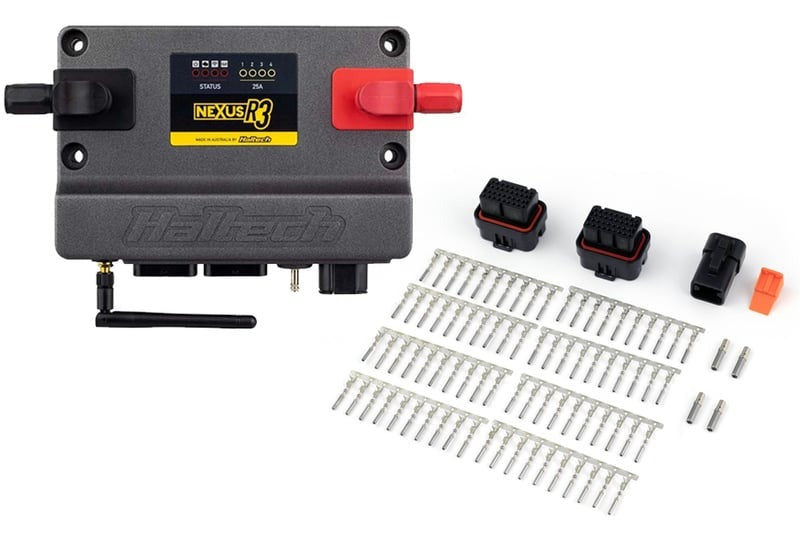

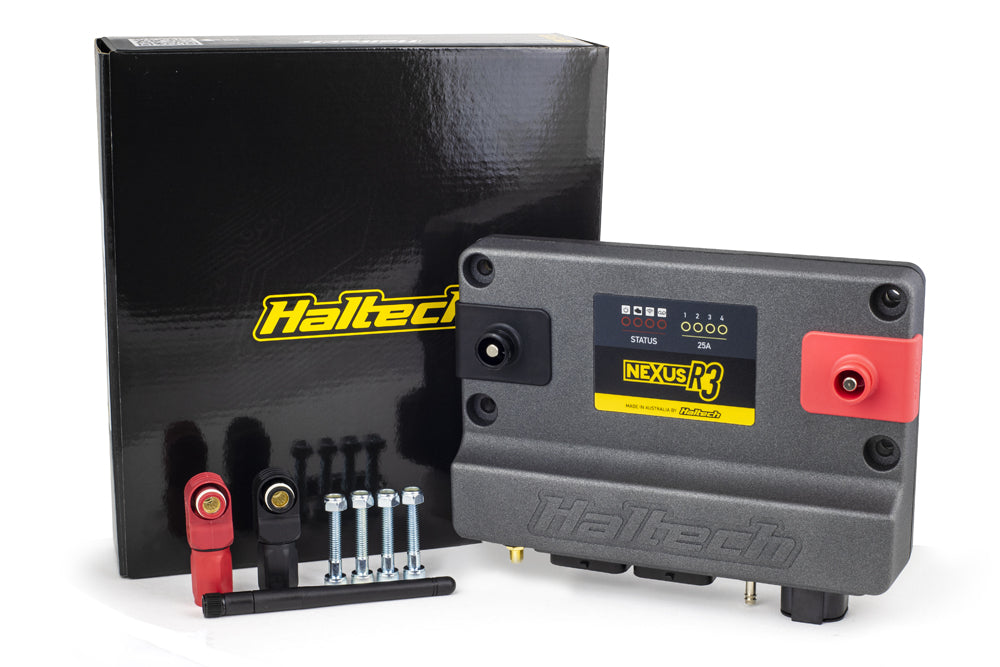

Includes: Nexus R3 VCU, AMP 34 pin key 1 and 34 pin key 2 and DTP-4 Connectors and pins

Overview

VCU Overview

Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).

• 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
• 8 x peak/hold injector drivers (can be used as low side drive outputs)
• 8 x low current ignition outputs (can be used as low side drive outputs)
• 6 x low side drive outputs, PWM capable (DPOs)
• 6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
• 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
• Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
• 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
• 1 x on-board wideband controller, supporting NTK and LSU4.9
• 1 x on-board 4 bar MAP sensor
• 2 x CAN ports with switchable termination
• Onboard data logging - Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 128MB of internal memory

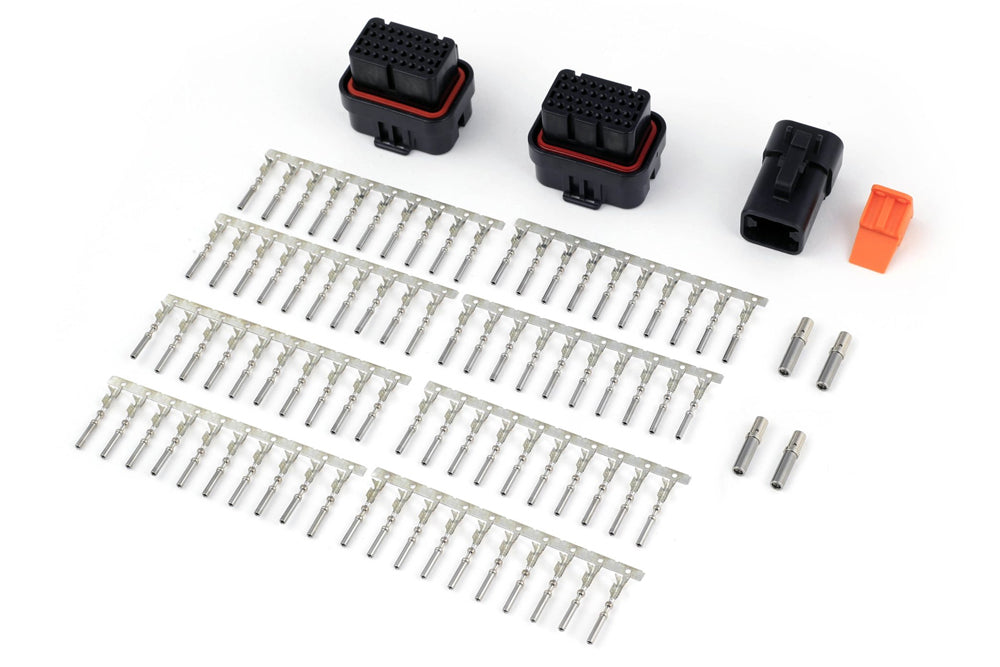

Plug and Pin Set

Plug and Pin set compatible with Haltech Nexus products that use the Key 2 / 34 position connector.

Superseal connector - 34 Pin (Key 1) Plug and Pins.

Plug and pins only - Male Deutsch DTP-06-4S - Black connector (25Amp)

Specifications

• Analog Voltage Inputs (AVI): 11
• Differential Engine Position Inputs: 2 (Trigger and Home)
• Digital Pulsed Inputs (DPI): 0
• Synchronized Pulsed Inputs (SPI): 6
• Knock Sensor Inputs: 2
• On-board Wideband Controller: 1 x NTK/LSU 4.9
• Injection: 8 (peak and hold)
• Ignition: 8
• Ignition Switch Input: 1
• Engine Control Relay output: 0
• Total Digital Pulsed Outputs (DPO): 6
• Half Bridge Outputs (HBO): 6 8A
• On-Board PDM: YES
• 25A High Current Outputs (HCO): 4
• CAN Bus Networks: 2
• MAP sensor: Internal (4 BAR)
• Inertia / G-Sensor: YES
• USB 2.0: USB-C
• Low Power Up via Cable: YES
• Wi-Fi: YES
• Compatible with Haltech Connect App: YES
• Anti-Lag/Rotational Idle: YES
• Boost Control: 4D Closed Loop
• Closed Loop O2 Control: Dual
• CO2 Control: YES
• Drive-By-Wire Throttle: Dual
• Engine Protection: Multi-Level
• Flat Shift Support: Advanced
• Flex Fuel: YES
• Intake Air Bleed Control: YES
• Knock Control: Dual
• Launch Control: YES
• Long Term Learning: Up to 4D
• Nitrous Control Stages: Up to 6
• Race Timer: YES
• Rolling Anti-Lag: YES
• Shock Travel & Ride Height: YES
• Torque Management (Driveshaft and Engine RPM Targeting): YES
• Traction Control: YES
• Trans Brake: YES
• Tuning Table Resolution: 32x32x8 4D
• Variable Cam Control: Up to 4
• Onboard storage: 128MB

What's in this kit

• 1 x Haltech NEXUS R3 VCU - HT-193000
• 1 x Haltech Plug and Pin Set - Suits Nexus R3 - HT-030013

Downloads

• Quickstart guide
• 3D Model
• Wiring Diagram
• Haltech Product Catalogue
• All manuals and downloads for HT-193100 on haltech.com
