Haltech Nexus R5 LSx Non DBW Terminated Harness - HT-186206

Part Number: HALHT-186206
Authorized Haltech Dealer Ships from Calgary
Haltech 40th Birthday Sale: long ETA We place our Haltech sale order after the sale ends on Dec 7. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order. support@boostfactory.ca

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Stock: 0

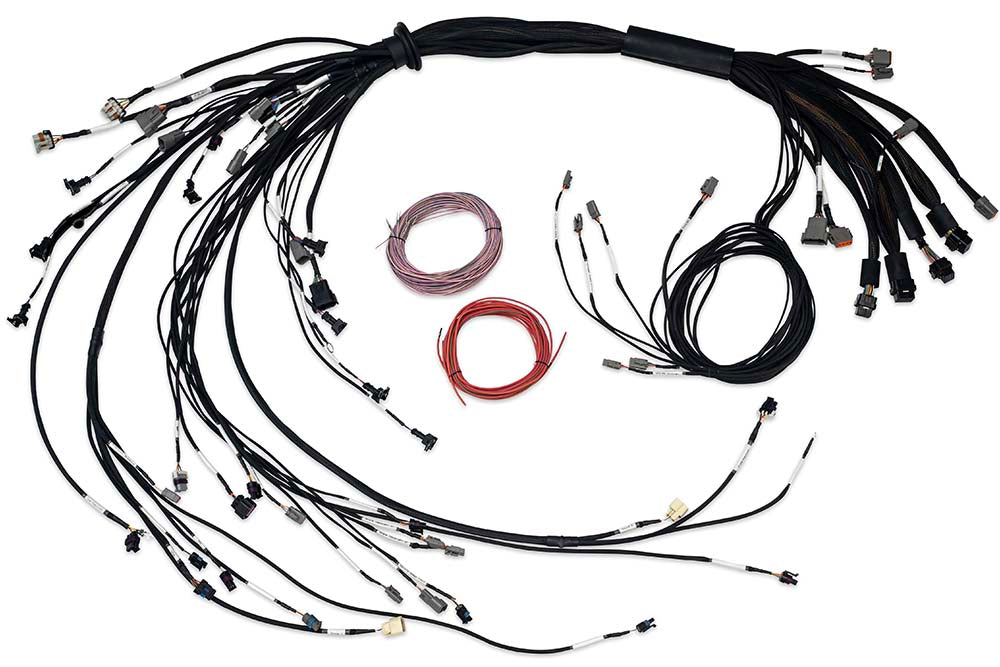

Haltech Nexus R5 LSx Non DBW Terminated Harness - HT-186206

Suits: GM LSx engines with cable throttle (non-DBW) needing a vehicle rewire with PDM functionality (Nexus R5 VCU)

Includes: 1 x HT-186206 Terminated Harness, 1 x Pack of DTM/DT connector and pin set to terminate to sensors, solenoids and other devices, 2 x DTP-2 connectors with pre-crimped 12AWG wires to use for fuel pump and thermofan, 1 x DT-8 connector with pre-crimped 18AWG wires, 1 x 2 pin Bosch alternator adaptor harness, 1 x 2 pin Yazaki alternator adaptor harness, 1 x 4 pin Delco alternator adapter harness

Notes: Plug and play with the OEM Ignition sub-harness on the engine (required).

Overview

Vehicles equipped with GM LSx engines with cable throttle needing a vehicle rewire with PDM functionality. Pre-wired to connect directly to OEM 7 Pin Coil Harness Connector.

Terminated harness suits LSx engines without DBW, incorporates PDM functionality.

  • 8 x Primary injectors (EV1)
  • Breakout plug for 8 x Secondary injectors
  • 2 x outputs available for Tertiary injection
  • Single / Dual boost solenoid control
  • Dual wideband sensor control (R5 onboard wideband controller)
  • Flex fuel sensor connection
  • Direct fuel pump control (using 25A-HCO)
  • Direct thermofan control (using 25A-HCO)
  • In-cabin breakout connector for spare inputs and outputs
  • Engine bay breakout connector for spare inputs and outputs (eg transmission control)
  • Breakout connector for PDM outputs (eg Headlights, indicators, wipers, etc)
  • Haltech CAN Bus support (DTM-4)
  • EV1 primary injector plugs.
  • Plug and play with the OEM Ignition sub-harness on the engine. (Required)

Downloads

Manuals, wiring diagrams and software for HT-186206 are on haltech.com.
