Haltech NEXUS R5 VCU - HT-195000

Part Number: HALHT-195000
Authorized Haltech Dealer Ships from Calgary
Haltech 40th Birthday Sale: long ETA We place our Haltech sale order after the sale ends on Dec 7. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order. support@boostfactory.ca
Sold out for now We're restocking this one as fast as we can. Ask us for the ETA at support@boostfactory.ca.

Warehouse Icon Inventory Location: Boost Factory Calgary Canada

Stock: 0

Haltech NEXUS R5 VCU - HT-195000

Outputs: Up to 18 injector and 12 ignition

Suits: Engines with up to 12 cylinders or up to 6 rotors. Racing applications where advanced race features, data logging and power management control is required.

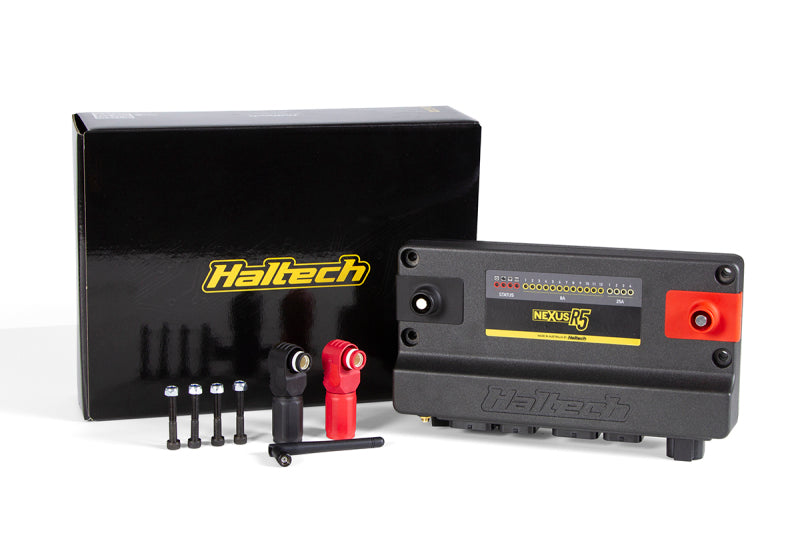

Includes: Nexus R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap.

Overview

Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).

  • 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
  • 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
  • 18 x peak/hold injector drivers (can be used as low side drive outputs)
  • 12 x low current ignition outputs (can be used as low side drive outputs)
  • 8 x low side drive outputs, PWM capable (DPOs)
  • 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
  • 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 2 x onboard wideband controllers, supporting NTK and LSU4.9
  • 3 x CAN ports with switchable termination
  • Onboard data logging - Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 512MB of internal memory

Features

  • Controlled via NSP (Nexus Software Programmer)
  • Long Term Learning
  • Stepper Motor Control
  • 4D Closed Loop Boost Control
  • Closed Loop CO2 Control
  • Rotational Idle
  • Launch Control
  • Traction Control
  • Anti-Lag
  • Dual Knock Control
  • Trans Brake Control
  • Race Timer
  • Multi Stage Fuel Injection
  • Multi-level Engine Protection
  • 6 Stage Nitrous Control
  • 4-sensor variable cam control
  • Intake Air Bleed Control
  • Flat Shift Control
  • Shock Travel & Ride Height Control
  • Advanced Torque Management
  • On-board Wi-Fi

Automatic Transmission Control

  • Ford AODE/4R70W
  • GM 4L60E
  • GM 4L80E
  • Toyota A340E
  • Lenco
  • Liberty
