Haltech Nexus Rebel LS - Suits Gen III - HT-220201

Haltech Nexus Rebel LS - Suits Gen III - HT-220201

Suits: Gen III LS - Cable throttle, EV1 Injectors, Manual Transmission

Includes: HT-220001 Rebel ECU, HT-186500 Main Harness, HT-186504 Cable Throttle + IAC sub-harness, HT-186501 LS EV1 Injector Sub-Harness, HT-187003 T56 Transmission Harness, HT-186123 2 Pin Bosch Alternator Harness, HT-186124 4 Pin Delco Alternator Harness, HT-186125 2 Pin Yazaki Alternator Harness, HT-186508 Gen III Knock Sensor Adaptor, Sensor Pack (Bosch LSU 4.9 Sensor, weld on fitting for O2 Sensor, Air Temperature Sensor M14 x 1.5, weld on fitting for Air Temp Sensor)

Notes: Supports High Impedance injectors only

Overview

With the Rebel LS, all the hard work is done. It is the best, quickest, and easiest way to get your LS-swap up and running!

The ECU was engineered specifically for GM's popular LS engine platform. Installation is streamlined thanks to the LS Set-up Wizard integrated into the NSP software. The package includes a pre-assembled harness compatible with multiple GM LS applications and integrates seamlessly with Haltech dashes, PDMs, sensor kits, and accessories. This kit supports Gen III engines equipped with cable throttle systems.

Kit Includes

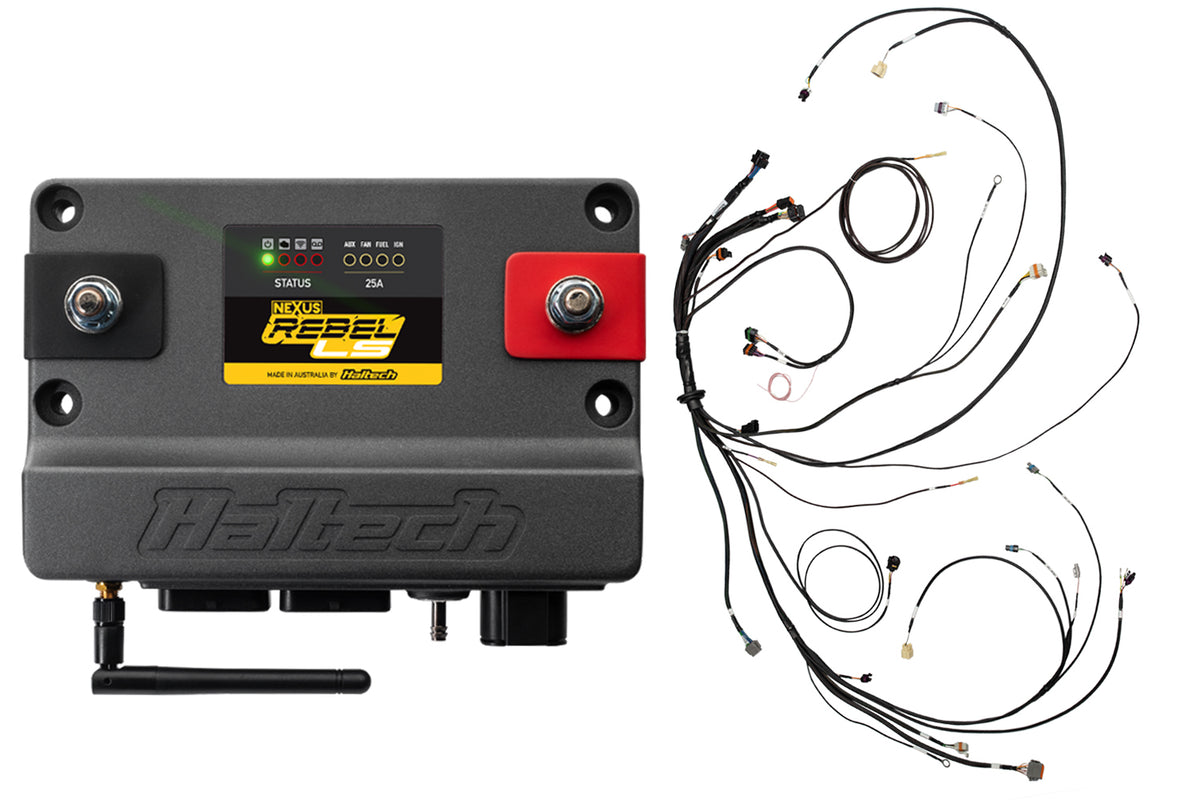

• HT-220001 - Rebel ECU
• HT-186500 - Main Harness

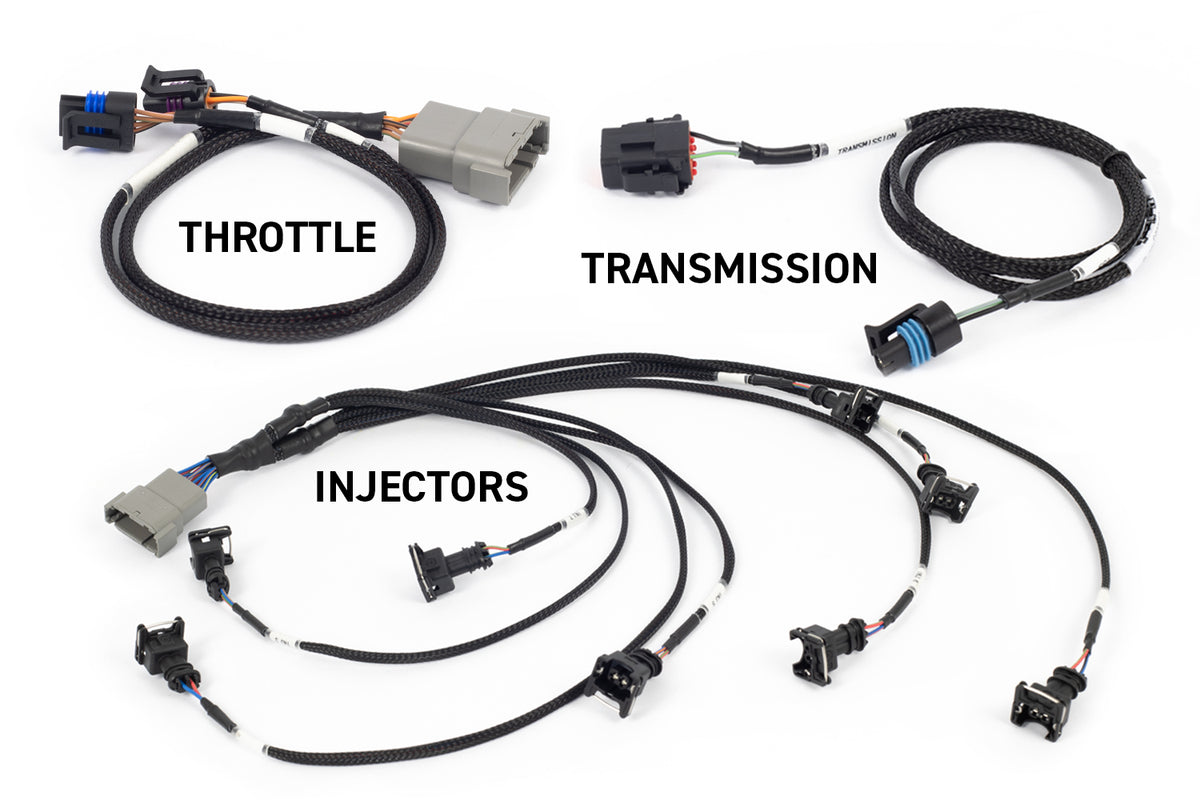

• HT-186504 - Cable Throttle + IAC sub-harness
• HT-186501 - LS EV1 Injector Sub-Harness
• HT-187003 - T56 Transmission Harness

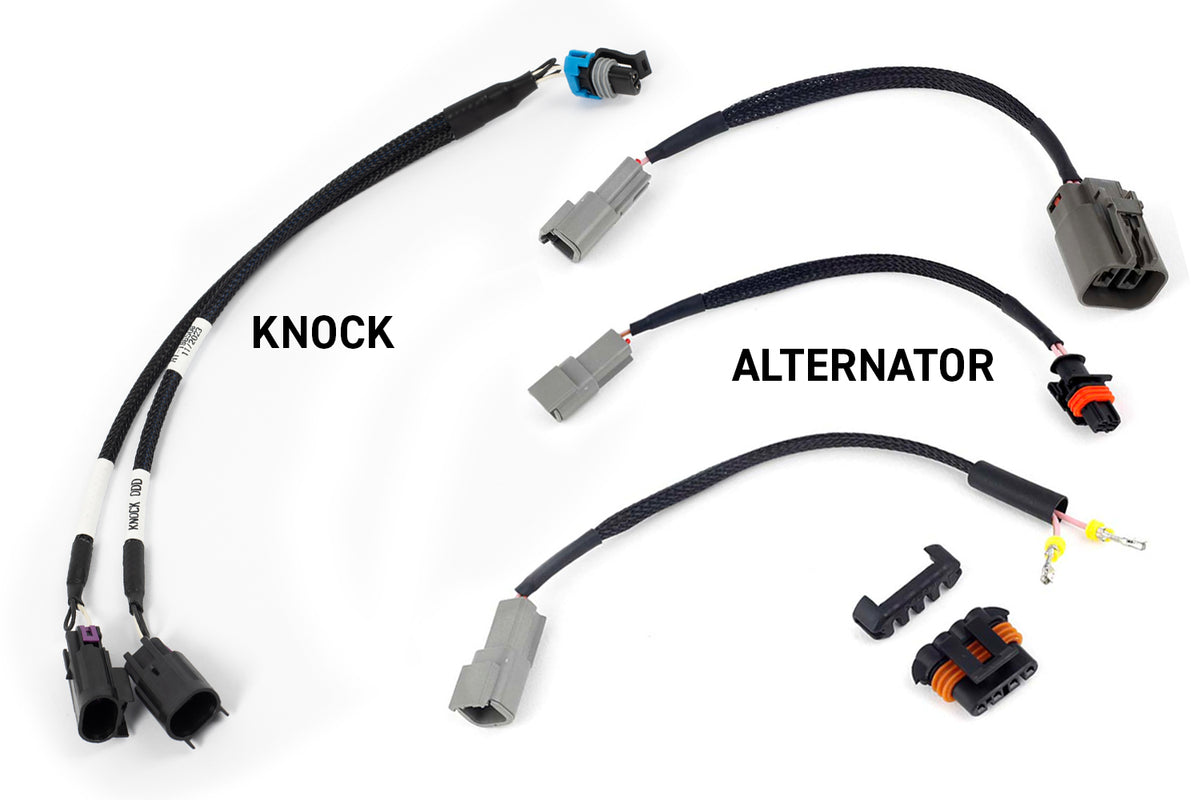

• HT-186123 - 2 Pin Bosch Alternator Harness
• HT-186124 - 4 Pin Delco Alternator Harness
• HT-186125 - 2 Pin Yazaki Alternator Harness
• HT-186508 - Gen III Knock Sensor Adaptor

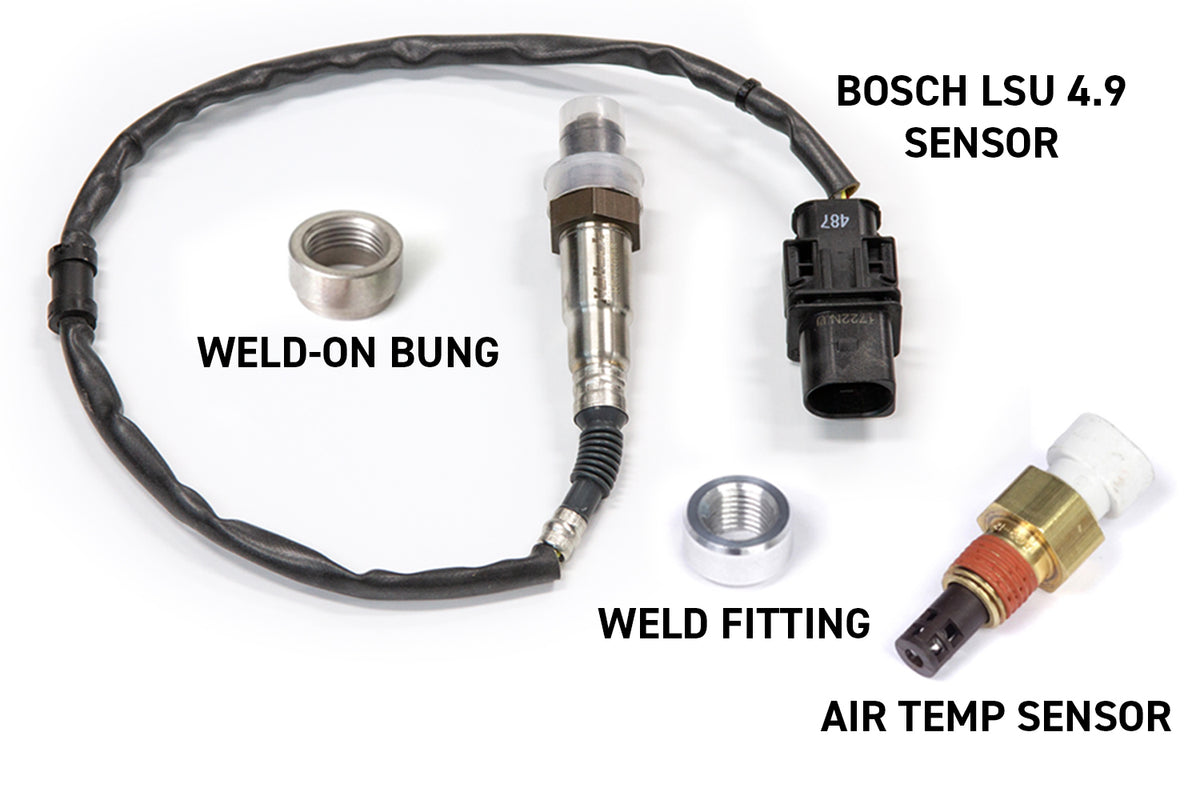

Sensor Pack

• Bosch LSU 4.9 Sensor
• Weld on fitting for O2 Sensor
• Air Temperature Sensor M14 x 1.5
• Weld on fitting for Air Temp Sensor

Downloads

• Quickstart guide
• 3D Model
• Wiring Diagram
• Haltech Product Catalogue
• Knowledge Base Article: Nexus Rebel LS
• All manuals and downloads for HT-220201 on haltech.com
