Haltech Nexus Rebel LS - Suits Gen IV - HT-220204

Haltech Nexus Rebel LS - Suits Gen IV - HT-220204

Suits: Gen IV LS - 6-pin DBW, EV6 Injectors, Manual Transmission

Includes: HT-220001 Rebel ECU, HT-186500 Main Harness, HT-186505 6 Pin DBW Adaptor, HT-186507 Corvette pedal adaptor, HT-186502 LS EV6 Injector Sub-Harness, HT-187003 T56 Transmission Harness, HT-186123 2 Pin Bosch Alternator Harness, HT-186124 4 Pin Delco Alternator Harness, HT-186125 2 Pin Yazaki Alternator Harness, HT-186510 Gen IV Oil pressure sensor adaptor harness, HT-186511 Gen IV MAP sensor adaptor harness, Sensor Pack (Bosch LSU 4.9 Sensor, weld on fitting for O2 Sensor, Air Temperature Sensor M14 x 1.5, weld on fitting for Air Temp Sensor)

Notes: Supports High Impedance injectors only

Overview

With the Rebel LS, all the hard work is done. It is the best, quickest, and easiest way to get your LS-swap up and running!

• ECU designed from the ground up to suit GM's popular LS engine platform
• Start-up is a breeze thanks to the new LS Set-up Wizard in our NSP software
• Comes complete with an easy-to-install harness to suit multiple GM LS applications
• Easy integration with Haltech dashes, PDMs, sensor kits, and accessories

Kit Supports Gen IV engines with drive by wire (DBW).

Kit Includes

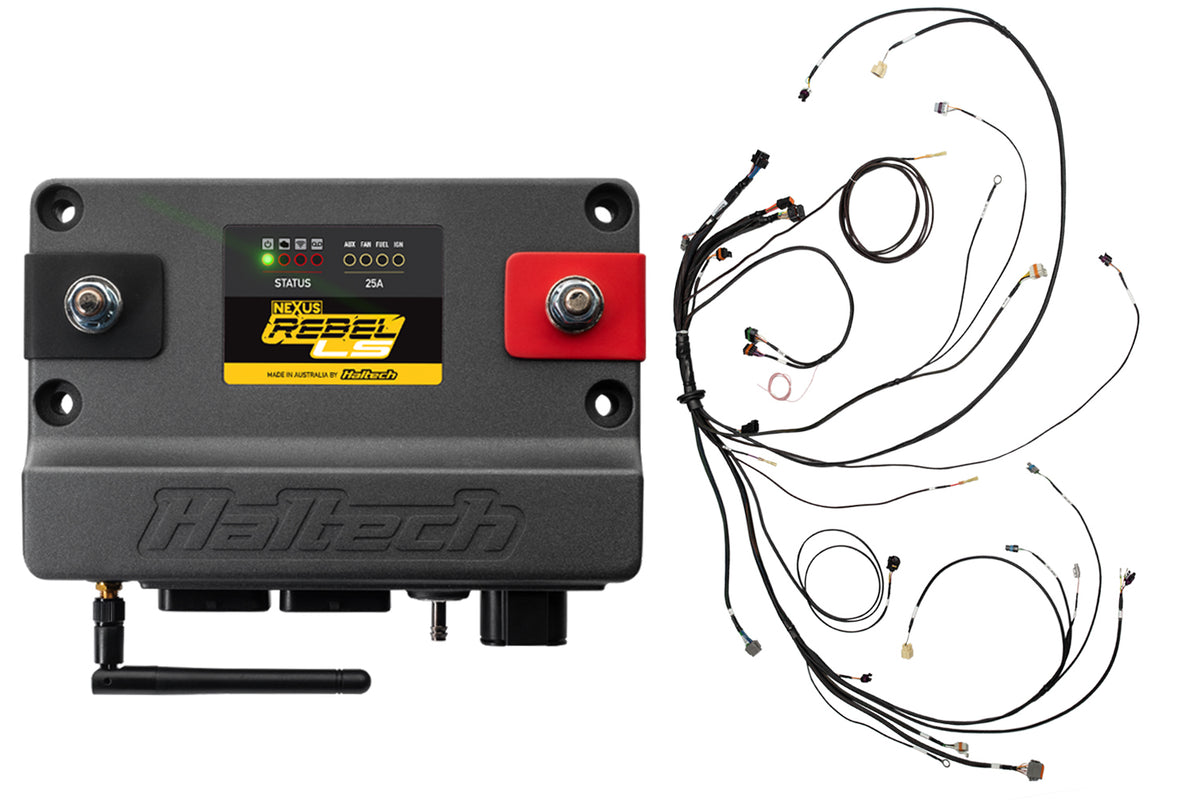

• HT-220001 - Rebel ECU
• HT-186500 - Main Harness

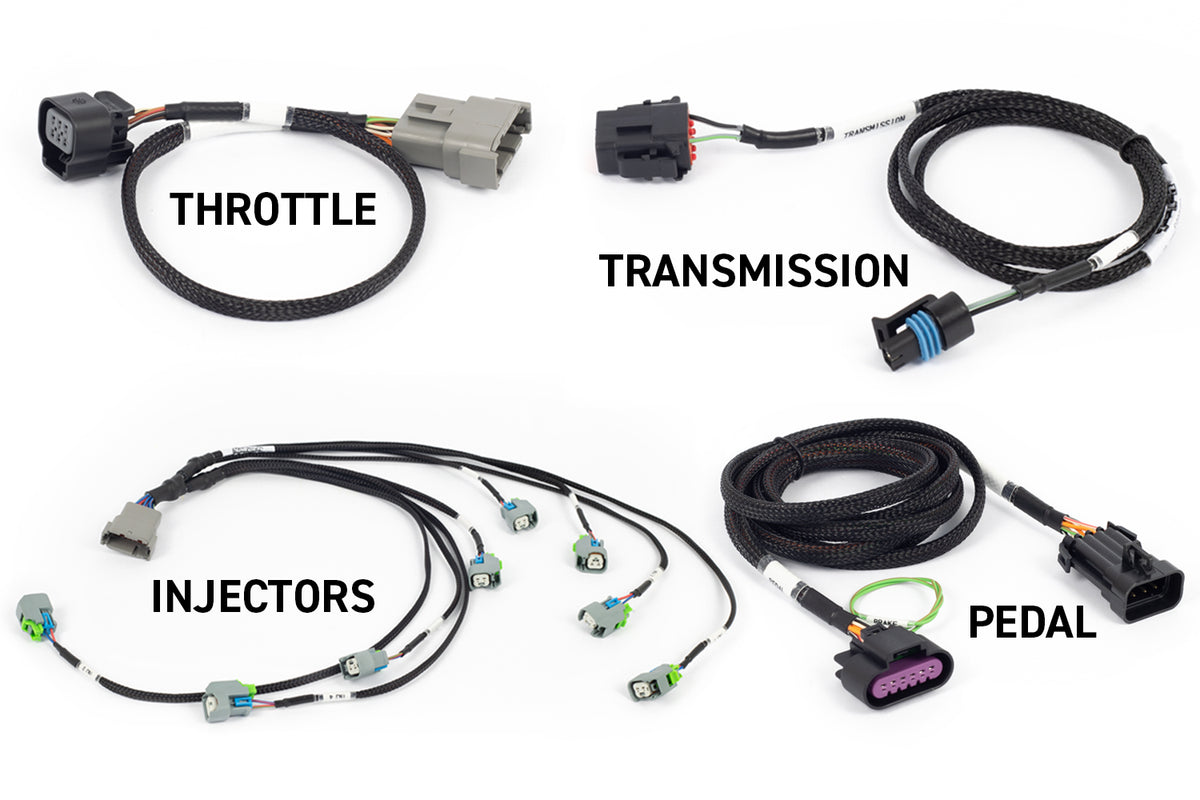

• HT-186505 - 6 Pin DBW Adaptor
• HT-186507 - Corvette pedal adaptor
• HT-186502 - LS EV6 Injector Sub-Harness
• HT-187003 - T56 Transmission Harness

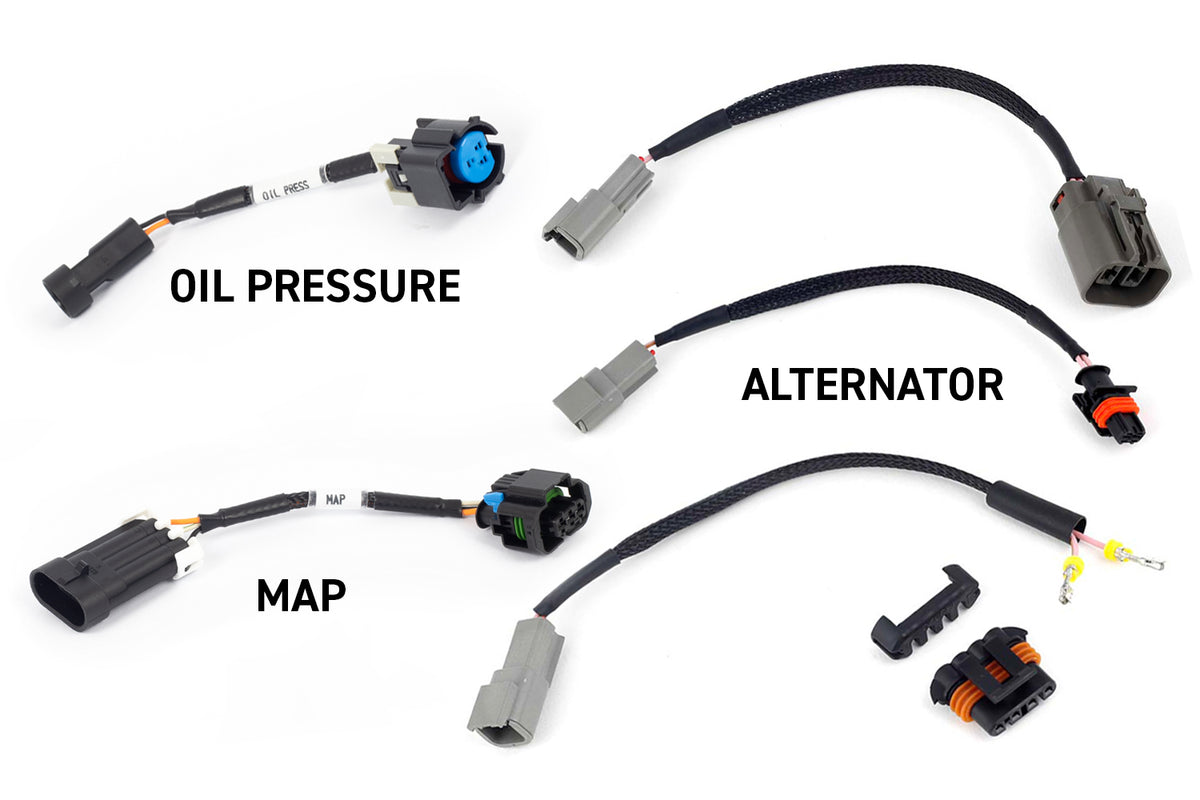

• HT-186123 - 2 Pin Bosch Alternator Harness
• HT-186124 - 4 Pin Delco Alternator Harness
• HT-186125 - 2 Pin Yazaki Alternator Harness
• HT-186510 - Gen IV Oil pressure sensor adaptor harness
• HT-186511 - Gen IV MAP sensor adaptor harness

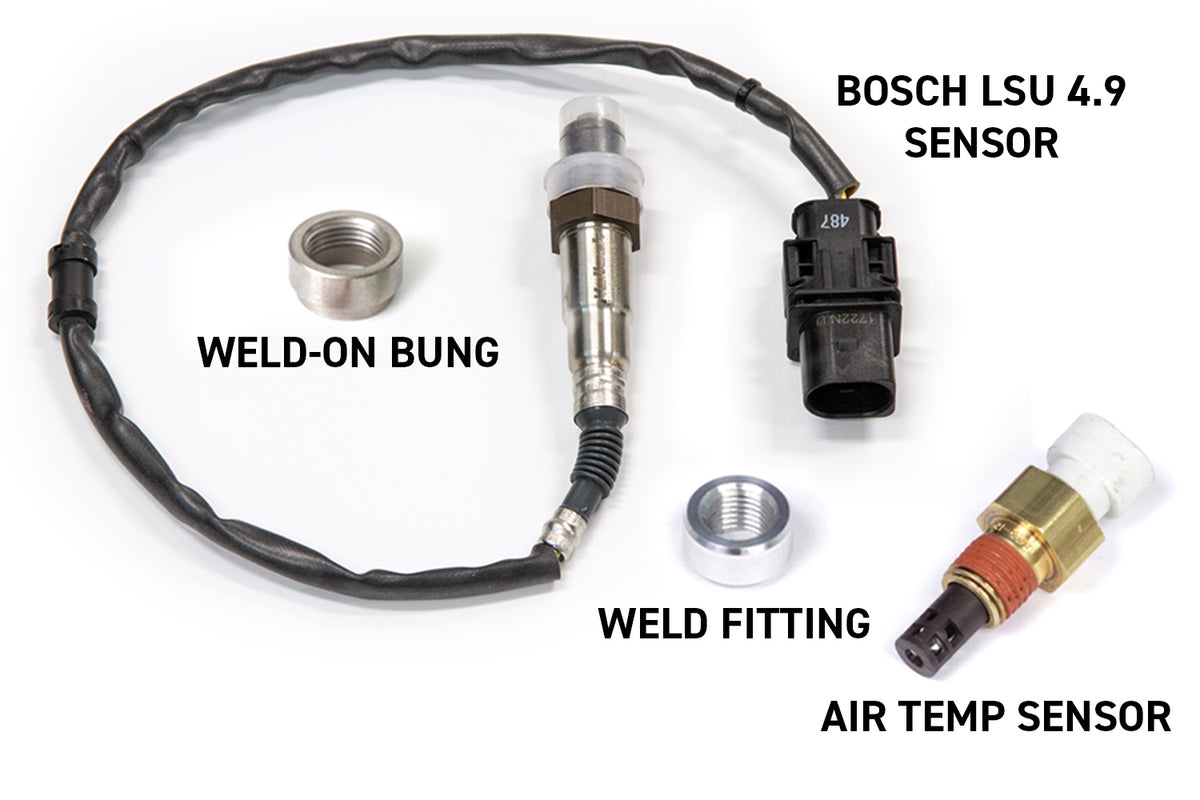

Sensor Pack

• Bosch LSU 4.9 Sensor
• Weld on fitting for O2 Sensor
• Air Temperature Sensor M14 x 1.5
• Weld on fitting for Air Temp Sensor

Downloads

• Quickstart guide
• 3D Model
• Wiring Diagram
• Haltech Product Catalogue
• Knowledge Base Article: Nexus Rebel LS
• All manuals and downloads for HT-220204 on haltech.com
