Haltech Nexus Rebel LS Terminated Harness for Nexus Rebel LS ECU - HT-186500

Haltech Nexus Rebel LS Terminated Harness for Nexus Rebel LS ECU - HT-186500

Suits: Nexus Rebel LS ECU

Includes: Injector breakouts (for HT-186501 EV1, HT-186502 EV6 and HT-186503 Multec 2 injector sub-harnesses), ignition breakout designed to plug into the factory ignition harness, alternator breakouts (for HT-186123 2-pin Bosch, HT-186124 4-pin Delco and HT-186125 2-pin Yazaki alternator harnesses), sensor adapter connections (HT-186510 Gen IV oil pressure, HT-186511 MAP, HT-186508 Gen III knock sensor) and transmission breakout (HT-187003 T56 transmission sub-harness)

Notes: Harness requires Injection, Factory Ignition, DBW, Pedal and Alternator Sub Harnesses – Sold separately.

Overview

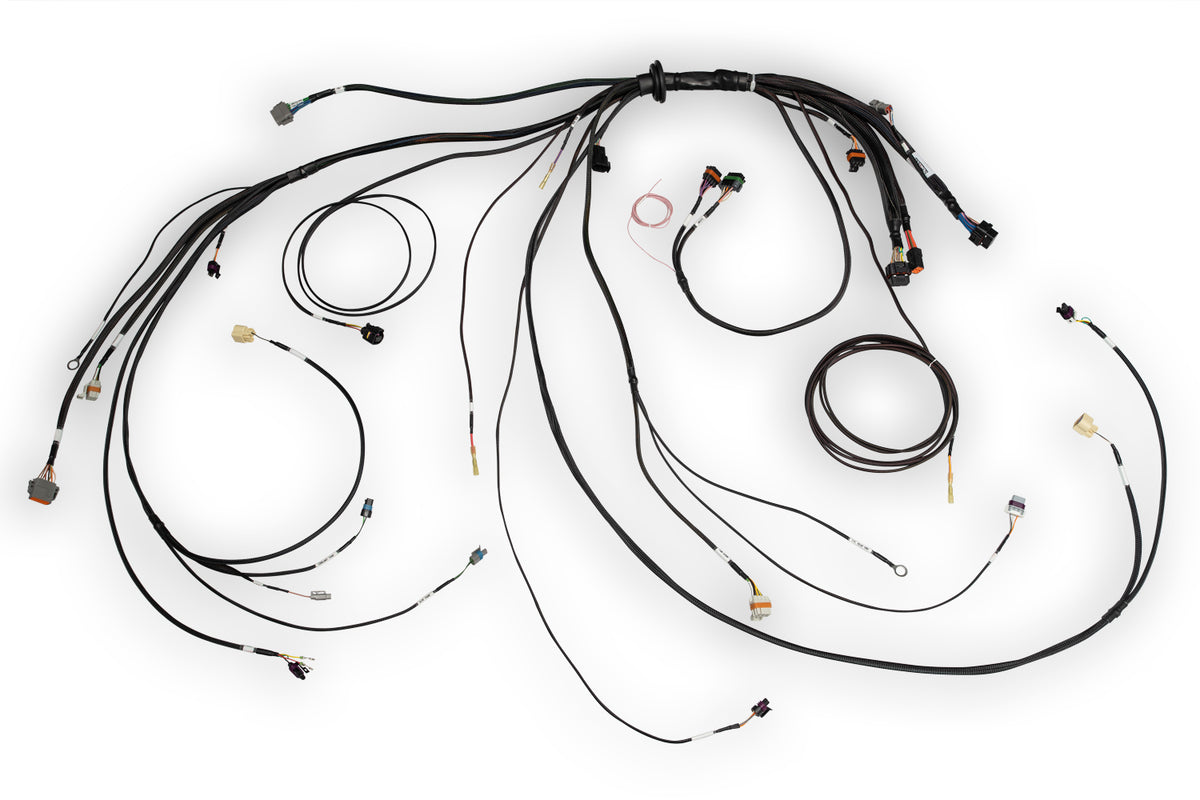

Main Terminated Harness for use with the Rebel LS ECU.

• Injector breakouts: HT-186501 - Nexus Rebel LS - EV1 Injector sub-harness; HT-186502 - Nexus Rebel LS - EV6 injector sub-harness; HT-186503 - Nexus Rebel LS - Multec 2 injector sub-harness
• Ignition breakout - Designed to plug into the factory ignition harness
• Alternator breakouts: HT-186123 GM LS 2-Pin Bosch Alternator Harness; HT-186124 GM LS 4-Pin Delco Alternator Harness; HT-186125 GM LS 2-Pin Yazaki Alternator Harness
• Sensor adapters: HT-186510 - Nexus Rebel LS - Gen IV Oil pressure sensor adapter harness; HT-186511 - Nexus Rebel LS - MAP sensor adapter harness; HT-186508 - Nexus Rebel LS - Gen III Knock sensor sub-harness
• Transmission sub-harness: HT-187003 - Nexus Rebel LS - T56 transmission sub-harness

Downloads

• Wiring Diagram
• Haltech Product Catalogue
• All manuals and downloads for HT-186500 on haltech.com
