Haltech Nexus S2 Plug 'n' Play Adapter Harness Kit - Honda S2000 (AP1 / AP2 ) - HT-212314

Haltech Nexus S2 Plug 'n' Play Adapter Harness Kit - Honda S2000 (AP1 / AP2 ) - HT-212314

Suits: Plug 'n' Play replacement of the factory ECU for Honda S2000 AP1 (00-04), AP2 (05) Non-DBW

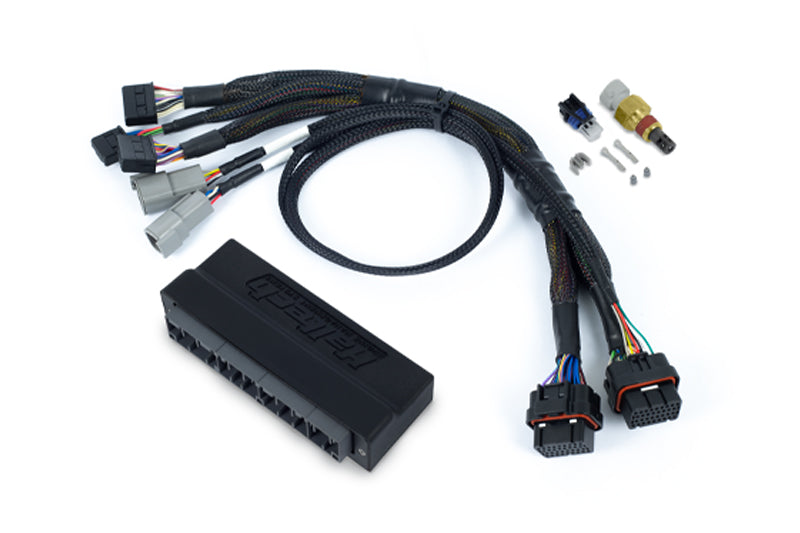

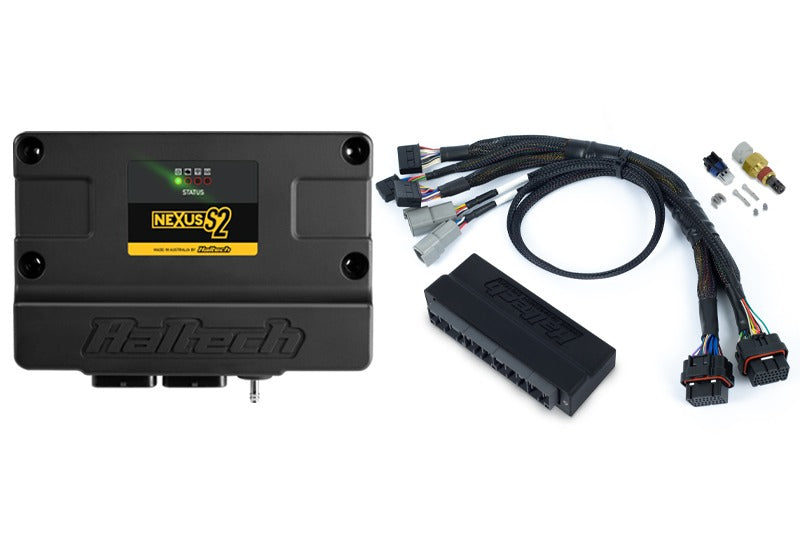

Includes: Nexus S2 ECU, Injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.

Notes: Non Drive-By-Wire (DBW) application only. Using a Nexus S2 instead of a Nexus S3 will reduce some of the car's factory functionality.

Overview

Haltech's Nexus S2 is the successor to the acclaimed Elite 1500, offering a serious upgrade in performance and functionality.

The S2 combines all the classic functionality of the Elite 1500 with new features and the superior processing power of the successful Nexus platform.

• 4 x peak/hold injector drivers (can be used as low side drive outputs)
• 4 x low current ignition outputs (can be used as low side drive outputs)
• 6 x low side drive outputs, PWM capable (DPOs)
• 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
• 1 x ECR output
• 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
• Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters

6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs

• 1 x on-board wideband controller, supporting NTK and LSU4.9
• 1 x on-board 4 bar MAP sensor
• 2 x CAN ports with switchable termination

Onboard data logging - Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 128MB of internal memory

A simple Haltech Plug 'n' Play product that allows you to be up and running in just a few hours.

The quick start guide will walk you through installation of the Haltech Plug 'n' Play adapter into your vehicle.

Specifications

• Analog Voltage Inputs (AVI): 11
• Differential Engine Position Inputs: 2 (Trigger and Home)
• Digital Pulsed Inputs (DPI): 0
• Synchronized Pulsed Inputs (SPI): 6
• Knock Sensor Inputs: 2
• On-board Wideband Controller: 1 x NTK/LSU 4.9
• Injection: 4 (peak and hold)
• Ignition: 4
• Ignition Switch Input: 1
• Engine Control Relay output: 1
• Total Digital Pulsed Outputs (DPO): 6
• Half Bridge Outputs (HBO): 4 8A
• On-Board PDM: NO
• 25A High Current Outputs (HCO): 0
• CAN Bus Networks: 2
• MAP sensor: Internal (4 BAR)
• Inertia / G-Sensor: NO
• USB 2.0: USB-C
• Low Power Up via Cable: YES
• Wi-Fi: YES
• Compatible with Haltech Connect App: YES
• Anti-Lag/Rotational Idle: YES
• Boost Control: 4D Closed Loop
• Closed Loop O2 Control: Dual
• CO2 Control: YES
• Drive-By-Wire Throttle: Dual
• Engine Protection: Multi-Level
• Flat Shift Support: Advanced
• Flex Fuel: YES
• Intake Air Bleed Control: YES
• Knock Control: Dual
• Launch Control: YES
• Long Term Learning: Up to 4D
• Nitrous Control Stages: Up to 6
• Race Timer: YES
• Rolling Anti-Lag: YES
• Shock Travel & Ride Height: YES
• Torque Management (Driveshaft and Engine RPM Targeting): YES
• Traction Control: YES
• Trans Brake: YES
• Tuning Table Resolution: 32x32x8 4D
• Variable Cam Control: Up to 4
• Onboard storage: 128MB

What's in this kit

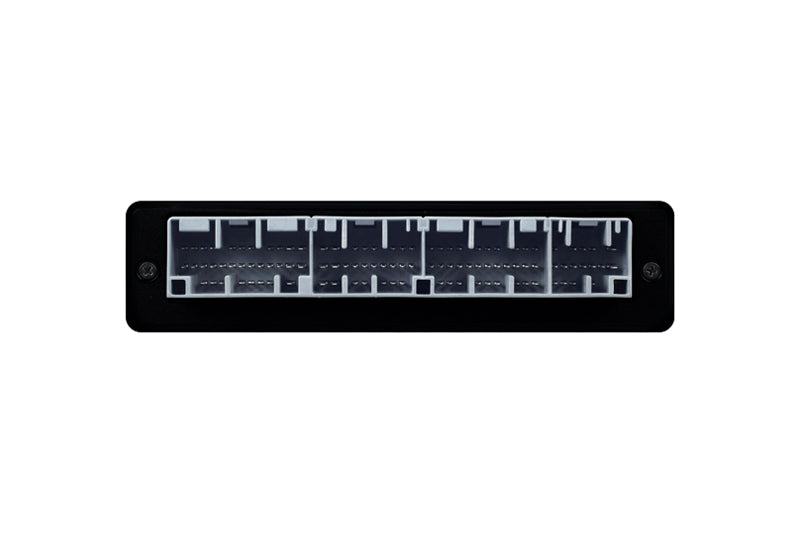

• 1 x Haltech Nexus S2/S3 Plug n Play Adapter Harness - Honda AP1 / AP2 - HT-186330

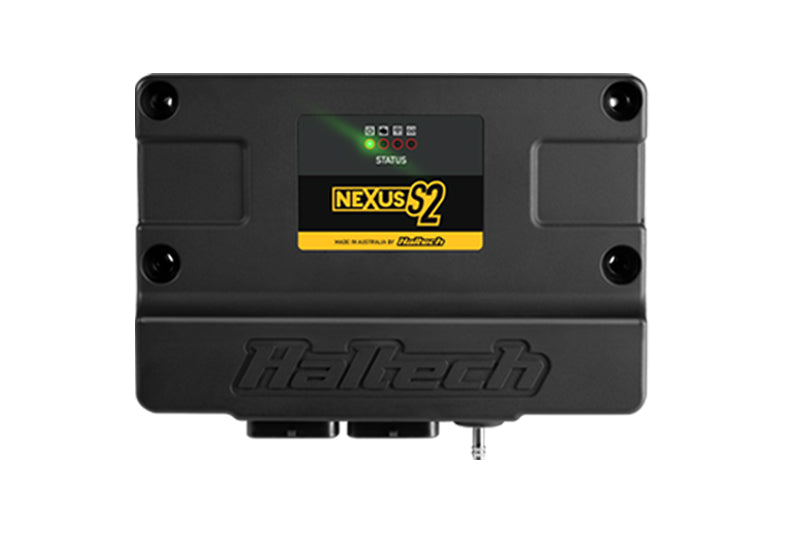

• 1 x Haltech Nexus S2 ECU Only - HT-212000
