Haltech Nexus S3 ECU Only - HT-213000

Part Number: HALHT-213000
Authorized Haltech Dealer Ships from Calgary
Haltech 40th Birthday Sale: long ETA We place our Haltech sale order after the sale ends on Dec 7. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order. support@boostfactory.ca
Replaces discontinued:
  • Haltech Elite 2500 ECU (HT-151300)
  • Haltech Elite 2500 T ECU (HT-151310)
Sold out for now We're restocking this one as fast as we can. Ask us for the ETA at support@boostfactory.ca.

Warehouse Icon Inventory Location: Boost Factory Calgary Canada

Stock: 0

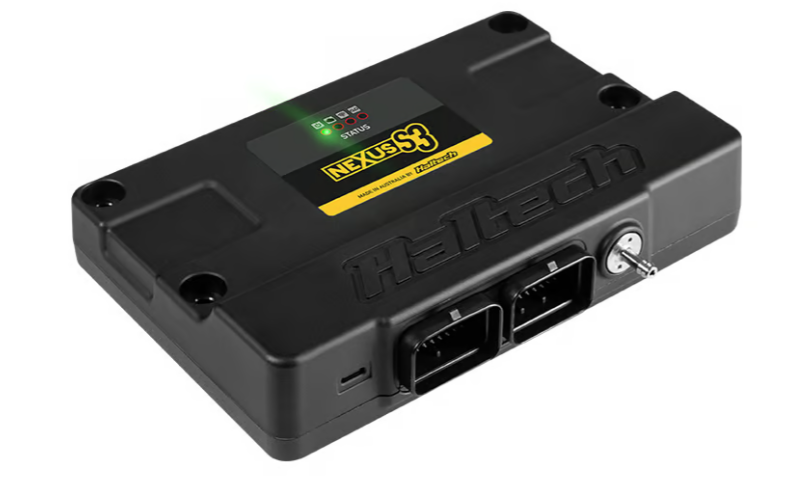

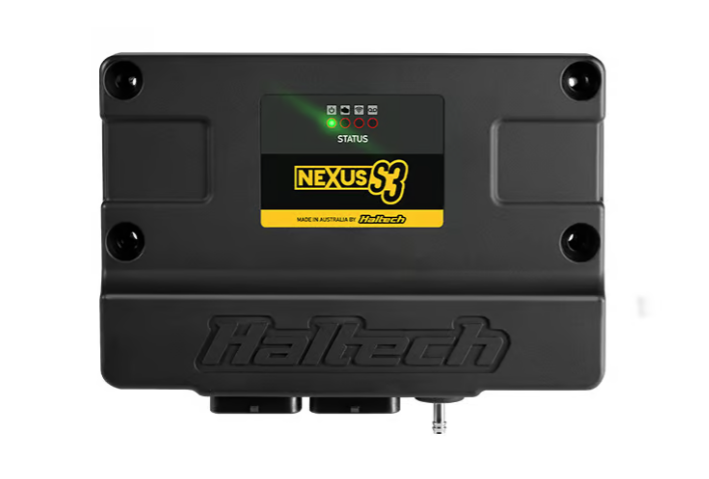

Haltech Nexus S3 ECU Only - HT-213000

Suits: Engines with up to 8 cylinders or up to 4 rotors. Racing applications where advanced race features and data logging is required.

Includes: Nexus S3 ECU, 4 x mounting bolts, USB-C Cable, USB-C dust cap, Quick Start Guide, Wiring Diagram.

Overview

Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.

  • 8 x peak/hold injector drivers (can be used as low side drive outputs)
  • 8 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs, PWM capable (DPOs)
  • 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
  • 1 x ECR output
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller, supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination
  • Onboard data logging - Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 128MB of internal memory

Features

  • Controlled via NSP (Nexus Software Programmer)
  • Long Term Learning
  • Stepper Motor Control
  • 4D Closed Loop Boost Control
  • Closed Loop CO2 Control
  • Rotational Idle
  • Launch Control
  • Traction Control
  • Anti-Lag
  • Dual Knock Control
  • Trans Brake Control
  • Race Timer
  • Multi Stage Fuel Injection
  • Multi-level Engine Protection
  • 6 Stage Nitrous Control
  • 4-sensor variable cam control
  • Intake Air Bleed Control
  • Flat Shift Control
  • Shock Travel & Ride Height Control
  • Advanced Torque Management
  • On-board Wi-Fi
  • On-board datalogging (128MB)

Automatic Transmission Control

  • Ford AODE/4R70W
  • GM 4L60E
  • GM 4L80E
  • Toyota A340E
  • Lenco
  • Liberty
