Haltech Nexus Ti6L Transmission Interface Kit - Suits GM 6L Series - HT-196002

Haltech Nexus Ti6L Transmission Interface Kit - Suits GM 6L Series - HT-196002

Suits: Nexus Series ECUs & VCUs including Rebel. Does not support Elite / Platinum / Legacy ECUs. Supports GM 6L80 / 6L90 Automatic Transmissions running a compatible OS version.

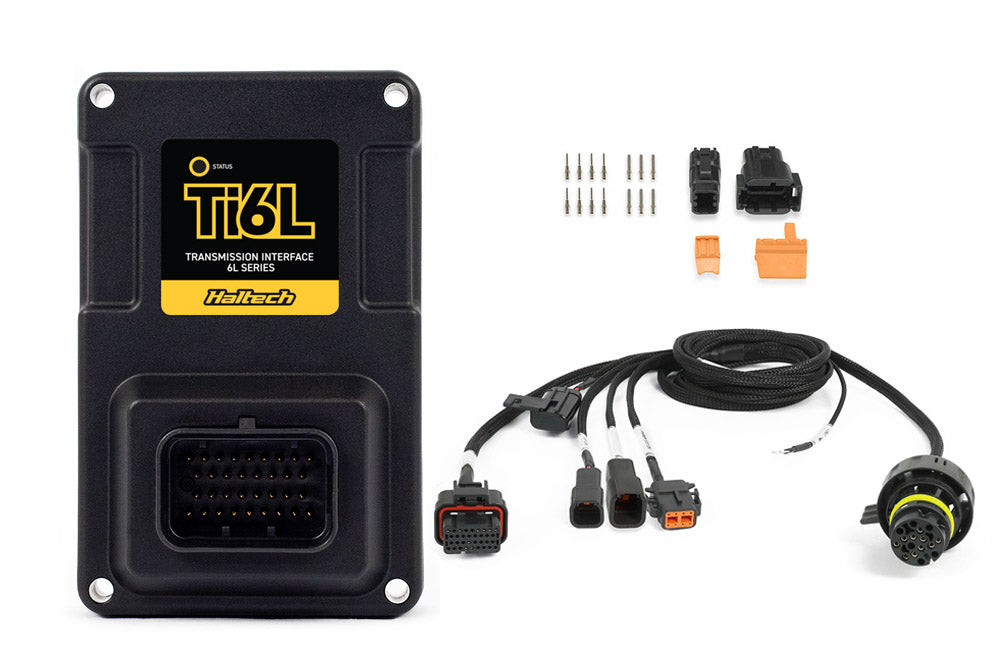

Includes: HT-196002 Nexus Ti6L, HT-187007 Nexus Series 6Lx0 Transmission Harness, Mounting hardware kit, Opposing connectors, Quick Start Guide

Overview

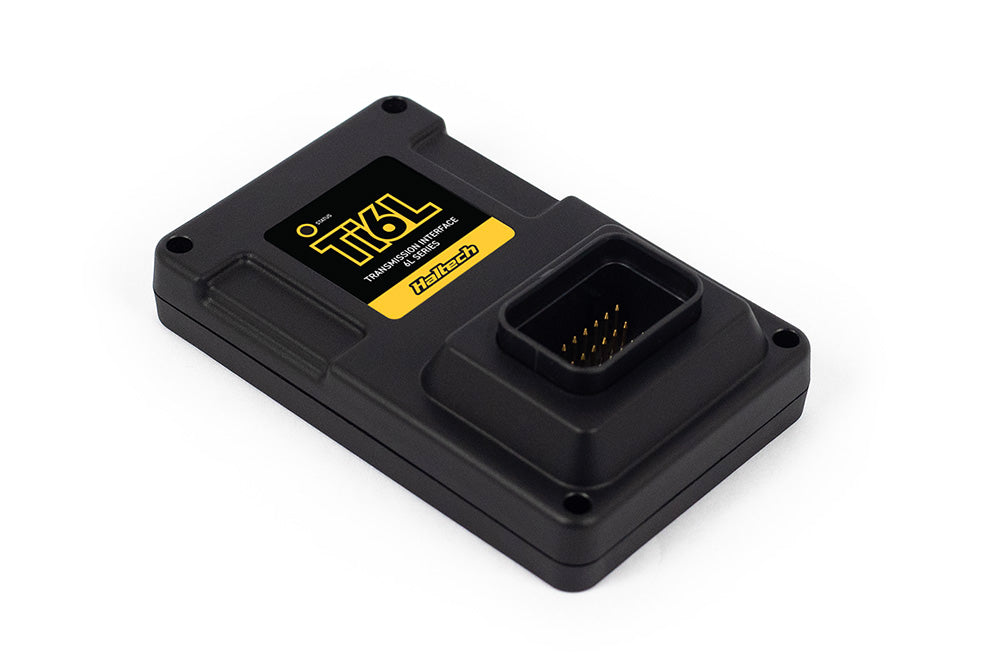

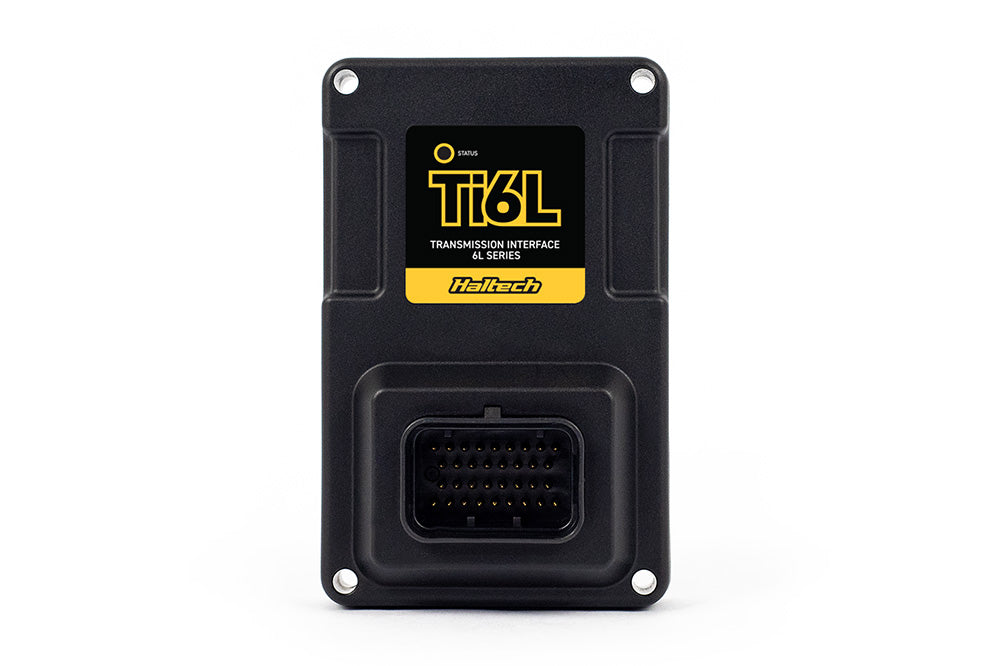

This device, in conjunction with a Nexus series 6Lx0 transmission harness (HT-187007), enables a Nexus ECU or VCU to integrate and control a supported GM 6L series automatic transmission. This kit is plug and play with a Rebel LS ECU and terminated harness via the transmission breakout connector.

Features

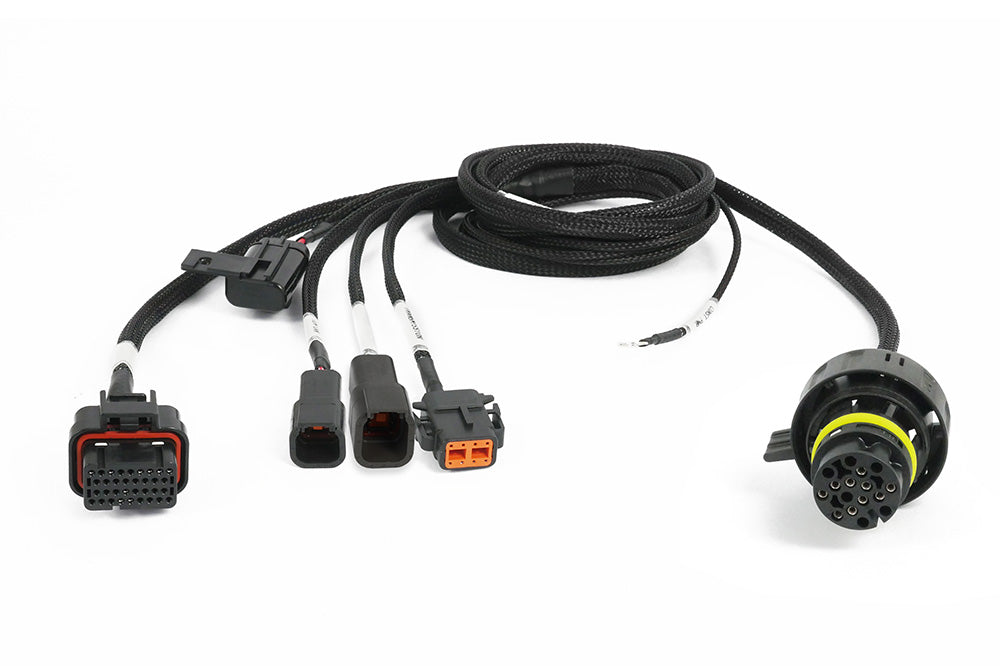

• Fully terminated transmission harness to suit GM 6Lx0 transmissions
• Plug and Play with a Nexus Rebel LS ECU terminated harness
• Easy Rebel LS Setup Wizard using the Haltech NSP Software or Haltech Connect App
• Convenient TCM OS update support (see Knowledge Base article for more info)

Specifications

• Connector: 34 pin AMP Superseal Keyway Type 2
• Communications: CAN 1 (Haltech Protocol), CAN 2 (6L TCM Protocol)
• Operating voltage: 8 - 22V
• Ambient temperature: 105°C / 221°F (max)
• IP rating: IP66

Downloads

• Quickstart guide
• Haltech Product Catalogue
• Knowledge Base Article: Nexus Ti6L Transmission Interface Kit
• All manuals and downloads for HT-196002 on haltech.com
