HKS GTIII-RS Bolt-On Turbo Pro Kit Toyota 86 ZN6 / Subaru BRZ ZC6 - 11001-AT005

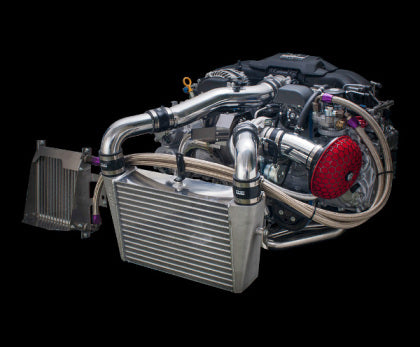

HKS GTIII-RS Bolt-On Turbo Pro Kit for the Toyota 86 ZN6 and Subaru BRZ ZC6, part number 11001-AT005.

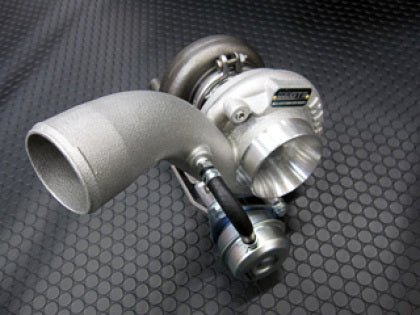

• GTIII-RS turbine matched to the 2.0 L FA20 engine, with special turbo housing
• Boost pressure 85 kPa (0.87 kgf/cm2)
• Suits stock to tuned engines; output reaches 450 ps on a tuned engine
• Version with catalytic converter extension (CATless extension version is 11001-KT001)
• Compatible with the HKS S-Type oil cooler kit (not included); an oil cooler is strongly recommended
• Kit contents: GTIII-RS turbocharger assembly with actuator, oil and water piping parts, air cleaner and suction pipe, front-mounted intercooler and piping, exhaust manifold, extension with CAT, insulator cover and sheet, gaskets, brackets and bolts
• Requirements (not included): reinforced fuel parts such as injectors, pressure sensor, engine management with reset, reinforced clutch; vehicle modification required

Fitment

• Toyota 86 ZN6, FA20, 2012/04 to 2021/10 (HKS Japan)
• Subaru BRZ ZC6, FA20, 2012/03 to 2021/07 (HKS Japan)

HKS resources:

• Product page 86 (HKS Japan)
• Product page BRZ (HKS Japan)
• Bolt-on turbo overview (HKS Japan)

Contact us if you are unsure of fitment or Size HERE
