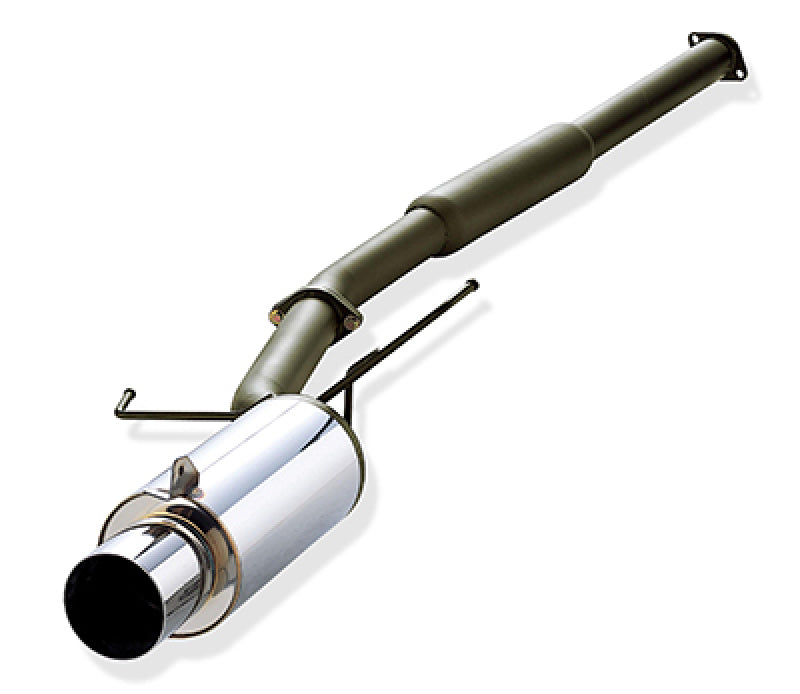

HKS Hi-Power409 Muffler Toyota Chaser / Cresta / Mark II JZX90 - 31006-AT005

The HKS Hi-Power409 muffler, part number 31006-AT005, is an S409 muffler for the Toyota Chaser, Cresta and Mark II (E-JZX90) with the 1JZ-GTE engine.

• Part number: 31006-AT005
• Main material: S409
• Tip diameter: 120 mm
• Center pipe diameter: 85 mm
• Close noise level: 97 dB (stock 87 dB)
• Road clearance: 120 mm (lowest point is the 2nd center silencer)
• Certification No.: 03S07572

Fitment

• Toyota Chaser (E-JZX90), 1JZ-GTE, 1992/10 to 1996/08. (Source: HKS Japan)
• Toyota Cresta (E-JZX90), 1JZ-GTE, 1992/10 to 1996/08. (Source: HKS Japan)
• Toyota Mark II (E-JZX90), 1JZ-GTE, 1992/10 to 1996/08. (Source: HKS Japan)

Resources

• HKS Japan product page (Chaser)
• HKS Japan product page (Cresta)
• HKS Japan product page (Mark II)
• HKS Japan Hi-Power409 overview
• HKS USA product page
• HKS Japan installation instructions PDF (Japanese, 14 pages)

Contact us if you are unsure of fitment or Size HERE
