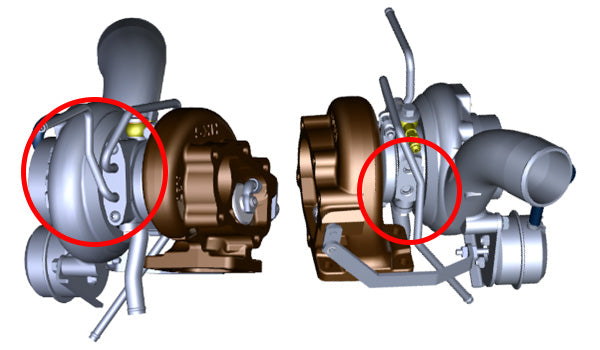

HKS GT4135 Bolt-On Turbo Kit Toyota 86 / Subaru BRZ ZN6 ZC6 FA20 - 11001-KT006

HKS GT4135 bolt-on turbo kit, part 11001-KT006, for the Toyota 86 and Subaru BRZ with the FA20 engine.

• Turbine size GT4135
• Compressor wheel: inducer 49.3 mm, exducer 58 mm
• Turbine wheel: inducer 47 mm, exducer 41.2 mm, 11 blades, A/R 0.6
• Extension with the HKS 113 mm catalyzer
• Compatibility with the late model is confirmed with the JDM model

Fits:

• Toyota 86 ZN6, FA20 (April 2012 to March 2019) (HKS Japan)
• Subaru BRZ ZC6, FA20 (March 2012 to March 2019) (HKS Japan)

HKS resources:

• Installation instructions (PDF, HKS Japan)
• Product page (HKS Japan)

Stocked and shipped from Calgary by Boost Factory.

Contact us if you are unsure of fitment or Size HERE
