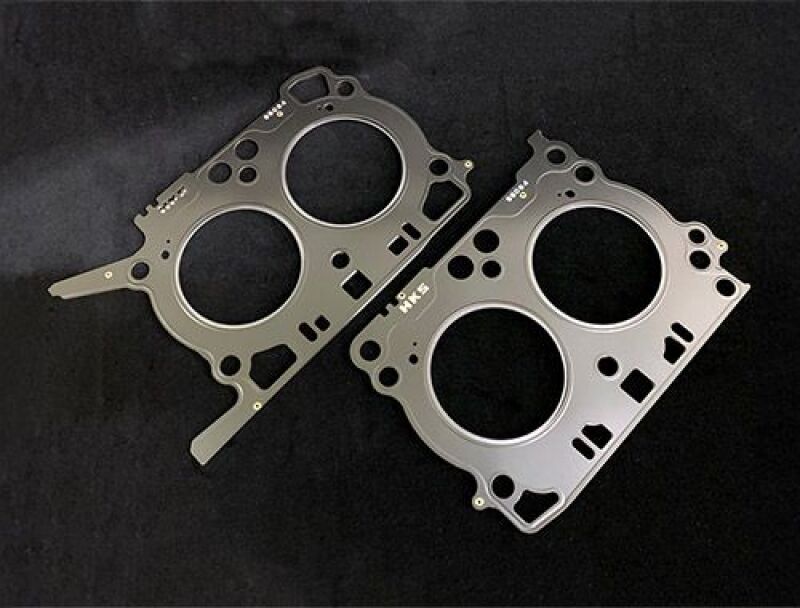

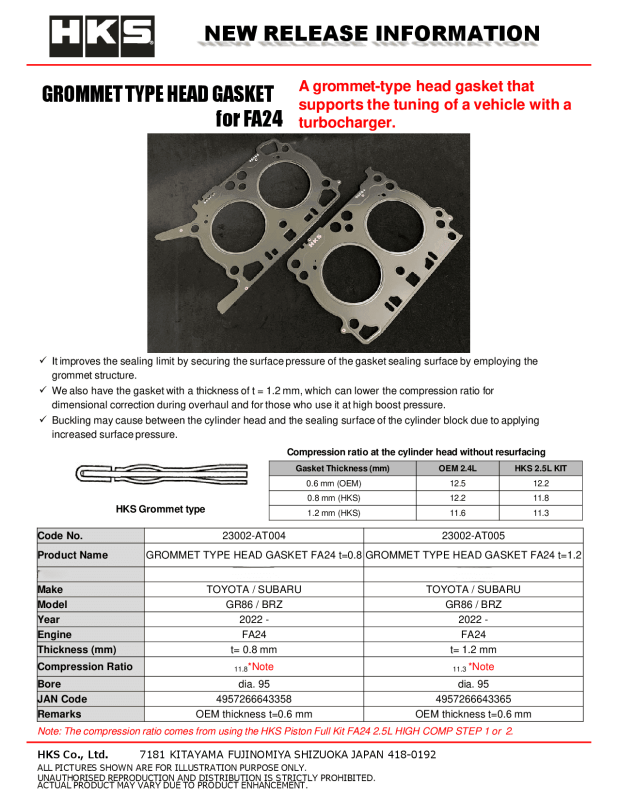

HKS Grommet Type Head Gasket 0.8 mm Toyota FA24 (95 mm bore) - 23002-AT004

Grommet type head gasket, 0.8 mm thick, for turbocharged FA24 engines.

• Grommet structure keeps gasket seal surface pressure up, raising the seal limit
• Compression ratio 11.8 with the HKS Piston Full Kit FA24 2.5L High Comp Step 1 or 2; stock gasket thickness is 0.6 mm
• Compression ratio by thickness, OEM 2.4L / HKS 2.5L kit: 0.6 mm 12.5 / 12.2, 0.8 mm 12.2 / 11.8, 1.2 mm 11.6 / 11.3
• A 1.2 mm gasket is also offered to lower compression for overhaul dimension correction or high boost
• Higher surface pressure can cause buckling between the head and block sealing surfaces
• Bore 95 mm

Fits:

• Toyota FA24 engine, 95 mm bore (HKS Japan)

HKS resources:

• Product page (HKS Japan)

Stocked and shipped from Calgary by Boost Factory.

Contact us if you are unsure of fitment or Size HERE
