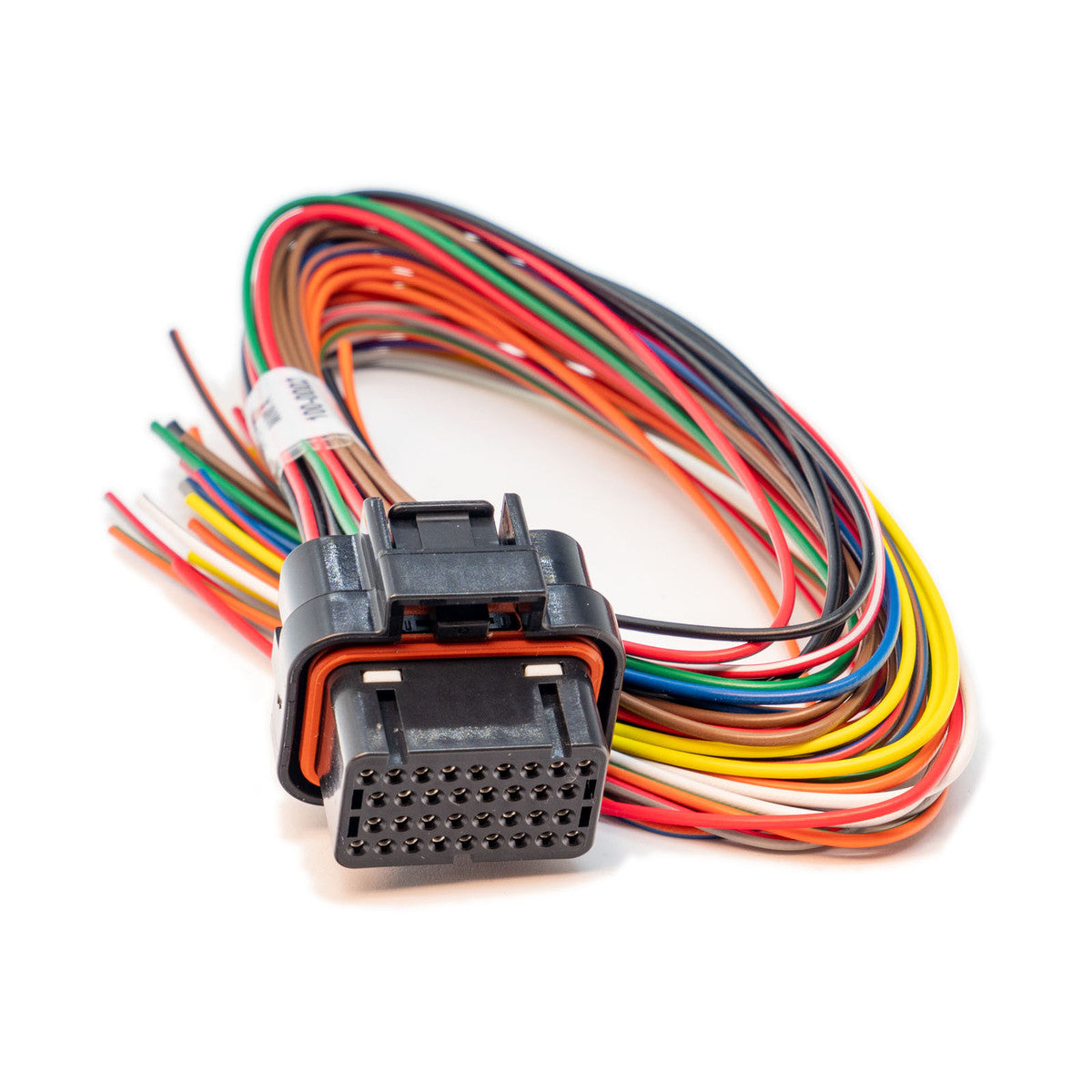

A Loom short (0LA)

0.4m 'A' Short Loom for Link G4, G4+, G4X and G5 Wire-in ECUs

A high-quality, pre-assembled wiring loom for custom installations using compatible Link wire-in ECUs. Also commonly referred to as a wiring harness or flying lead, it is terminated with a SUPERSEAL 1.0 connector at one end, and is unterminated at the other. The 0.4m Link A Loom provides a convenient and cost-effective starting point for a professional ECU installation without the time, tooling and expense required to terminate the ECU connector yourself.

Ideal Applications

Ideal for patch harnesses and adapters. The 0.4m length makes this loom particularly well suited to patch harnesses, ECU conversions, adapters and other applications where a full-length flying lead is unnecessary.

While designed for compatible Link wire-in ECUs, this loom is not limited to Link ECU applications. It can also be used for custom wiring projects requiring the same TE Connectivity SUPERSEAL 1.0 connector and compatible pin configuration.

Please note: Link Wire-in ECUs that use two ECU connectors require both an A Loom and B Loom. The 0.4 B Loom is sold separately (PN 101-0003).

Models Supported

• All Link G5 Wire-in ECUs
• All Link G4X Wire-in ECUs
• Link G4+ Atom and Atom II
• Link G4+ Monsoon
• Link G4+ Storm Blue & Storm Black
• Link G4+ Fury
• Link G4+ Xtreme
• Link G4+ Thunder
• Link G4 Storm
• Link G4 RX
• Link G4 Xtreme
• Vipec V44
• Vipec i44
• Vipec V88
• Vipec i88

Warnings

• Does not suit earlier G4 (Pre G4+) Atom ECUs.

Features

• All wires are colour coded to match the Link Wire-in manuals.
• All positions are populated.
• This loom is also available in 2.5m and 5m lengths.

Specifications

• Highlights: The Link looms use 0.75mm2 wire for the 2 red wires (pin A5 & B5) and the 4 black power grounds (A25,A34,B25,B34). All other wires are 0.5mm2.
• Product Dimensions: 400mm(L)x40mm(W)x30mm(H); 15.75in(L)x1.57in(W)x1.18in(H)
• Product Weight: 140 grams (4.94 ounces)
• Electrical: Operating Voltage Range: 0-24V; Maximum Input Voltage: 60V; Maximum Continuous Current Draw: 5A & 14A; Gauges of wire: 20AWG/0.5mm² & 19AWG/0.75mm²
• Connector: Link A SUPERSEAL 1.0

What's in the Box

• Loom A 400mm Cable
