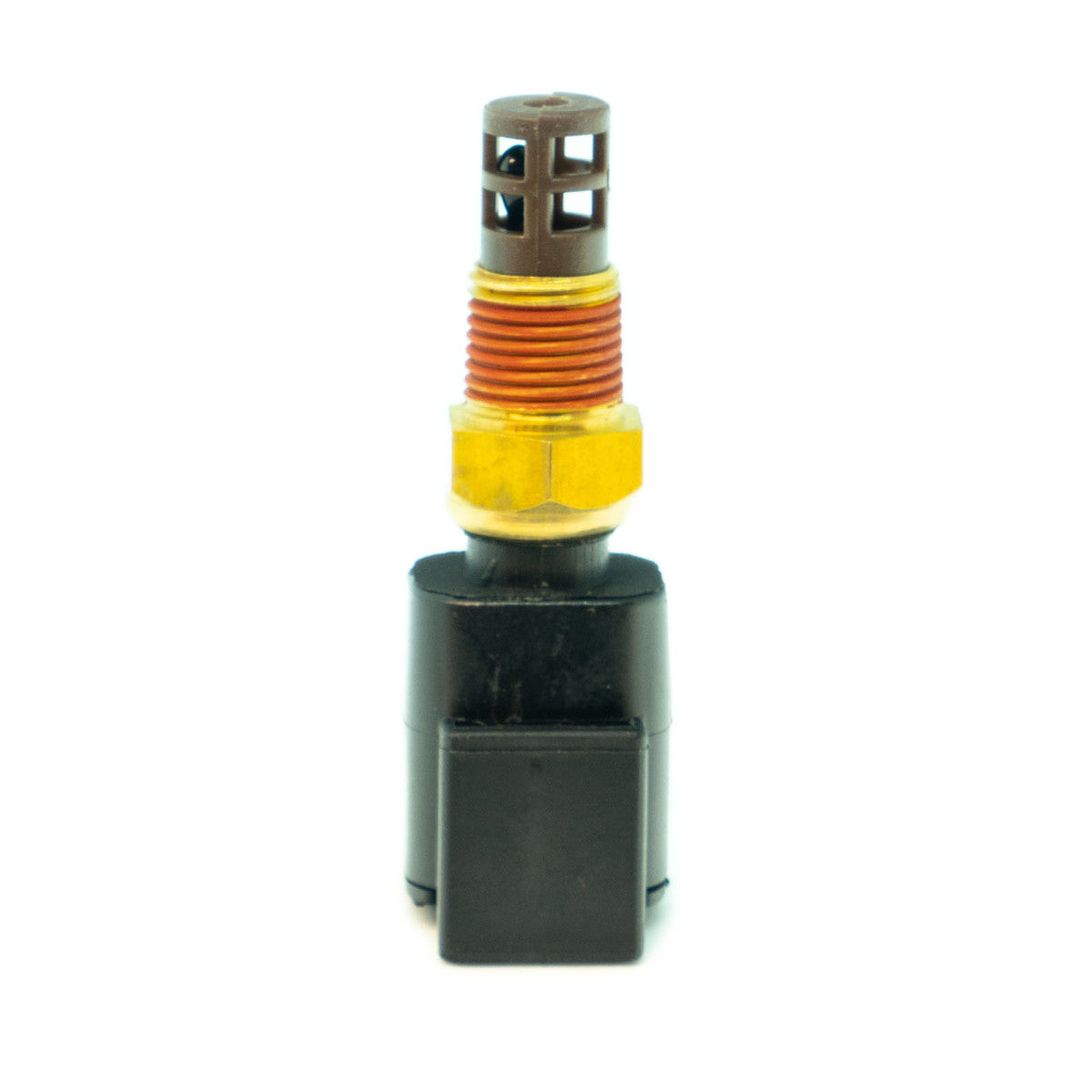

LINK Air Temp Sensor (IAT1-8) 101-0045

The Link Air Temperature Sensor (IAT1-8) is a high-quality NTC thermistor sensor designed to provide accurate intake air temperature measurement for Link ECUs. With a compact threaded design and proven temperature calibration, it delivers reliable air temperature data for fuel, ignition and engine protection strategies.

Models Supported

• All Link ECUs.
• Other aftermarket ECUs supporting NTC temperature sensors.

Specifications

• NTC thermistor temperature sensor.
• 1/8" NPT thread.
• Two-wire sensor.
• Compact metal body.
• Designed for intake air temperature measurement.
• Signal and Sensor Ground connections.
• Comes with Deutsch 2 way Connector Kit.
• Product Dimensions: 30mm(L)x55mm(W)x30mm(H) / 1.18in(L)x2.17in(W)x1.18in(H)
• Product Weight: 5 grams (0.18 ounces)
• Electrical: Operating Voltage Range: 5V
• What's in the Box: Air Temp Sensor 1/8 NPT, Deutsch 2 way Connector Kit
• PCLink Calibration Name: Link NTC1-8 & IAT1-8 OR Delphi AC IAT
• Connector: TE Connectivity Deutsch DTM 2-pin, Deutsch 2 way Connector Kit 101-0131

Raw Calibration Specs

• -40degC: 65,500 ohm
• -30degC: 51,791 ohm
• -20degC: 28,146 ohm
• -10degC: 15,873 ohm
• 0degC: 9,256 ohm
• 10degC: 5,572 ohm
• 20degC: 3,457 ohm
• 30degC: 2,205 ohm
• 40degC: 1,443 ohm
• 50degC: 965 ohm
• 60degC: 660 ohm
• 70degC: 462 ohm
• 80degC: 329 ohm
• 90degC: 238 ohm
• 100degC: 175 ohm
• 110degC: 131 ohm
• 120degC: 99 ohm
• 130degC: 76 ohm
• 140degC: 59 ohm
• 150degC: 47 ohm
