LINK B Loom Long (5LB) 101-0009

B Loom Long (5LB)

5m 'B' Long Loom for Link G4, G4+, G4X and G5 Wire-in ECUs

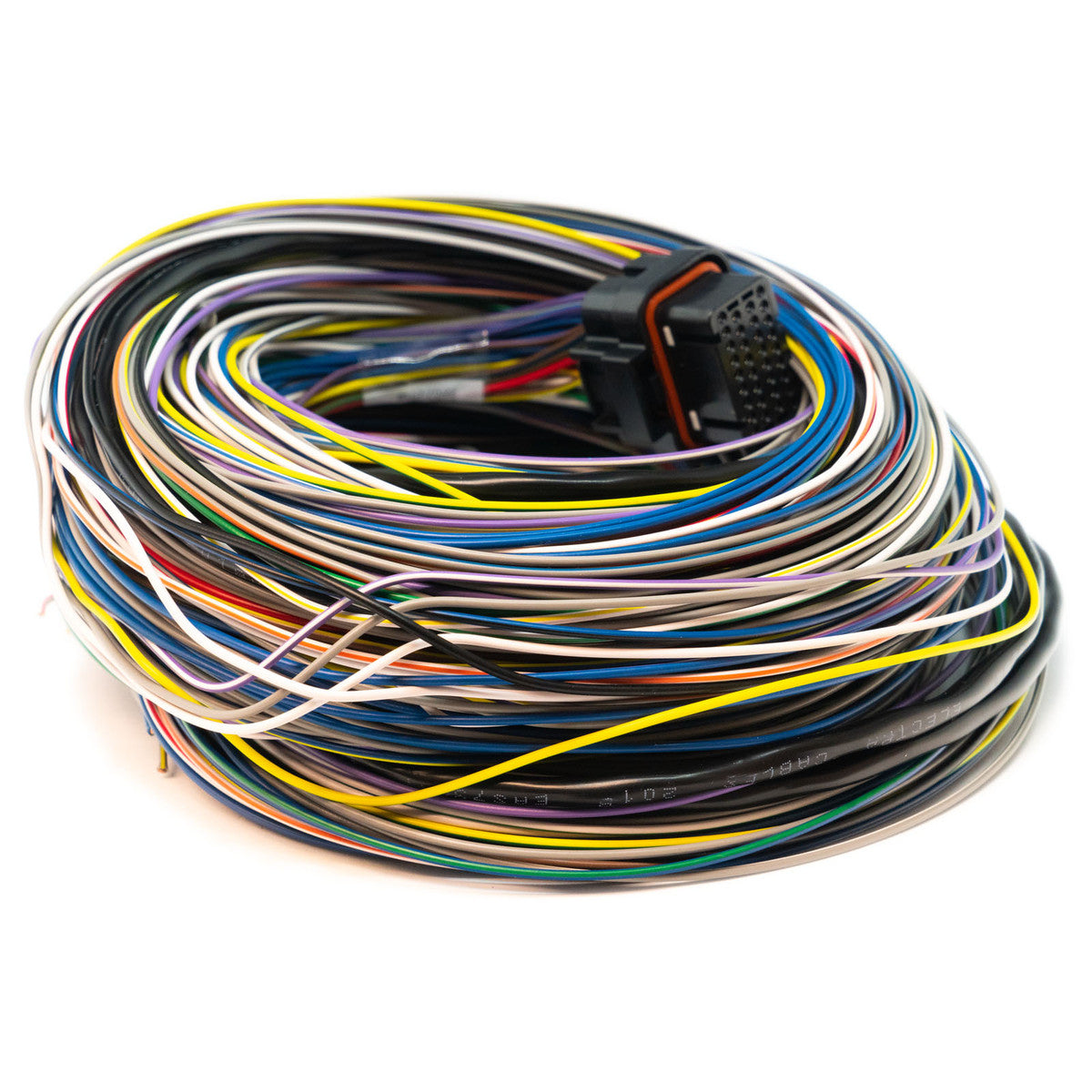

A high-quality, pre-assembled wiring loom for custom installations using compatible Link wire-in ECUs. Also commonly referred to as a wiring harness or flying lead, it is terminated with a SUPERSEAL 1.0 connector at one end, and is unterminated at the other. The 5m Link B Loom provides a convenient and cost-effective starting point for a professional ECU installation without the time, tooling and expense required to terminate the ECU connector yourself.

While designed for compatible Link wire-in ECUs, this loom is not limited to Link ECU applications. It can also be used for custom wiring projects requiring the same TE Connectivity SUPERSEAL 1.0 connector and compatible pin configuration.

Please note: Link wire-in ECUs that use two ECU connectors require both an A Loom and B Loom. The 5m A Loom is sold separately (PN 101-0008).

Models Supported

• All Link G5 Wire-in ECUs
• Link G4X StormX, FuryX, XtremeX
• Link G4+ Storm Black, Fury, Xtreme, Thunder
• Link G4 Xtreme
• Vipec V88, i88

Features

All wires are colour coded to match the Link Wire-in manuals. All positions populated.

This loom is also available in 0.4m and 2.5m lengths.

Specifications

The Link looms use 0.75mm² wire for the 2 red wires (pin A5 & B5) and the 4 black power grounds (A25, A34, B25, B34). All other wires are 0.5mm².

• Product Dimensions: 5000mm(L) × 40mm(W) × 35mm(H) / 196.85in(L) × 1.57in(W) × 1.38in(H)
• Product Weight: 1,790 grams (63.14 ounces)
• Material: 5 meters
• Electrical: Operating Voltage Range: 0-24V; Maximum Input Voltage: 60V; Maximum Continuous Current Draw: 5A & 14A; Gauges of wire: 20AWG/0.5mm² & 19AWG/0.75mm²
• What's in the Box: Loom B 5m
• Connector: Link B SUPERSEAL 1.0
