Link B Loom Medium (2LB) - 101-0006

Part Number: 101-0006
Authorized Link ECU Dealer Ships from Calgary
Link Black Friday Sale: long ETA We place our Link sale order after the sale ends on Nov 30. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order. support@boostfactory.ca

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Stock: 0

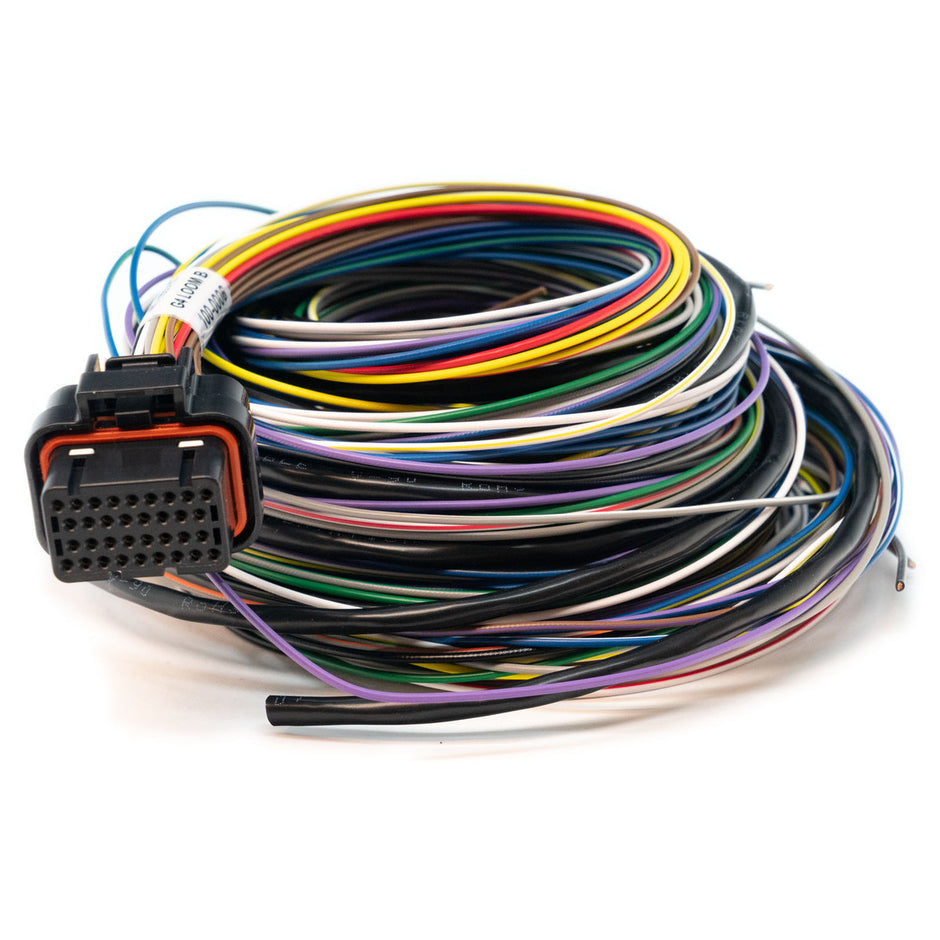

Link B Loom Medium - 2.5m (2LB) - 101-0006

2.5m 'B' Loom for Link G4, G4+, G4X and G5 Wire-in ECUs

A high-quality, pre-assembled wiring loom for custom installations using compatible Link wire-in ECUs. Also commonly referred to as a wiring harness or flying lead, it is terminated with a SUPERSEAL 1.0 connector at one end, and is unterminated at the other. The 2.5m Link B Loom provides a convenient and cost-effective starting point for a professional ECU installation without the time, tooling and expense required to terminate the ECU connector yourself.

While designed for compatible Link wire-in ECUs, this loom is not limited to Link ECU applications. It can also be used for custom wiring projects requiring the same TE Connectivity SUPERSEAL 1.0 connector and compatible pin configuration.

Please note: Link wire-in ECUs that use two ECU connectors require both an A Loom and B Loom. The 2.5m A Loom is sold separately (PN 101-0005).

Suits: All Link G5 Wire-in ECUs, Link G4X Storm, Fury and Xtreme, Link G4+ Storm Black, Fury, Xtreme and Thunder, Link G4 Xtreme, Vipec V88 and i88.

Includes: Loom B (2.5m).

Specifications

  • Product Dimensions: 2500mm(L)x35mm(W)x40mm(H); 98.43in(L)x1.38in(W)x1.57in(H)
  • Product Weight: 850 grams (29.99 ounces)
  • Length: 2.5 meters
  • Electrical: Operating Voltage Range: 0-24V; Maximum Input Voltage: 60V; Maximum Continuous Current Draw: 5A & 14A; Gauges of wire: 20AWG/0.5mm2 & 19AWG/0.75mm2
  • Connector: Link B SUPERSEAL 1.0
