Link Boost Control Solenoid - 4 Port (4BCS) - 101-0016

Link Boost Control Solenoid - 4 Port (4BCS) - 101-0016

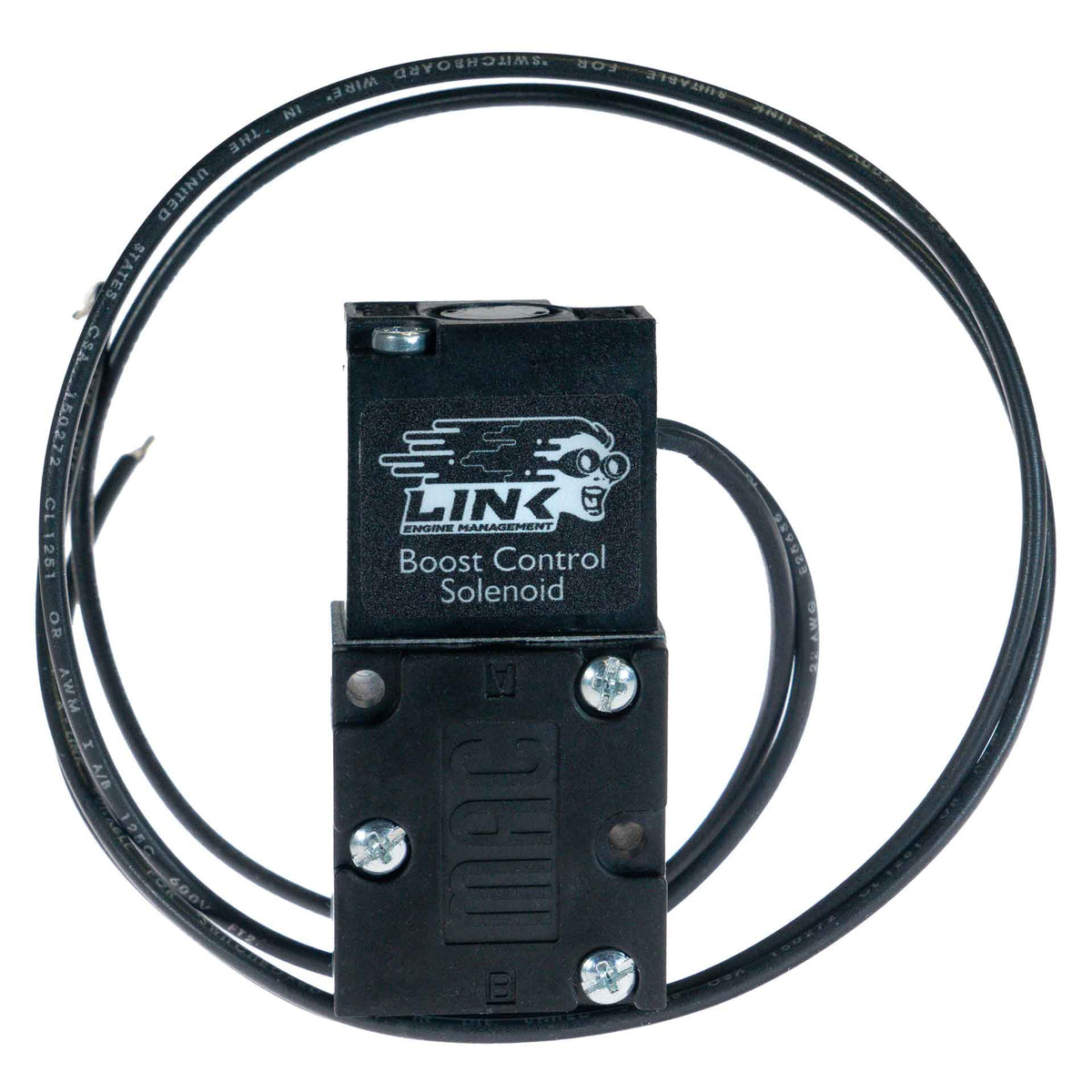

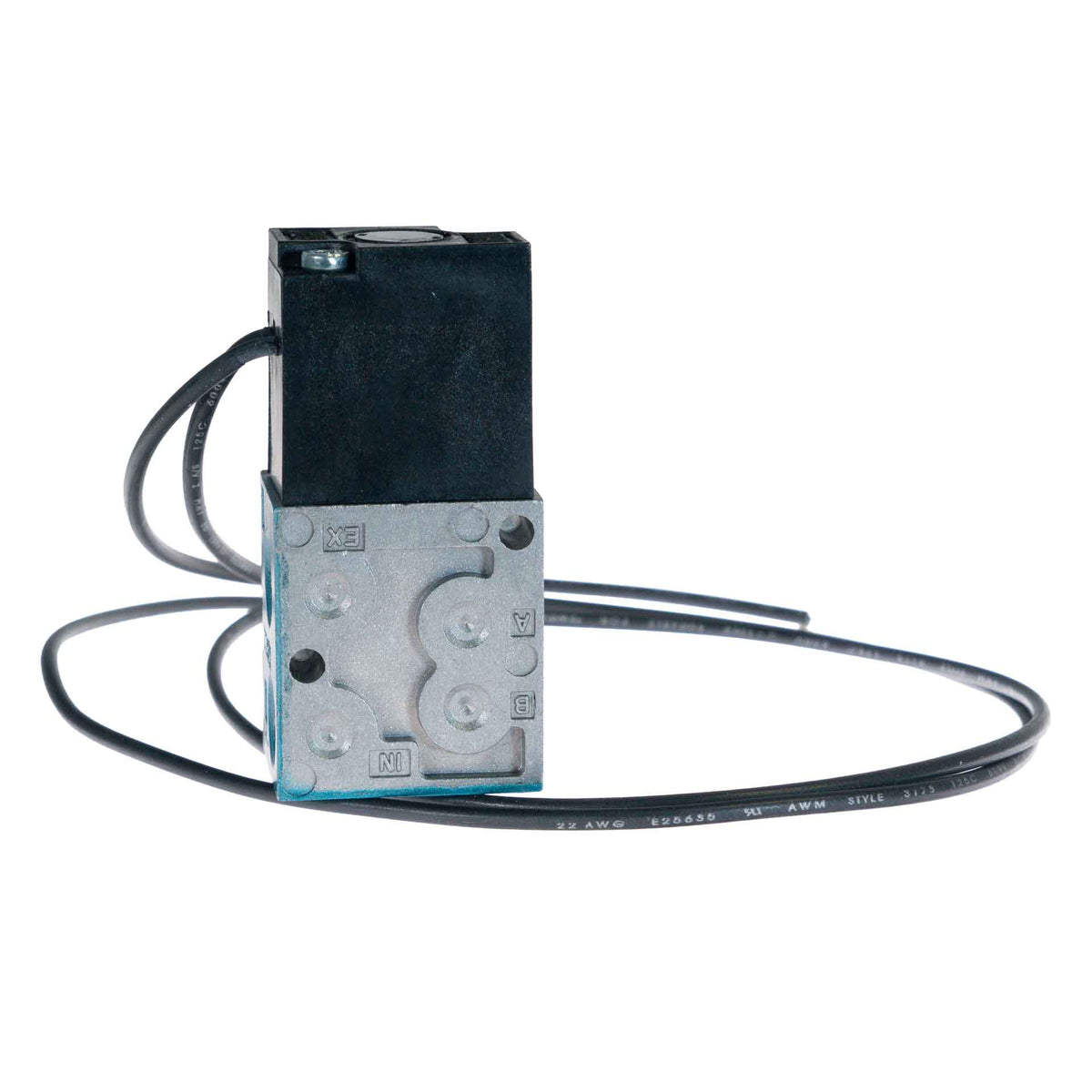

The Link 4-Port Boost Control Solenoid provides precise and reliable electronic boost control for high-boost turbocharged applications. Compatible with internal and external wastegates, as well as single or multiple wastegate configurations, it allows significantly higher boost levels than a standard 3-port configuration, reaching approximately 6-7 times the base wastegate spring pressure. Its fast, consistent response and proven design make it the ideal solution for applications requiring higher boost levels.

Suits: All Link ECUs. For applications that do not need the wider boost range of a 4-port solenoid, see the 3-Port Boost Control Solenoid (PN 101-0015).

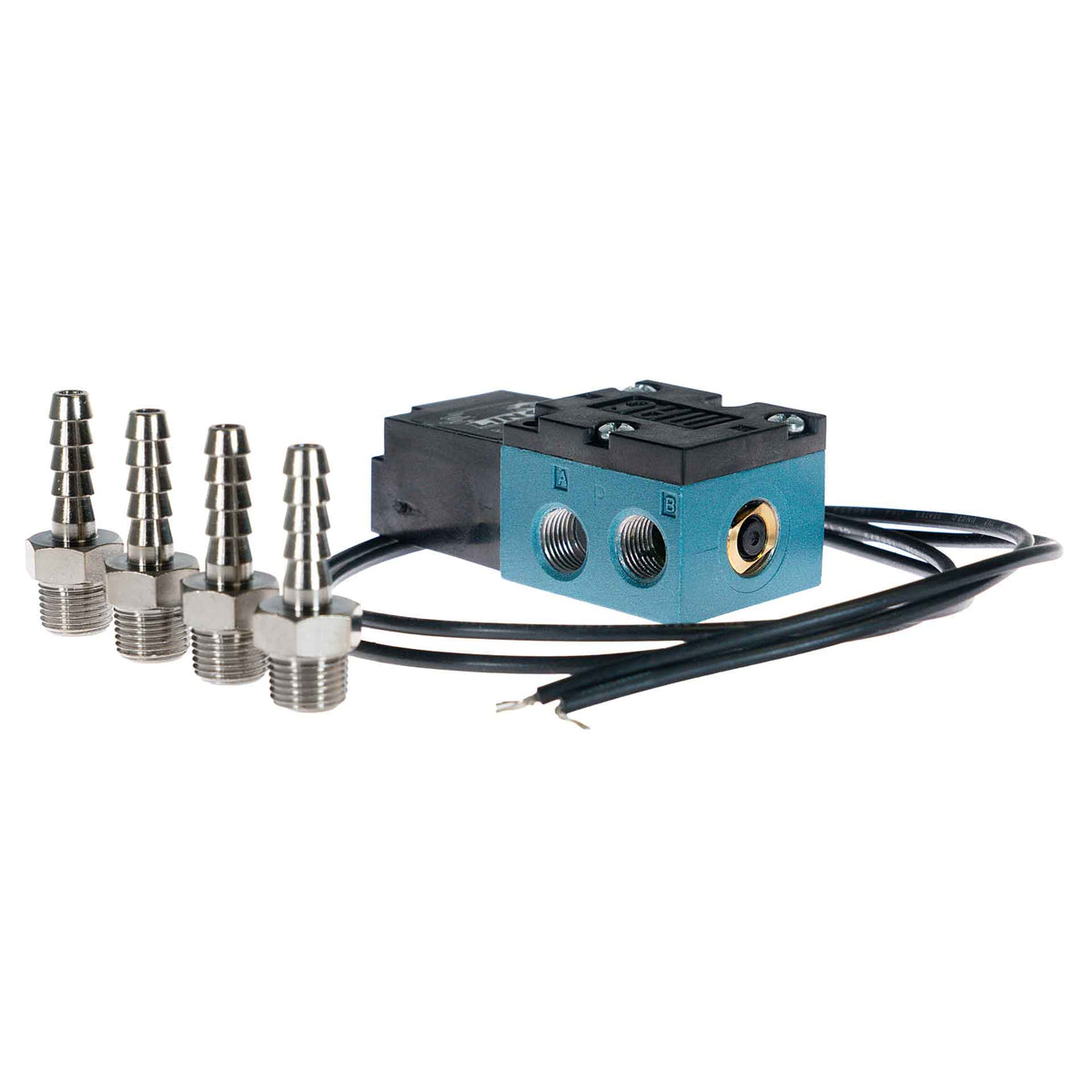

Includes: Boost Control Solenoid (4 port), 4 x Hose Fitting 1/8 BSPT Nickel Plated, Accessory instructions.

Specifications

• Series: MAC 45
• Max Pressure: 120 PSI
• Port Size: 1/8" BSPPL
• Power Requirements: 12 VDC (5.4W) with 18" (45cm) coil leads
• Product Dimensions: 30mm(L)x45mm(W)x25mm(H); 1.18in(L)x1.77in(W)x0.98in(H)
• Product Weight: 135 grams (4.76 ounces)
• Electrical: Operating Voltage Range: 10.2-13.2V; Maximum Continuous Current Draw: 495mA

Notes

• Requires a spare auxiliary output (switched to ground), 12V ignition-switched power supply and a MAP sensor.
• Open or closed loop boost control is configured in the ECU. No additional boost controller required.
• Link recommends starting with a PWM frequency of 25Hz for this solenoid.

Downloads

• User Manual (PDF)
