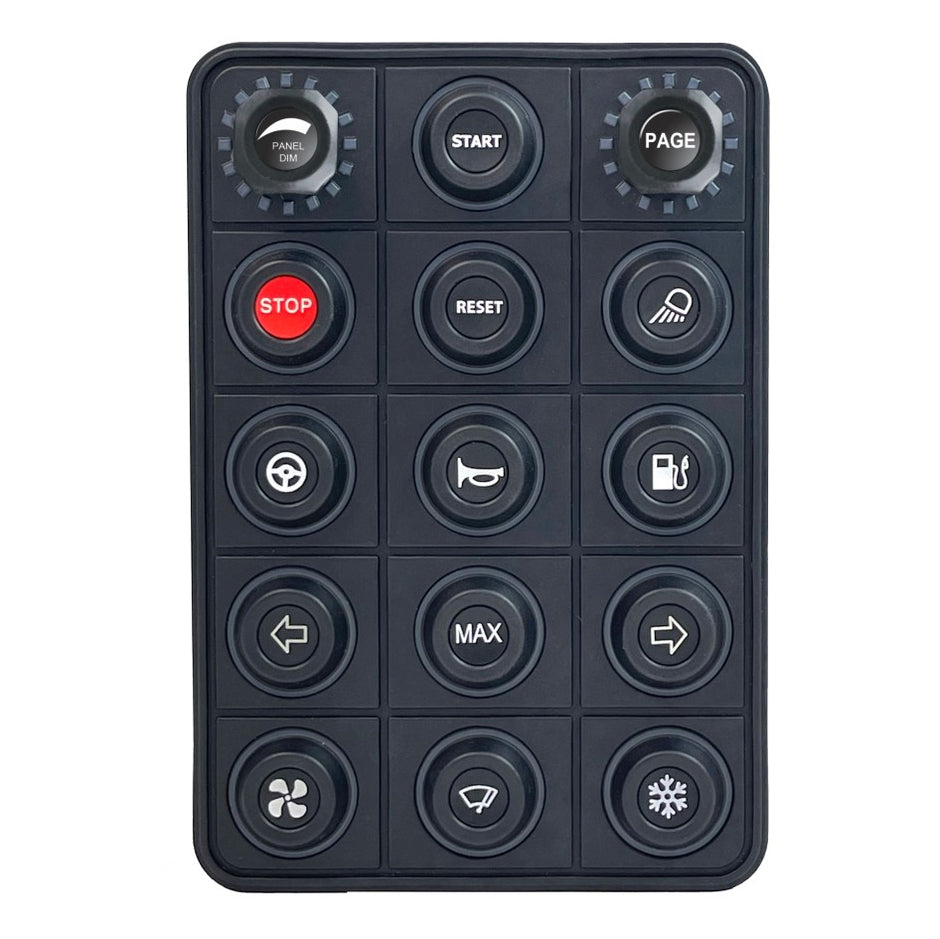

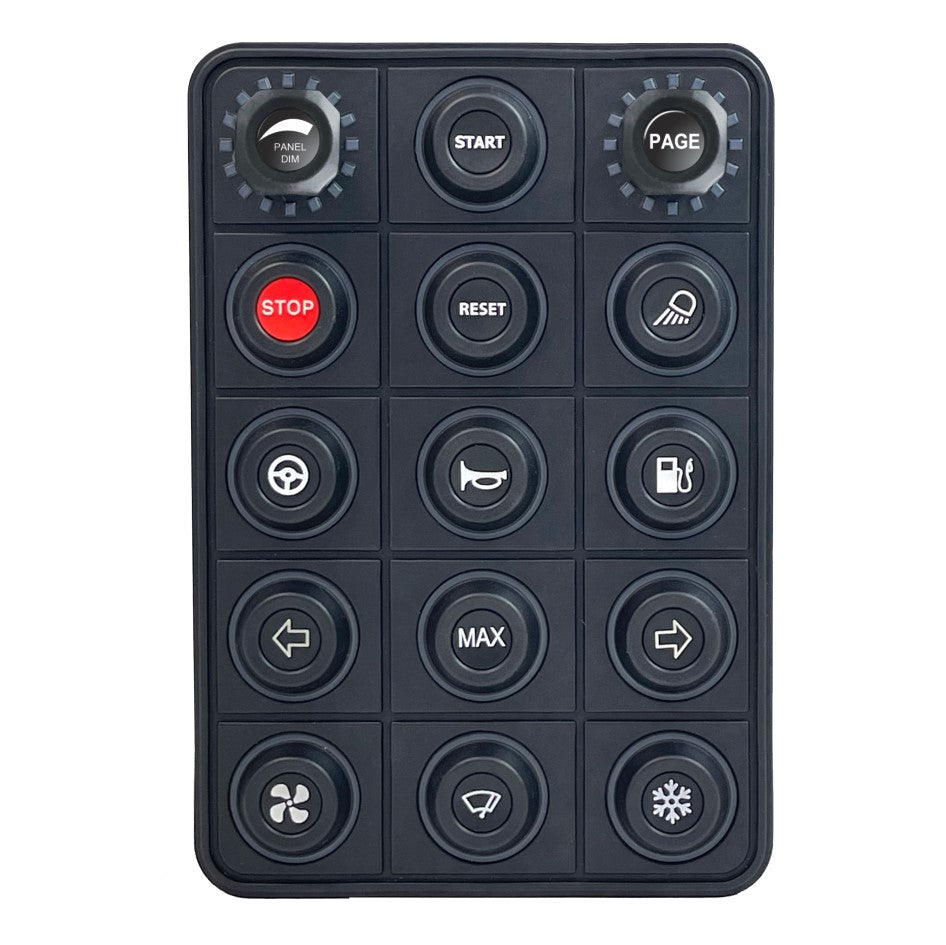

Link CAN Keypad 15 Button + 2 Rotary Encoders - 101-0330

Link 13 button CAN keypad, with two push activated rotary encoders and interchangeable 15mm inserts (sold separately).

The two rotary encoders have 16 Blue indicator LEDs each.

Four additional analog inputs allow additional sensors/switches to directly connect to the CAN Bus network through the keypad.

The compact layout and inclusion of the rotary encoders and analog inputs allow for significant dash space saving while massively expanding functionality.

Models Supported

Compatible with all Link G4X and G5 ECUs

Important

Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included loose in box.

Features

• 15 Buttons and 2 Rotary Encoders (push enabled, buttons can function independent to rotary encoder)
• 4 Analog Inputs for additional Sensors or Switches
• CAN Configurable with G4X/G5 PC Link – Change button LED backlight colour, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.
• CAN Bus Communication back to Engine Management System/PDM
• 16 Blue LED Lights on Rotary Encoders while all 13 Push Buttons have customisable RGB LED Rings
• Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical
• DTM4 Connector for CAN and Power, Molex Connector for Analogue Inputs

Specifications

• Switch Life: 3 million operations
• Default Baud Rate: 1000kbit/s
• Chemical Resistance: Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
• UV Protection: UVB 400 hours
• Product Dimensions: 11x15x5cm
• Product Weight: 360g
• Electrical: Operating Voltage Range: 8-32V, Maximum Input Voltage: 32V, Maximum Continuous Current Draw: <50mA
• What's in the Box: Blink CAN Keypad 13 button + DTM4, Link sticker - Right facing - Clear Gloss - Rectangle 150x72, Keypad Help Manual Card, CAN Keypad Insert - Link, Deutsch 4 way Connector Kit
• Connector: TE Connectivity Deutsch DTM 4-pin and Molex 6-pin 101-0156; Black = Ground, Red = Power, White = CAN High, Blue = CAN Low
