LINK CAN Keypad 4 button 101-0234

Link CAN Keypad 4 button

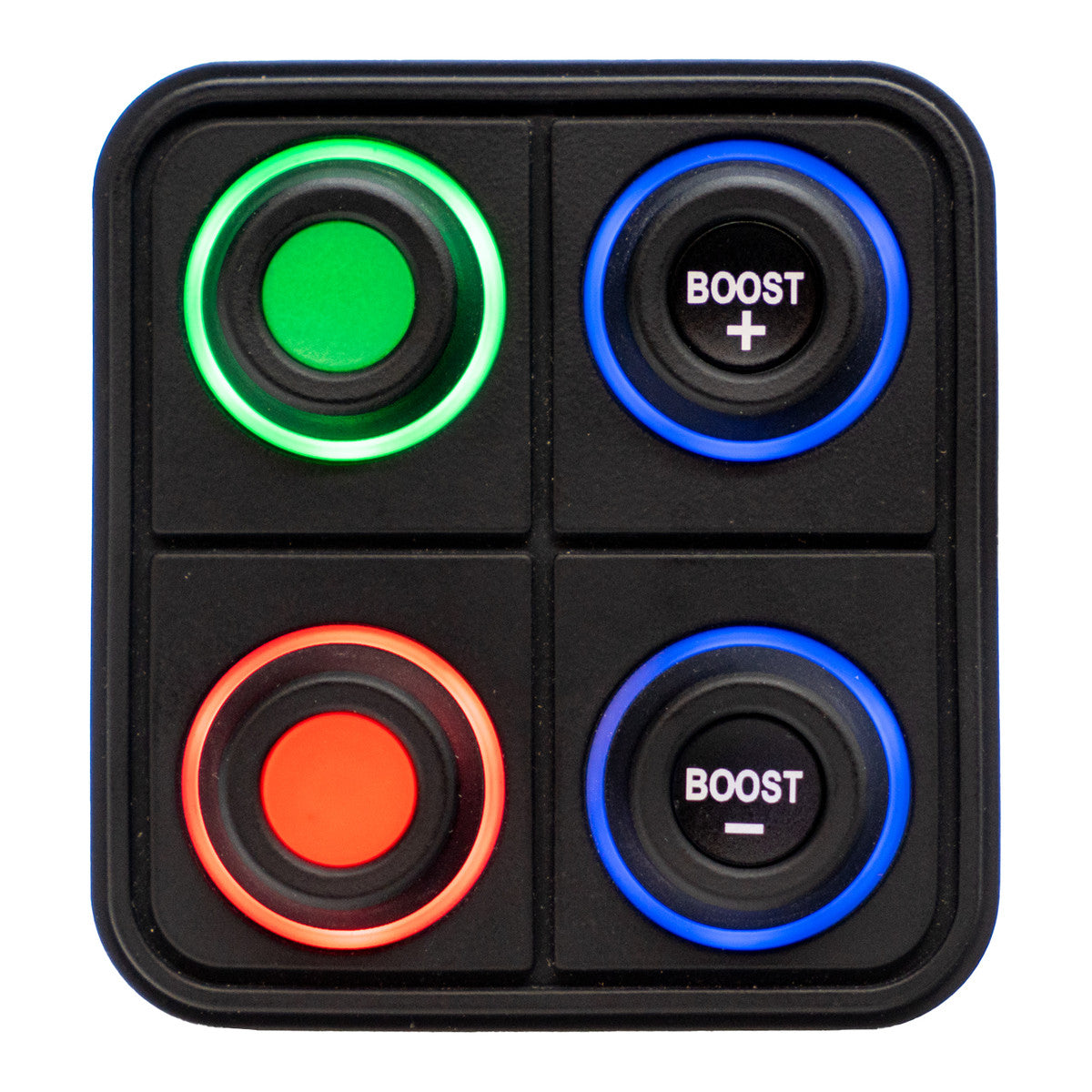

Link 4 button CAN keypad with interchangeable 15mm inserts (sold separately).

Varying button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups. The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations. Can be installed both inside and outside, perfect for street, track and off-road use.

Models Supported

• Compatible with all G4X and G5 ECUs. Built-in support from G4X PC Link vers 6.22 onwards

Important

• Keypad ships with empty button inserts, inserts need to be selected and purchased individually.
• 1 x Link ECU Logo Button Insert included in box loose.

Features

• CAN Configurable with G4X / G5 PC Link: Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.
• Customizable Button Inserts: The replacement system for individual inserts makes modifying the keypad layout simple and economical.
• IP67/IP69K Waterproof rating: Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.

Specifications

• Highlights: Switch Life: 3 million operations; CANopen Node ID: 0x15 (21); Default Baud Rate: 1000kbit/s; Ingress protection Rating: IP67/IP69K; Chemical Resistance: Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid; UV Protection: UVB 400 hours
• Product Dimensions: 6.5x7x4cm
• Product Weight: 95g
• Electrical: Operating Voltage Range: 8-32V; Maximum Input Voltage: 32V; Maximum Continuous Current Draw: <50mA
• Misc.: Mounting Stud Gap (Centre to Centre) 28.8mm; Nuts thread: #10-32; Maximum torque: 0.8Nm
• Connector: TE Connectivity Deutsch DTM 4-pin (101-0156); DTM4 Connector for CAN and Power: Black = Ground; Red = Power; White = CAN High; Blue = CAN Low

What's in the Box

• Blink CAN Keypad 4 position + DTM4
• Keypad Help Manual Card
• CAN Keypad Insert - Link
• Link sticker - Right facing - Clear Gloss - Rectangle 150x72
• Deutsch 4-way Connector Kit
