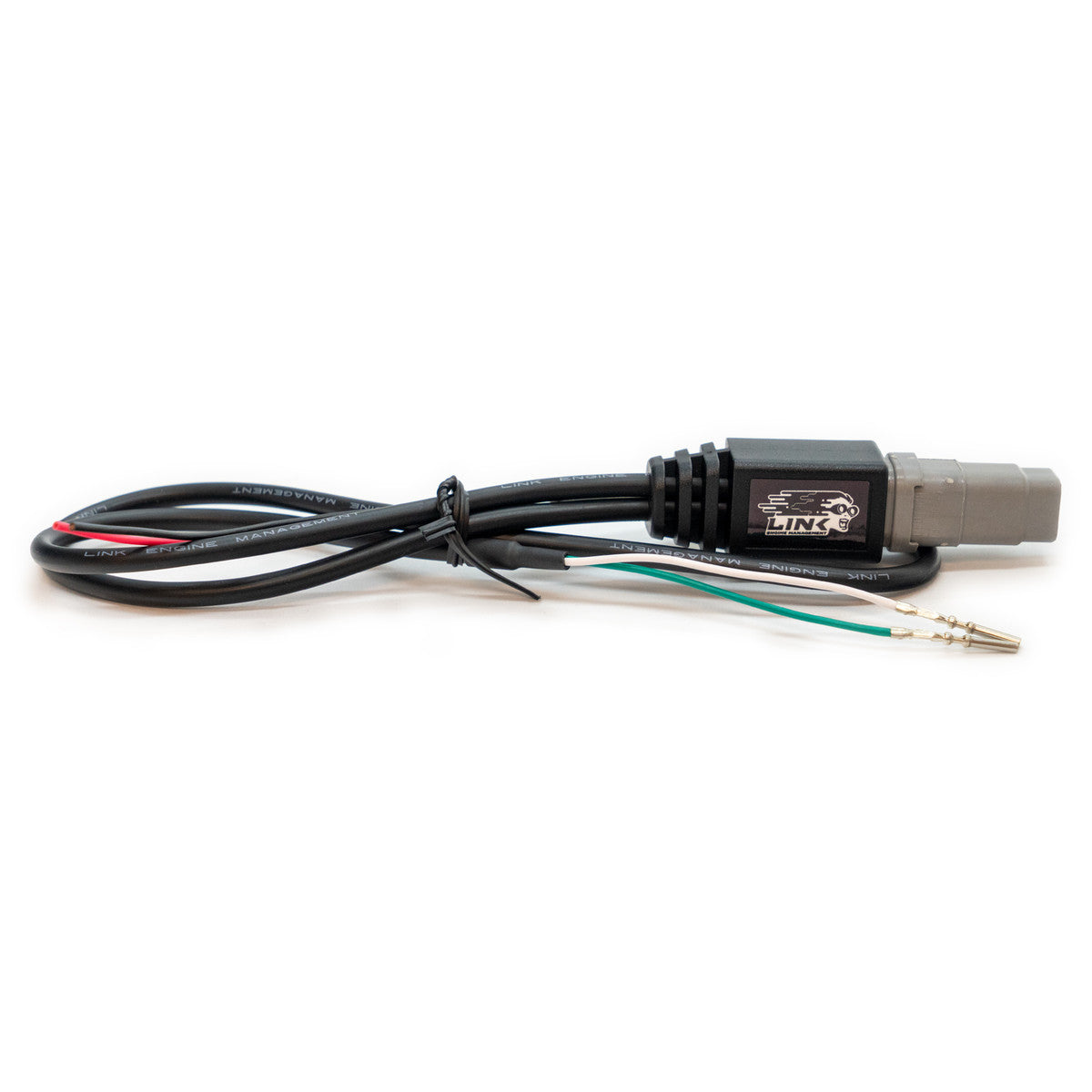

LINK CANSS - CAN Connection Cable for G4X/G4+ WireIn ECU’s (ECU Header CAN) 101-0210

Details

The Link CANSS is required to add CAN communication to Wire-in ECUs which have CAN accessible via the header.

Models Supported

• G4X/G4+ Atom (CAN1)
• G4X/G4+ Monsoon (CAN1)
• G4X/G4+ Storm (CAN2)
• G4X/G4+ Xtreme (CAN2)
• G4X/G4+ Fury (CAN2)
• G5 Voodoo Pro (CAN1)
• G4+ Force (CAN2)
• G4+ Thunder (CAN2)

Specifications

• Product Dimensions: 580mm(L)x20mm(W)x15mm(H); 22.83in(L)x0.79in(W)x0.59in(H)
• Product Weight: 45 grams (1.59 ounces)
• Material: 300mm. Flying leads 500mm long.
• Electrical: Maximum Input Voltage: 300V; Maximum Continuous Current Draw: 3A; Gauges of wire: 20AWG/0.5mm2
• Connector: DTM4 Male to Flying leads; CAN H & L crimped with Superseal terminals; 12V & GND Flying Leads
• Pin Configuration: Pin 4: CAN H; Pin 3: CAN L; Pin 2: Ground; Pin 1: 12V

What's in the Box

• CANSS - Super Seal to DTM4 Cable
