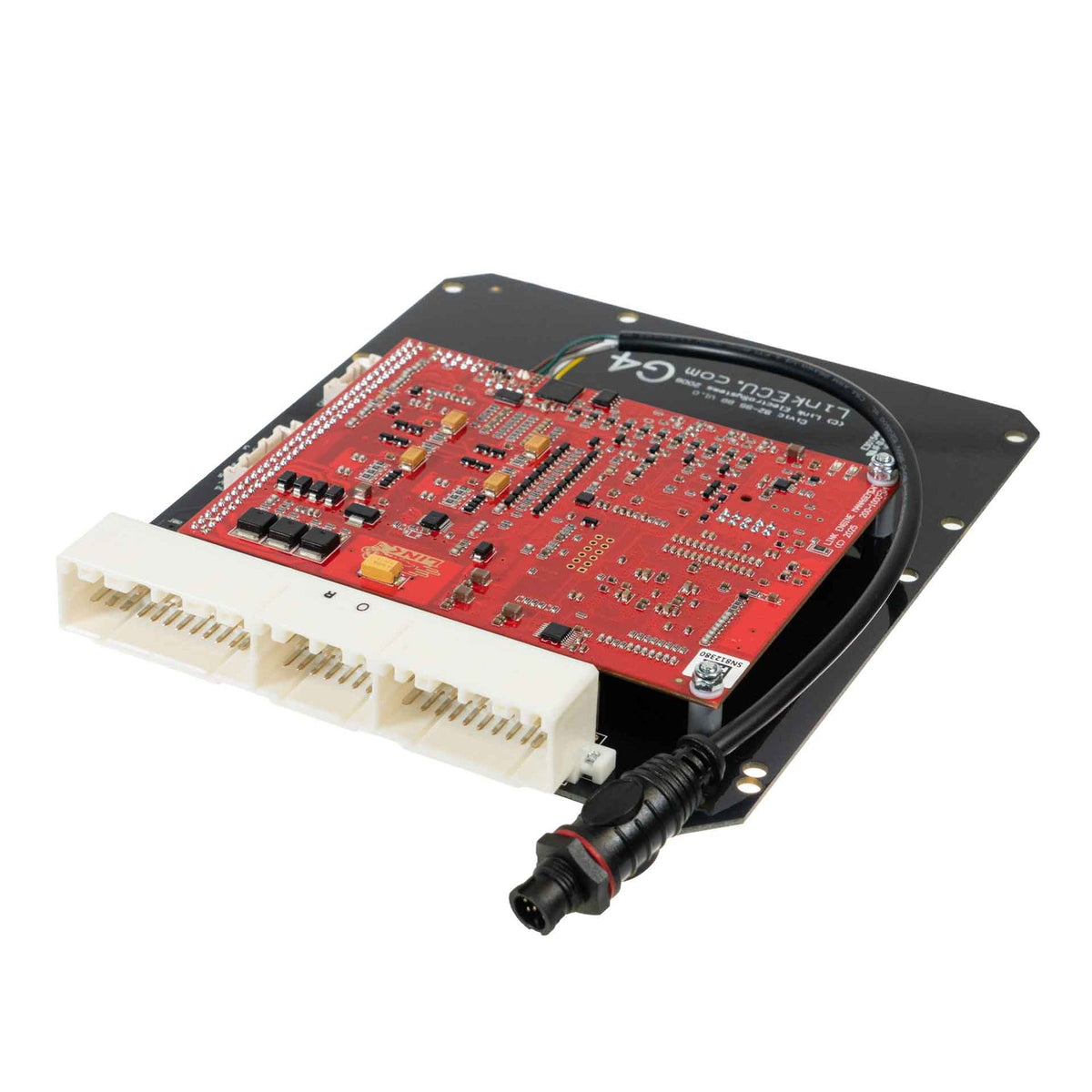

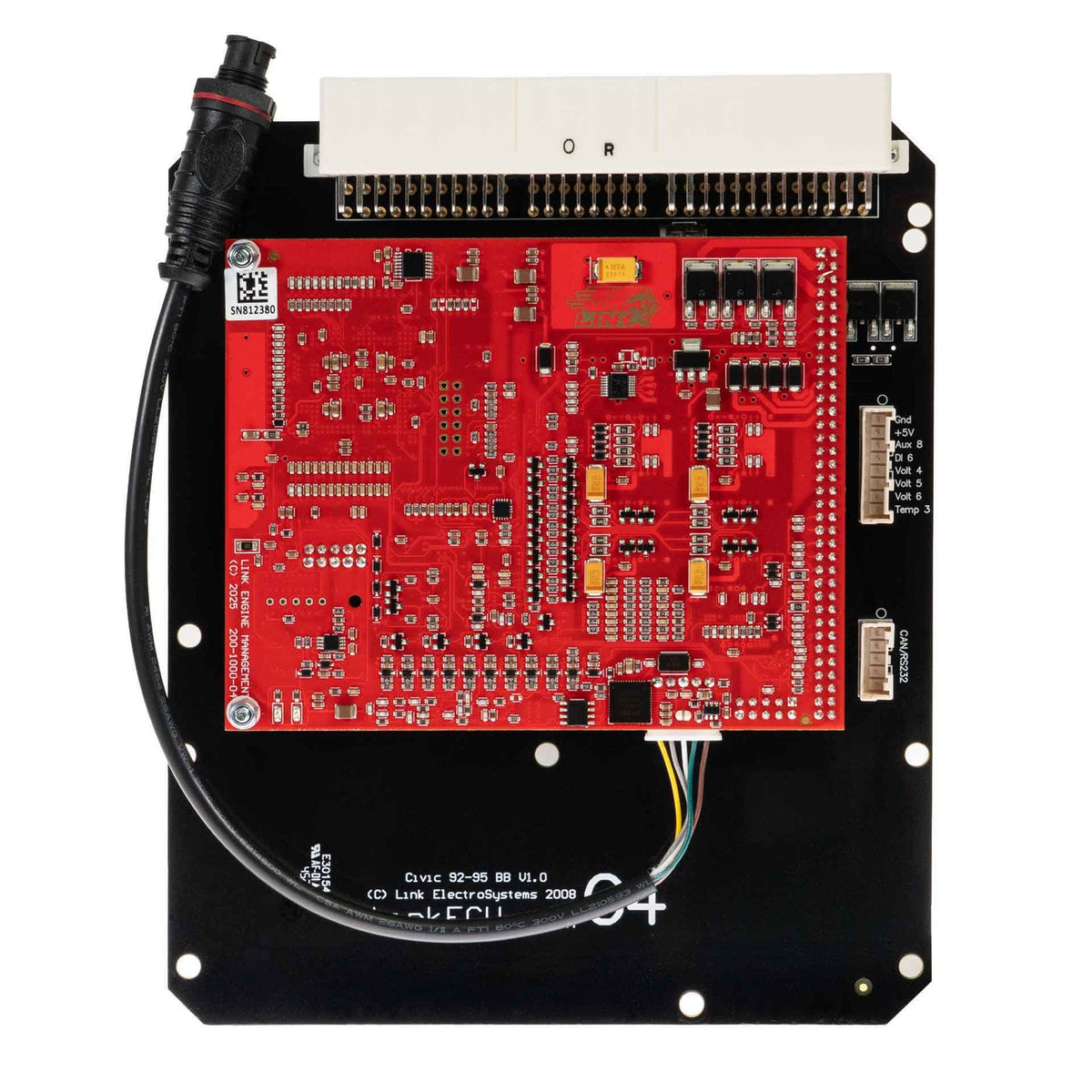

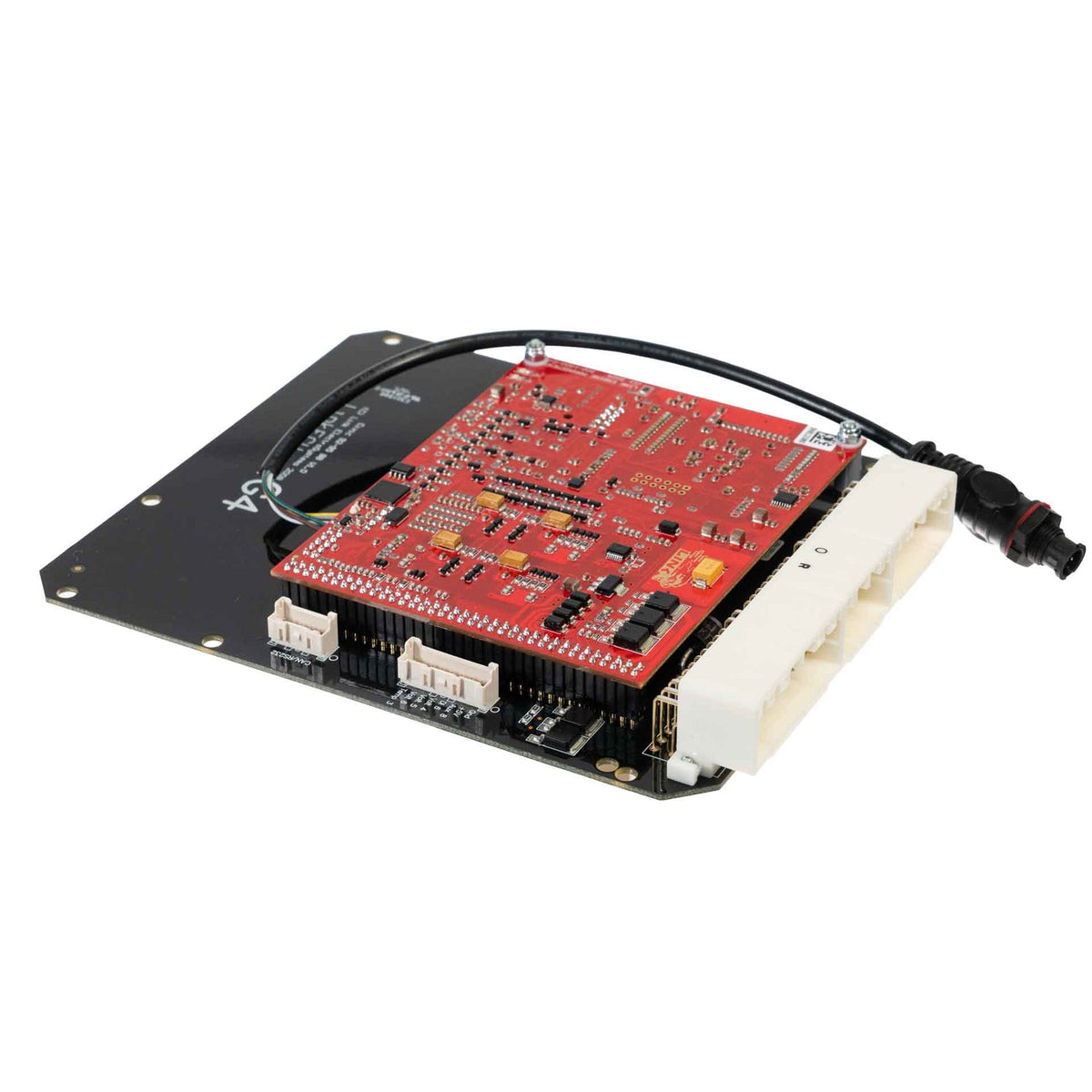

Link HC92X Plug-In ECU (Honda Civic 1992-95, Gen 5) - 205-4000

The HC92X is a G4X plug-in ECU for B16 and B18-powered Hondas and Acuras of the early-to-mid 1990s. It mounts in the factory ECU location using the original mounts, loom and connectors with no rewiring or adapter looms, keeps the factory functions and includes a startup map.

It shares its processor, firmware and PCLink software with Link's G4X range.

Suits: Honda Gen 5 Civic DX/LX/EX/Si (1992-1995); Acura Integra RS/LS/GS/GS-R (1992-1995); Honda Accord DX/LX/EX (1990-1995); Honda Del Sol S/Si (1993-1995) and VTEC (1994-1995); Honda Prelude Si (1990-1991) and S/SE/Si/VTEC (1992-1995). Manual transmission only.

Includes: G4X HC92X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

• Communications: 1 x CAN bus; LTW 6-pin USB tuning connection
• Onboard logging: 512 MB
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 500 mA
• Dimensions: 190 x 160 x 30 mm
• Weight: 260 g
• Inputs/outputs: see the HC92X installation manual

Notes

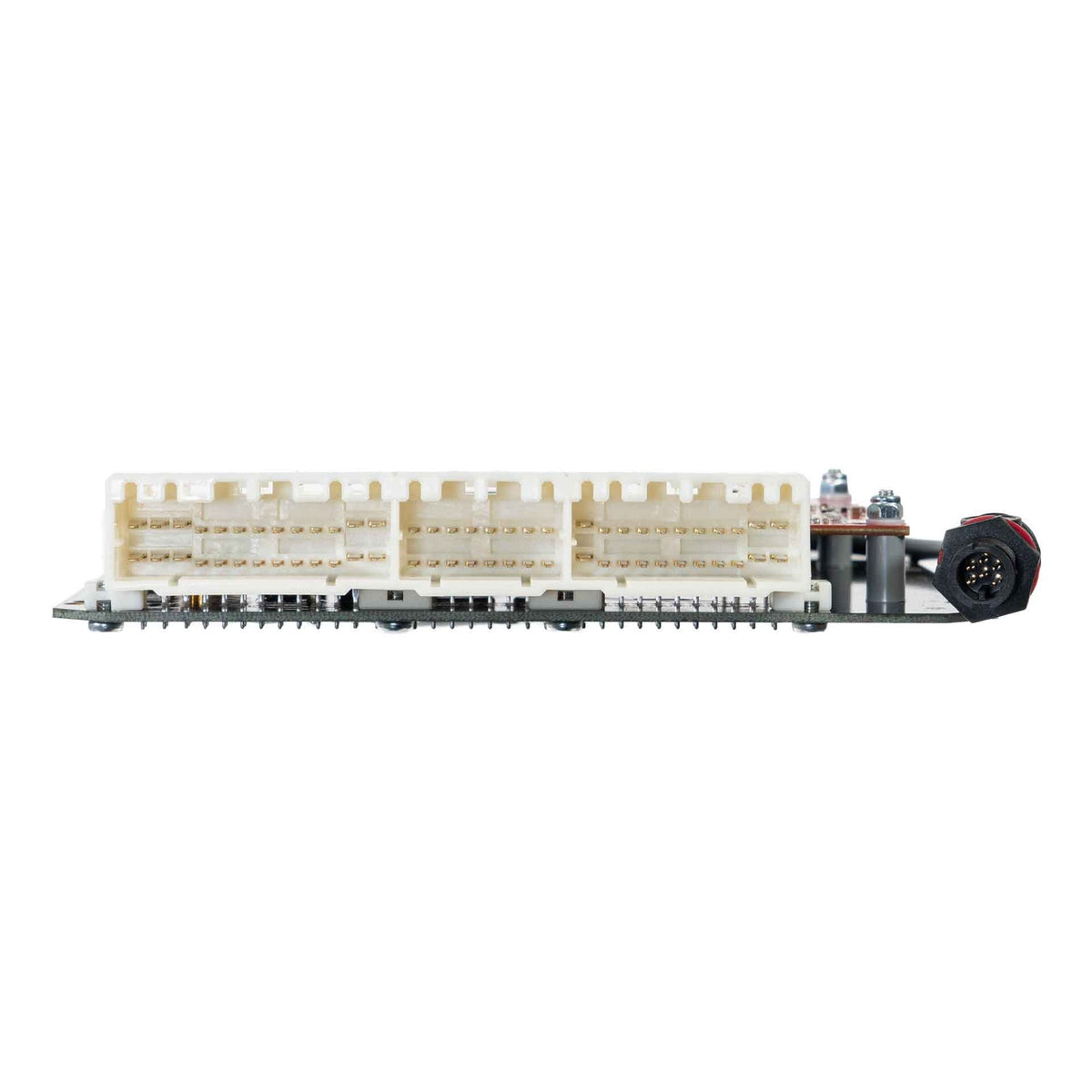

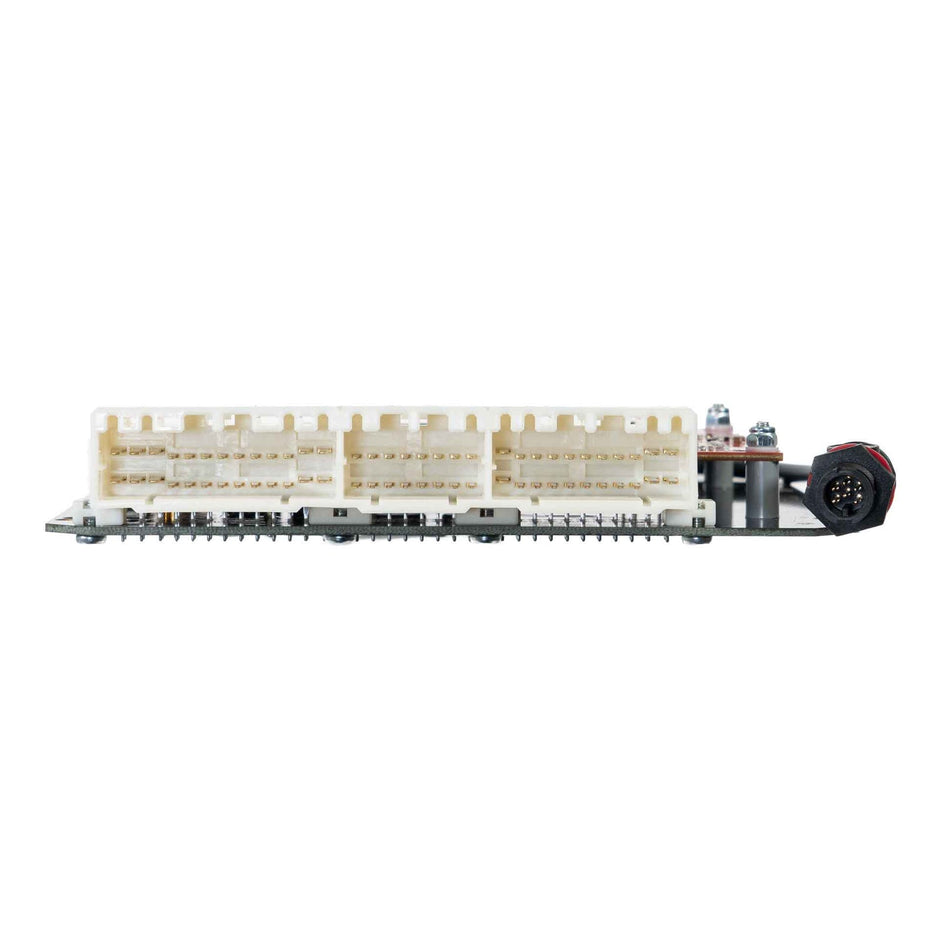

• Check that your connector matches the header shown in the photos before ordering.
• Knock control is not available on this ECU.
• E-throttle requires a modification before it can be used.
• Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

Downloads

• HC92X User Manual (PDF)
• G4X Plug-In ECU Specifications (PDF)
