LINK Combined Pressure and Temperature Sensor (CPTS) 101-0320

Details

The Link Combined Pressure and Temperature Sensor (CPTS) combines pressure and temperature measurement into one compact unit. Designed to monitor liquid pressure and temperature simultaneously, it simplifies wiring, reduces installation space and provides accurate data for engine protection and tuning.

Models Supported

• All Link ECUs
• Other aftermarket ECUs with analogue pressure and temperature inputs

Warnings

• Not suitable for water/coolant
• Maximum permissible overpressure: 20 bar
• Recommended installation torque: 37.5 +/-2.5 Nm
• Install with the sensing tip pointing downwards, within +/-45deg of vertical for optimum performance

Specifications

• Highlights: Genuine Bosch combined pressure and temperature sensor; Measures pressure and temperature simultaneously; Pressure range: 0 to 10 bar; Temperature range: -40degC to +140degC; M10 x 1 thread with 45deg cone seat; Supplied with 5-pin Bosch Trapezoid connector kit
• Product Dimensions: 55mm(L)x30mm(W)x30mm(H); 2.17in(L)x1.18in(W)x1.18in(H)
• Product Weight: 30 grams (1.06 ounces)
• Electrical: Operating Voltage Range: 4.75-5.25V; Maximum Input Voltage: 5.25V
• Connector: 5-pin Bosch Trapezoid
• PCLink Calibration Name: Pressure: "Bosch 10Bar 0 261 230 340"; Temperature: "Bosch NTC 0 261 230 340"

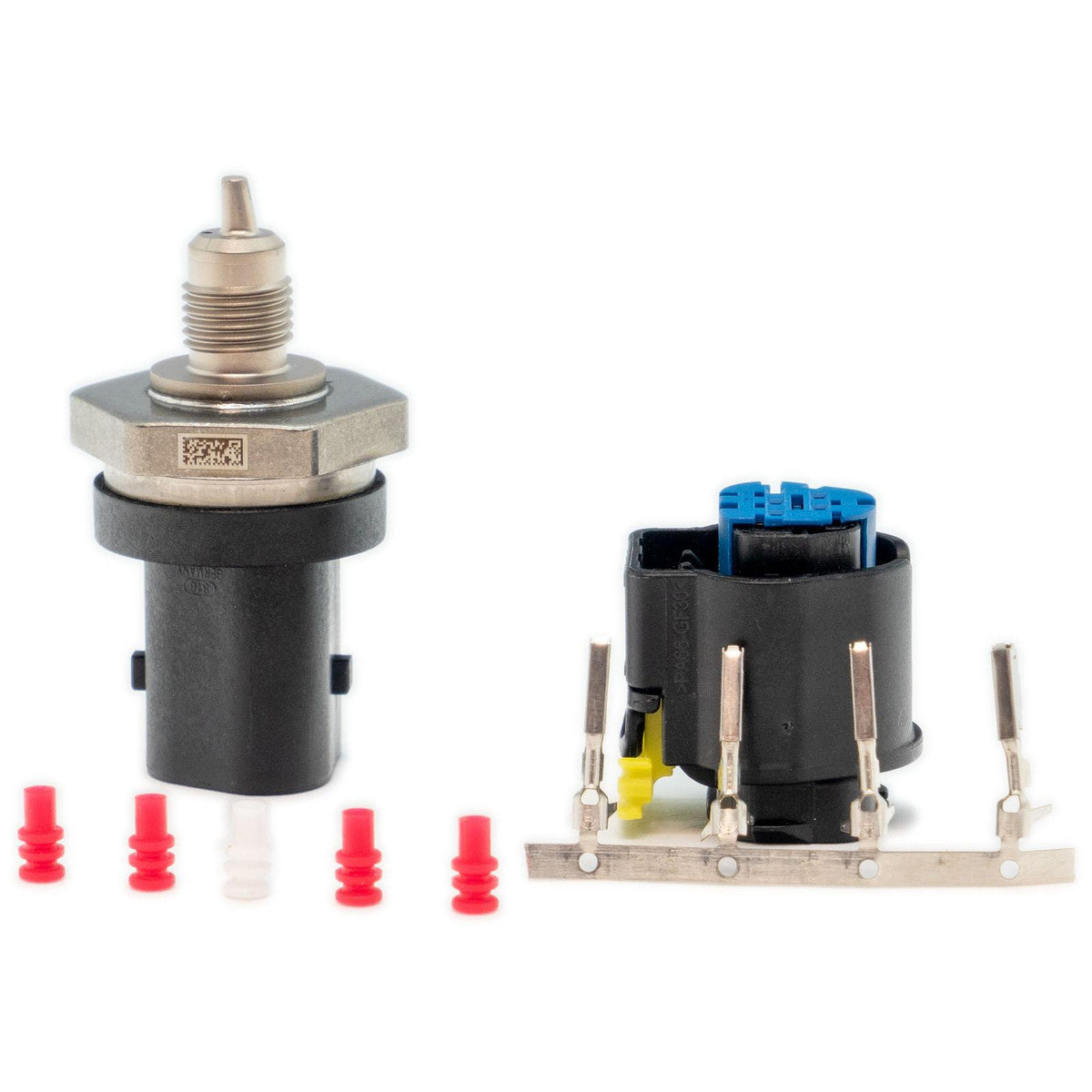

What's in the Box

• Bosch Liquid Pressure/Temp Combined Sensor
• 5-pin Bosch Trapezoid connector kit
• Printed Accessory instructions
