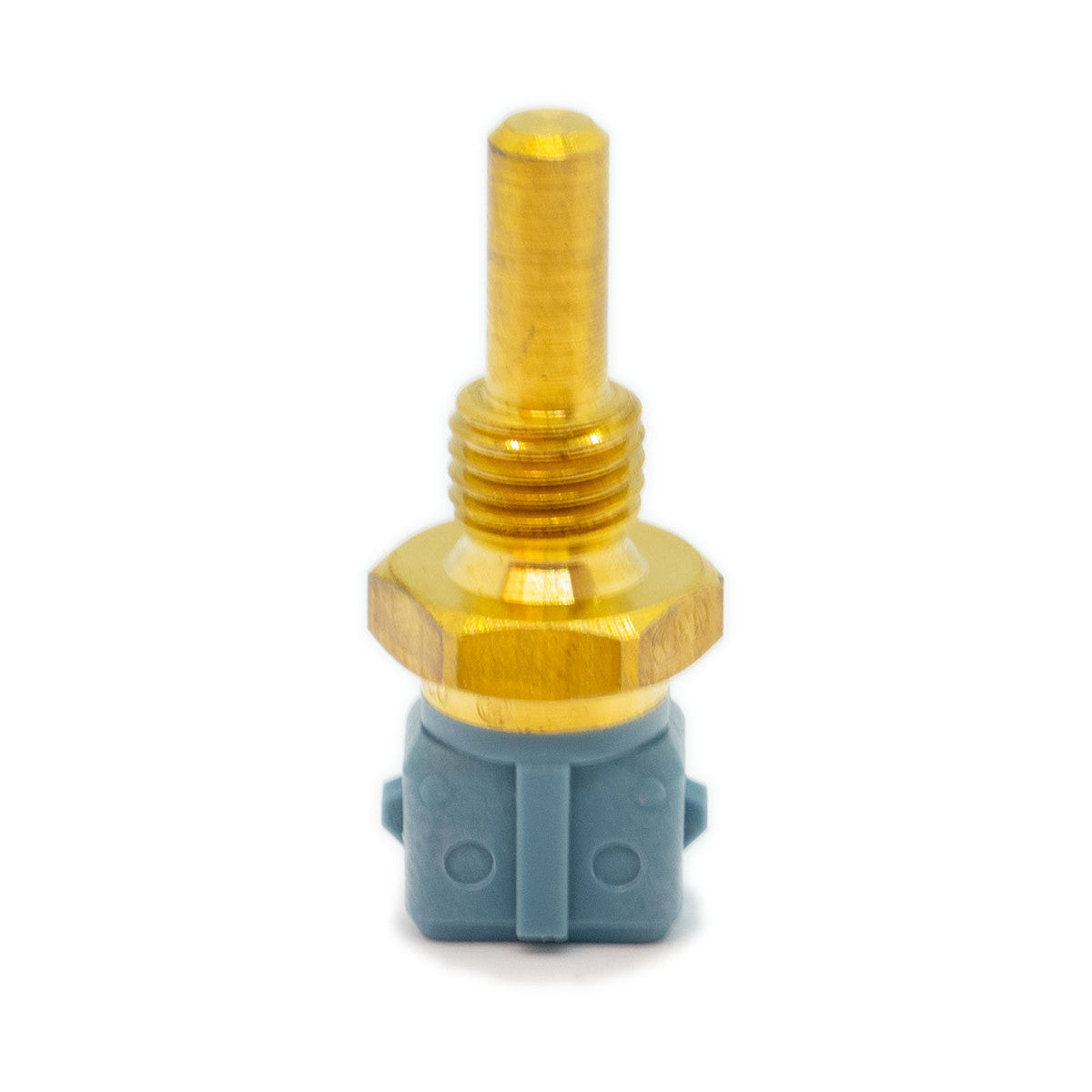

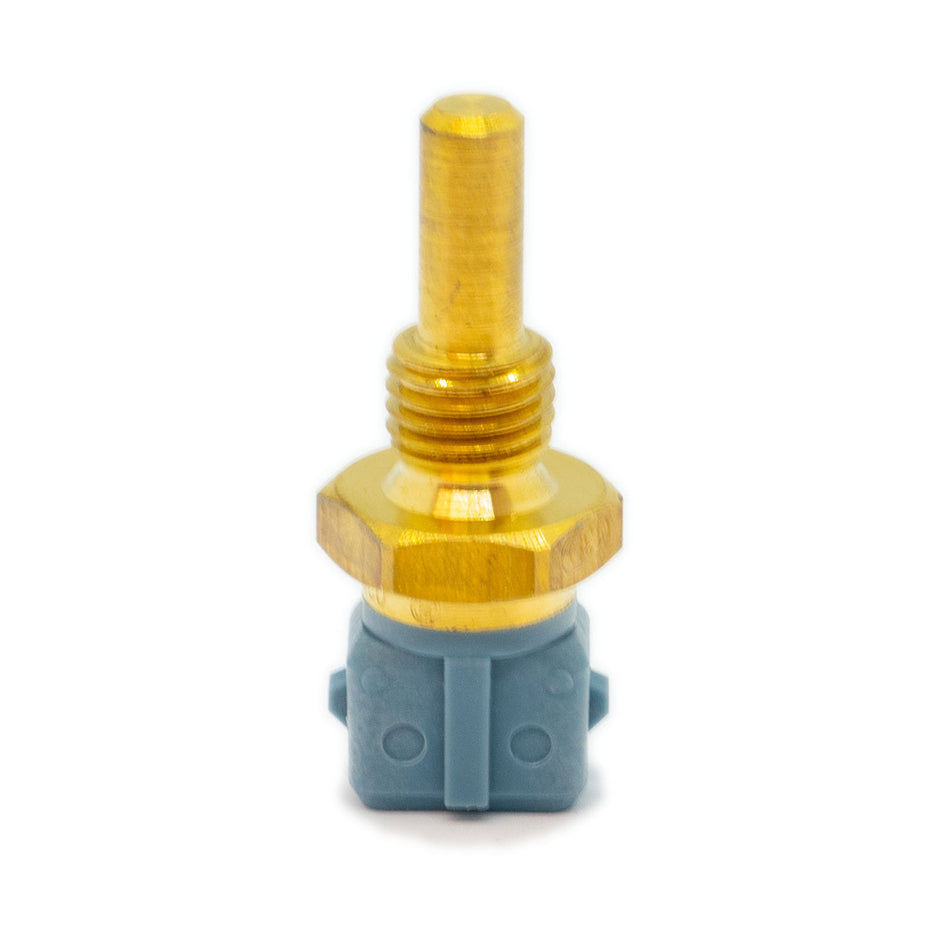

Coolant Temperature Sensor (NTC12)

The Link NTC12 Temperature Sensor is a high-quality NTC thermistor designed to measure fluid temperatures including coolant, oil and fuel. Featuring an M12 x 1.5 thread, operating range from -40degC to 130degC and a compact, robust design, it delivers accurate temperature measurement for a wide range of motorsport and performance applications.

Warnings

• Sealing washer not included. Can be connected to most ECUs directly to a Temp Input or to an Analog Input using an external pull-up resistor to 5V. Any mounting orientation is suitable.

Specifications

• Sensor Type: NTC thermistor
• Thread: M12 x 1.5 male thread
• Temperature Range: -40degC to 130degC
• Nominal Resistance: 2.5k ohm +/-5% @ 20degC
• Accuracy @ 25degC: +/-1.4degC
• Accuracy @ 100degC: +/-3.4degC
• Response Time (tau63): <15s (still water)
• Connector: Bosch Jetronic connector
• Compatibility: E85 compatible
• Product Dimensions: 50.5mm(L)x25mm(W)x20mm(H); 1.97in(L)x0.98in(W)x0.79in(H)
• Product Weight: 29 grams (1.02 ounces)
• Operating Voltage Range: 5V
• PCLink Calibration Name: "Link NTC12 & IATB" OR "Std Bosch NTC"

Raw Calibration Specs

• -40degC: 45,313 ohm
• -30degC: 26,114 ohm
• -20degC: 15,462 ohm
• -10degC: 9,397 ohm
• 0degC: 5,896 ohm
• 10degC: 3,792 ohm
• 20degC: 2,500 ohm
• 30degC: 1,707 ohm
• 40degC: 1,175 ohm
• 50degC: 834 ohm
• 60degC: 596 ohm
• 70degC: 436 ohm
• 80degC: 323 ohm
• 90degC: 243 ohm
• 100degC: 187 ohm
• 110degC: 144 ohm
• 120degC: 113 ohm
• 130degC: 89 ohm
• 140degC: 72 ohm
• 150degC: 55 ohm

What's in the Box

• Fluid Temp Sensor M12
• Bosch Style 2 way Plug, Pin and Boot
