Link Crank Angle Sensor (CAS) - 101-0025

Part Number: 101-0025
Authorized Link ECU Dealer Ships from Calgary
Link Black Friday Sale: long ETA We place our Link sale order after the sale ends on Nov 30. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order. support@boostfactory.ca

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Stock: 0

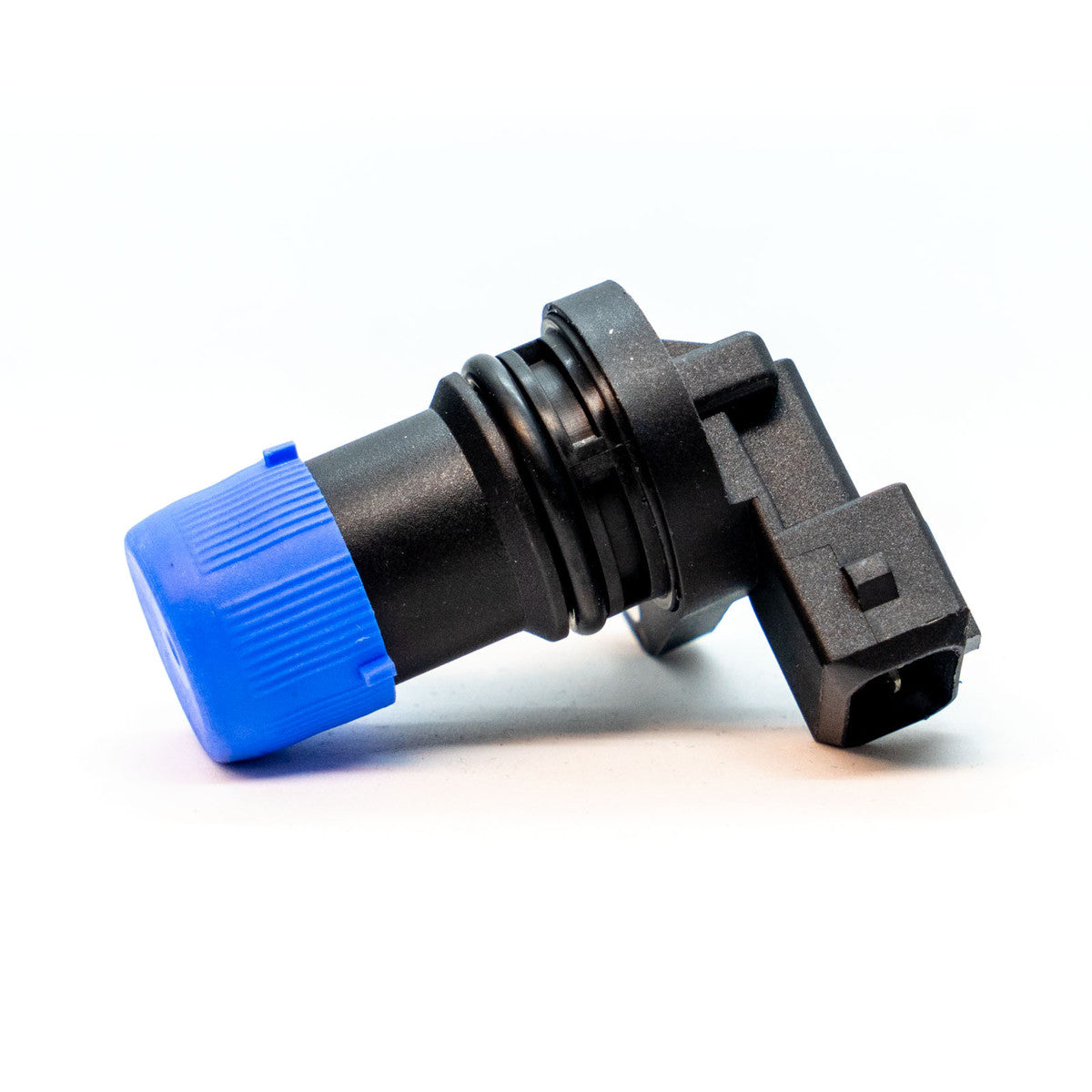

Link Crank Angle Sensor (CAS) - 101-0025

A variable reluctance (VR) sensor that reads crank angle from a trigger wheel, one of the most important signals for engine operation. It works with almost any steel trigger wheel fitted to the crankshaft.

Suits: Link ECUs (and other ECUs with VR trigger inputs) on crank-mounted steel trigger wheels.

Includes: Crank VR sensor with plug and pins, Bosch-style plug, pin and boot (101-0051).

Specifications

  • Wiring: Reference + to Trigger 1 (signal) on the Link ECU, Reference - to sensor ground
  • Operating voltage range: ±60 V
  • PCLink calibration name: Reluctor
  • Dimensions: 55 x 40 x 45 mm (2.17 x 1.57 x 1.77 in)
  • Weight: 30 g (1.06 oz)

Notes

  • Not recommended for the cam signal.
  • Shield the signal wires and set the sensor gap to about 0.5 mm.
  • Depending on the ignition strategy, you may also need a cam/Trigger 2 sensor (101-0280). See the PCLink help file.
  • Link recommends installation and setup by an official Link dealer.

You may also need

A Hall Effect Sensor Kit (101-0280) for the cam signal, and a Link trigger wheel such as the TWL 60-2 (101-0101).
