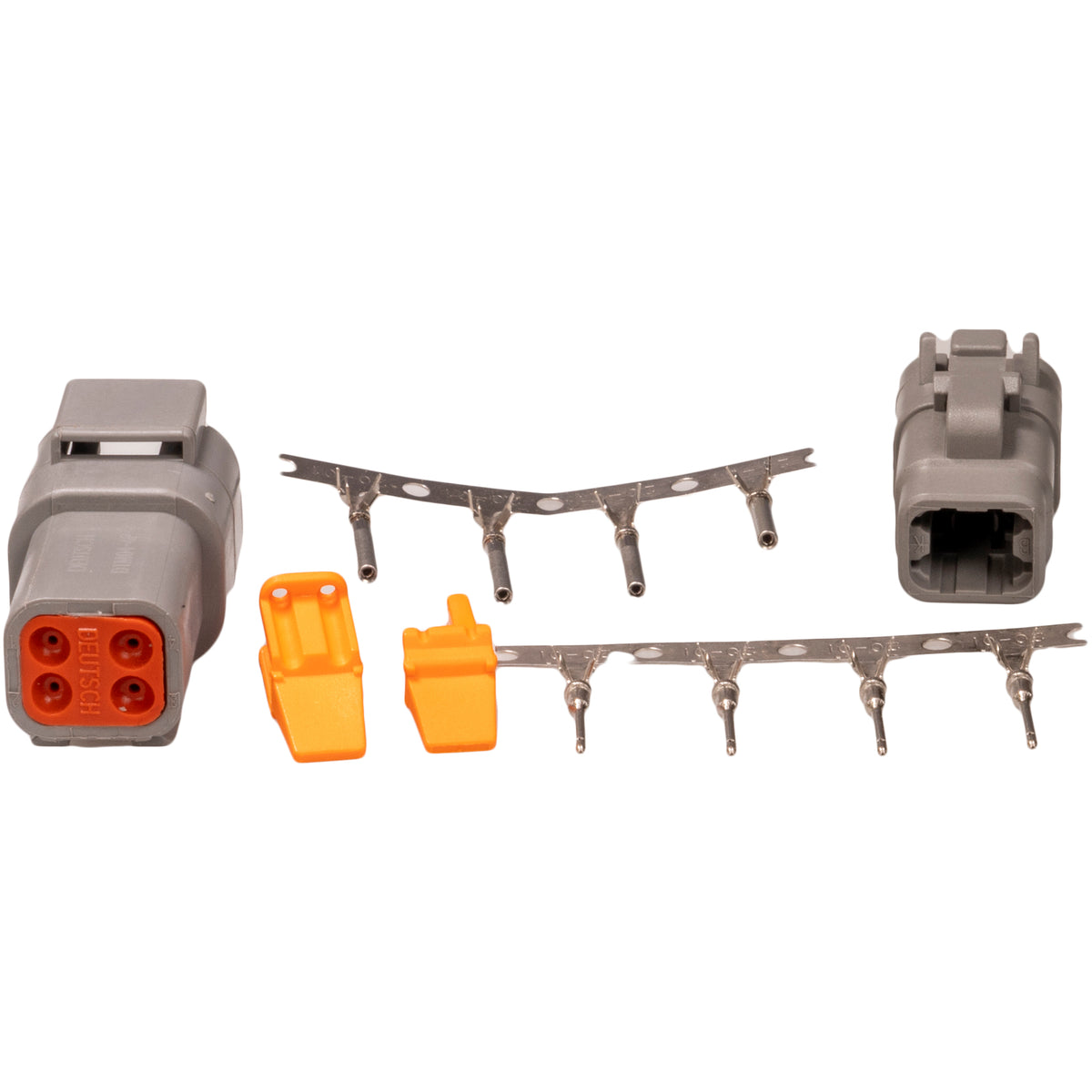

Link Deutsch DTM4 Connector Kit - 101-0283

Link Deutsch DTM4 Connector Kit - 101-0283

A 4-pin Deutsch DTM (DT Mini) connector kit, the go-to standard for aftermarket automotive wiring. Pins can be removed and re-inserted easily, so fixing mistakes or modifying a harness is simple, and the connectors are environmentally sealed for harsh conditions.

Suits: Custom harness work and Link CAN devices that use the DTM4 CAN pinout.

Includes: Deutsch DTM4 connector kit.

Specifications

• 4-pin, environmentally sealed
• Open-barrel terminals (no machined/closed-barrel crimper needed)
• Rated up to 7.5 A per circuit, maximum 250 V
• Wire gauge: 22 AWG (0.35 mm²) to 16 AWG (1 mm²)
• Packaged dimensions: 6 x 6 x 2 cm; weight 15 g

Notes

• Link recommends installation and setup by an official Link dealer.

You may also need

A Link loom crimping tool CTSS (101-0229).
