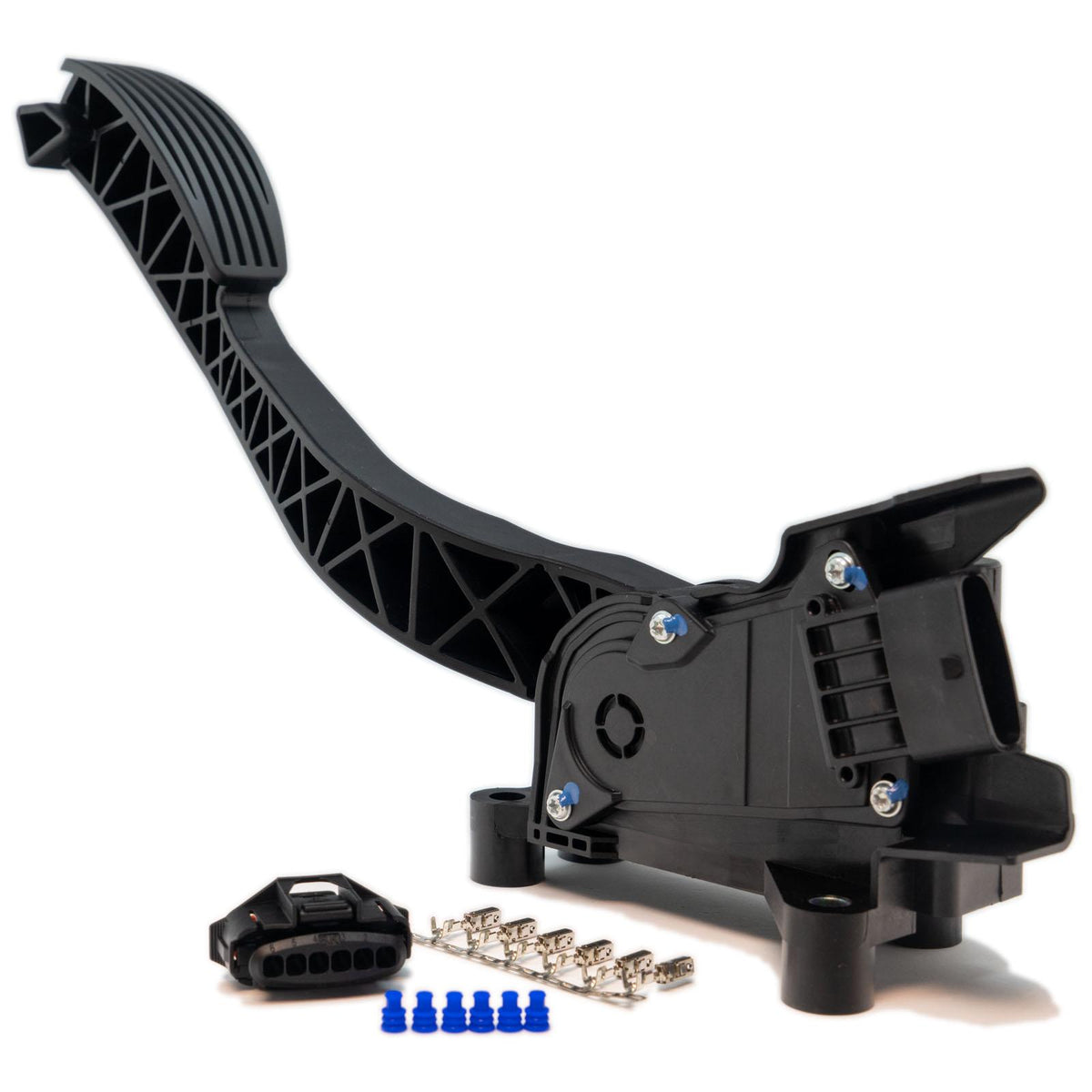

LINK E-Throttle Accelerator Pedal Module (PED) 101-0188
$355.99
$355.99

Link E-Throttle Accelerator Pedal Module (PED) - 101-0188

Part Number: 101-0188
Authorized Link ECU Dealer Ships from Calgary
Special order item Special order from Link. Contact us for current order and delivery times. support@boostfactory.ca

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Stock: 0

E-Throttle Accelerator Pedal Module

  • Firewall mounted hanging design
  • 16degree (~70mm) travel
  • Redundant dual output potentiometers suitable for use with Electronic throttle bodies
  • Includes 6 pin mating connector kit

Technical Specs

Further details on E-Throttle setup can be found in the PC Link helpfile.

Specifications

  • Pin 1 = 5V
  • Pin 2 = 5V
  • Pin 3 = Sensor Ground
  • Pin 4 = AP Main Output
  • Pin 5 = Sensor Ground
  • Pin 6 = AP Sec Output

Manuals & Install Guides
