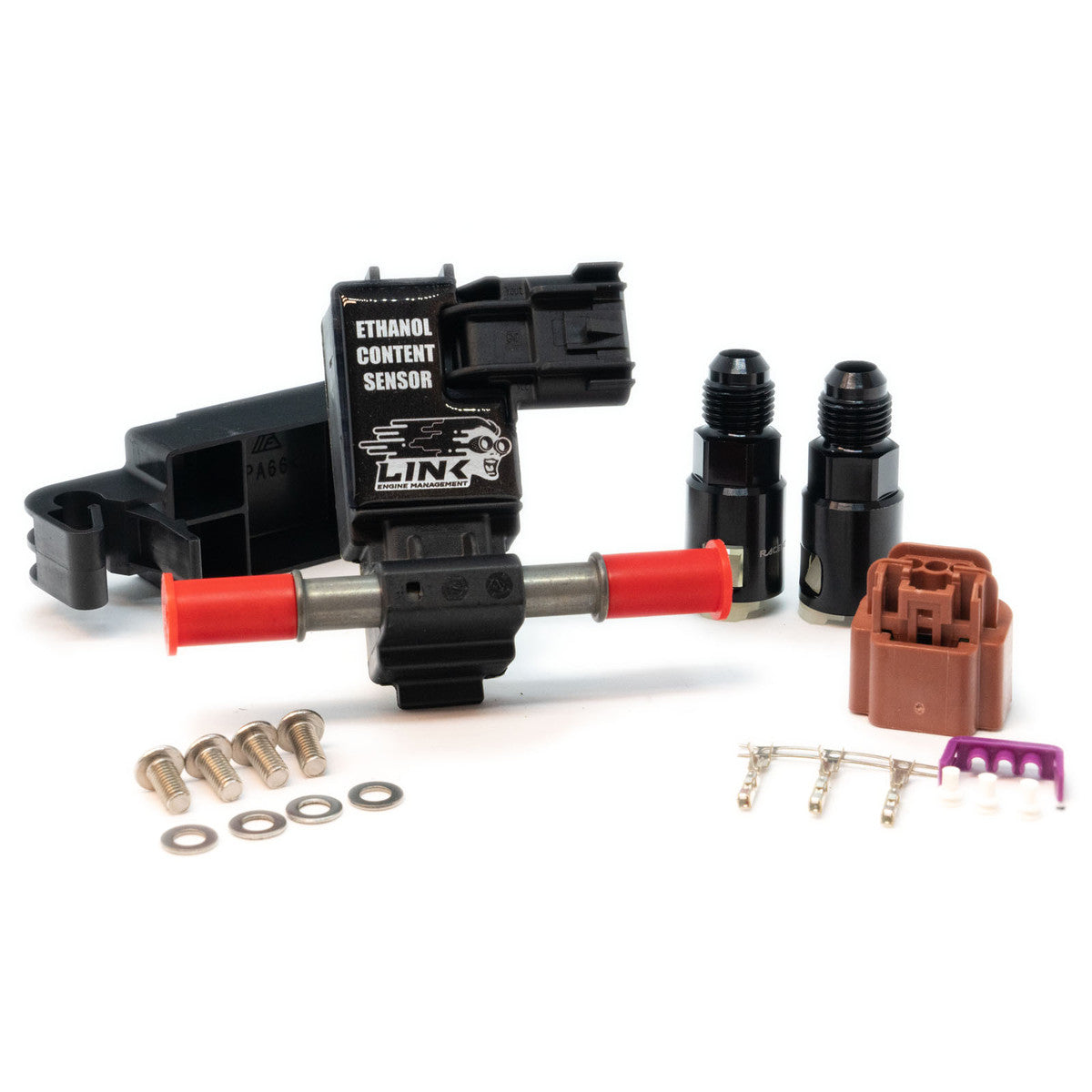

LINK Ethanol Content Sensor (ECS) 101-0034

Details

The Link Ethanol Content Sensor is a genuine Continental Flex Fuel Sensor that measures the ethanol content and temperature of the fuel flowing through it. When used with a compatible Link ECU, it enables automatic adjustment of fuel, ignition and boost settings based on the ethanol content of the fuel, allowing the engine to seamlessly adapt to changing fuel blends.

Models Supported

• Link G4+/G4X/G5 ECU's
• Petrol and ethanol fuel blends, including E85

Warnings

• Install the sensor in the fuel return line between the fuel pressure regulator and the fuel tank. Requires a 12 V power supply, battery ground and a single Digital Input on the ECU. The ethanol content and fuel temperature outputs must be configured in the ECU software.

Specifications

• Highlights: Genuine Continental Flex Fuel Sensor; Measures ethanol content and fuel temperature; AN-6 male fittings; Digital output signal; Includes connector and pin kit; Ethanol content output: 50-150 Hz = 0-100% ethanol; Fuel temperature output: 1-5 ms pulse width = -40degC to 125degC
• Product Dimensions: 130mm(L)x130mm(W)x40mm(H); 5.12in(L)x5.12in(W)x1.57in(H)
• Product Weight: 130 grams (4.59 ounces)
• Electrical: Operating Voltage Range: 9-18V; Maximum Input Voltage: 18V; Maximum Continuous Current Draw: 20mA

What's in the Box

• Ethanol Content Sensor
• AN-6 adapter fittings
• 3-pin connector kit
