Link Ethanol Content Sensor (ECS) - 101-0034

Link Ethanol Content Sensor (ECS) - 101-0034

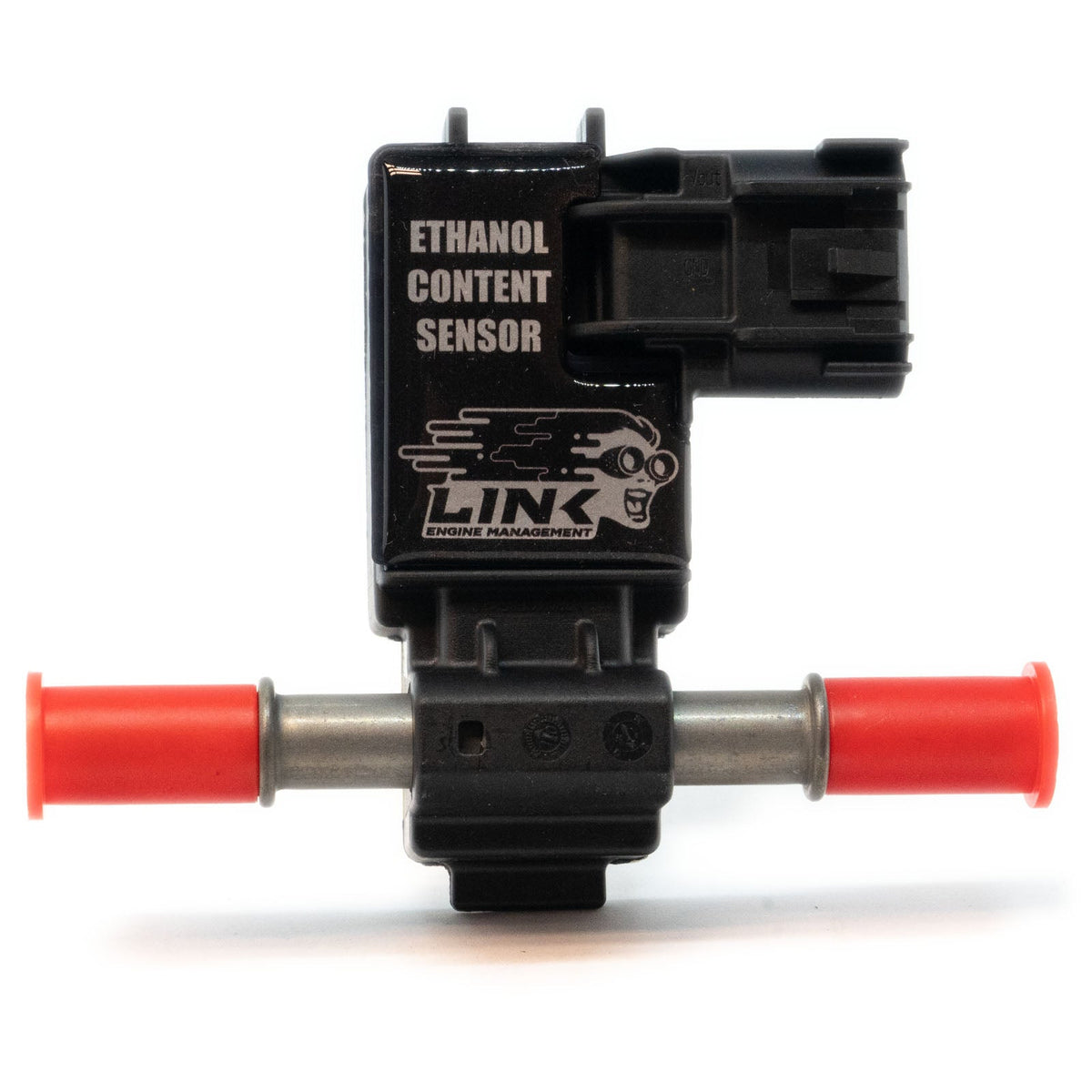

A genuine Continental Flex Fuel Sensor that measures the ethanol content and temperature of the fuel passing through it. With a compatible Link ECU, fuel, ignition and boost can be adjusted automatically to suit whatever blend is in the tank.

Suits: Link G4+, G4X and G5 ECUs running petrol and ethanol blends, including E85.

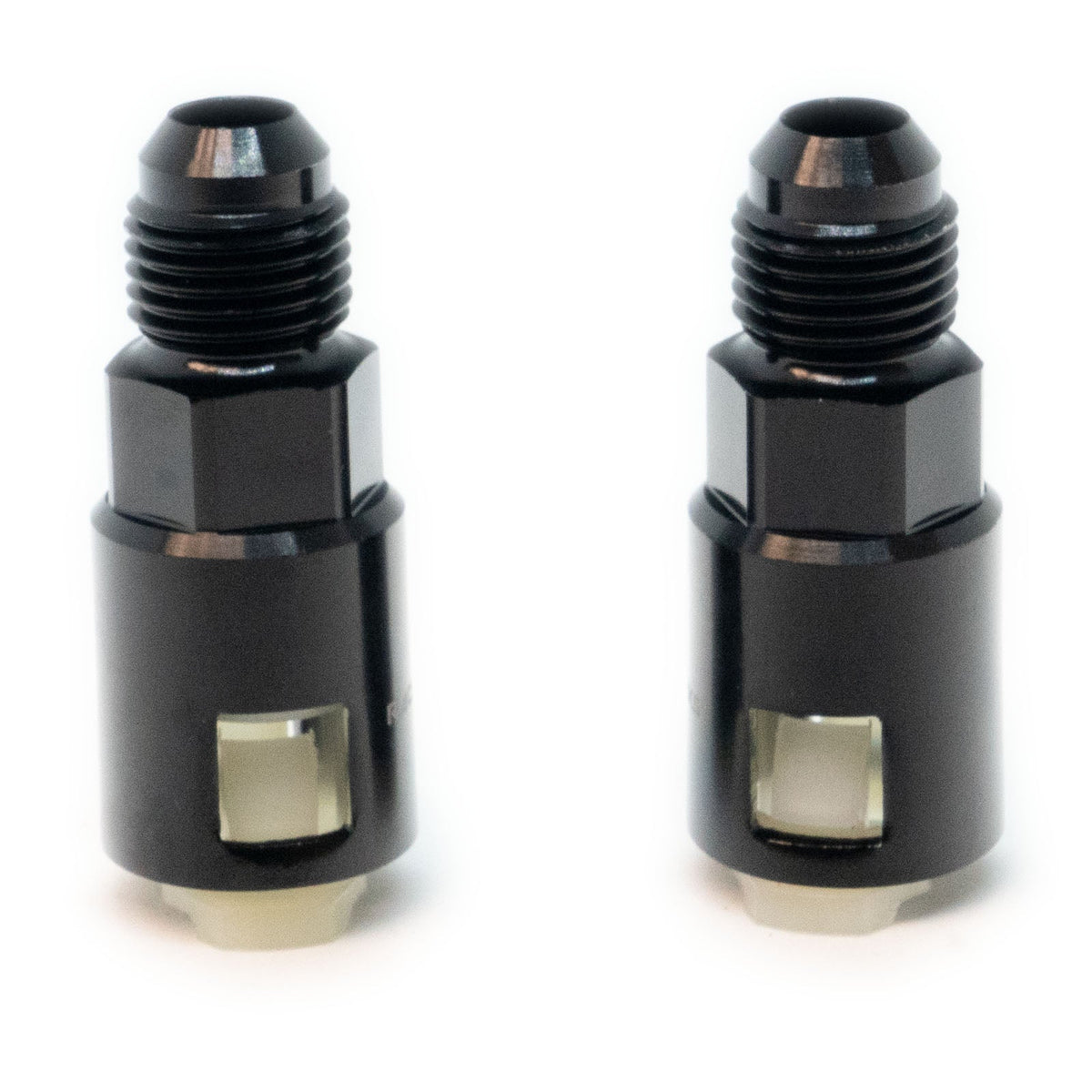

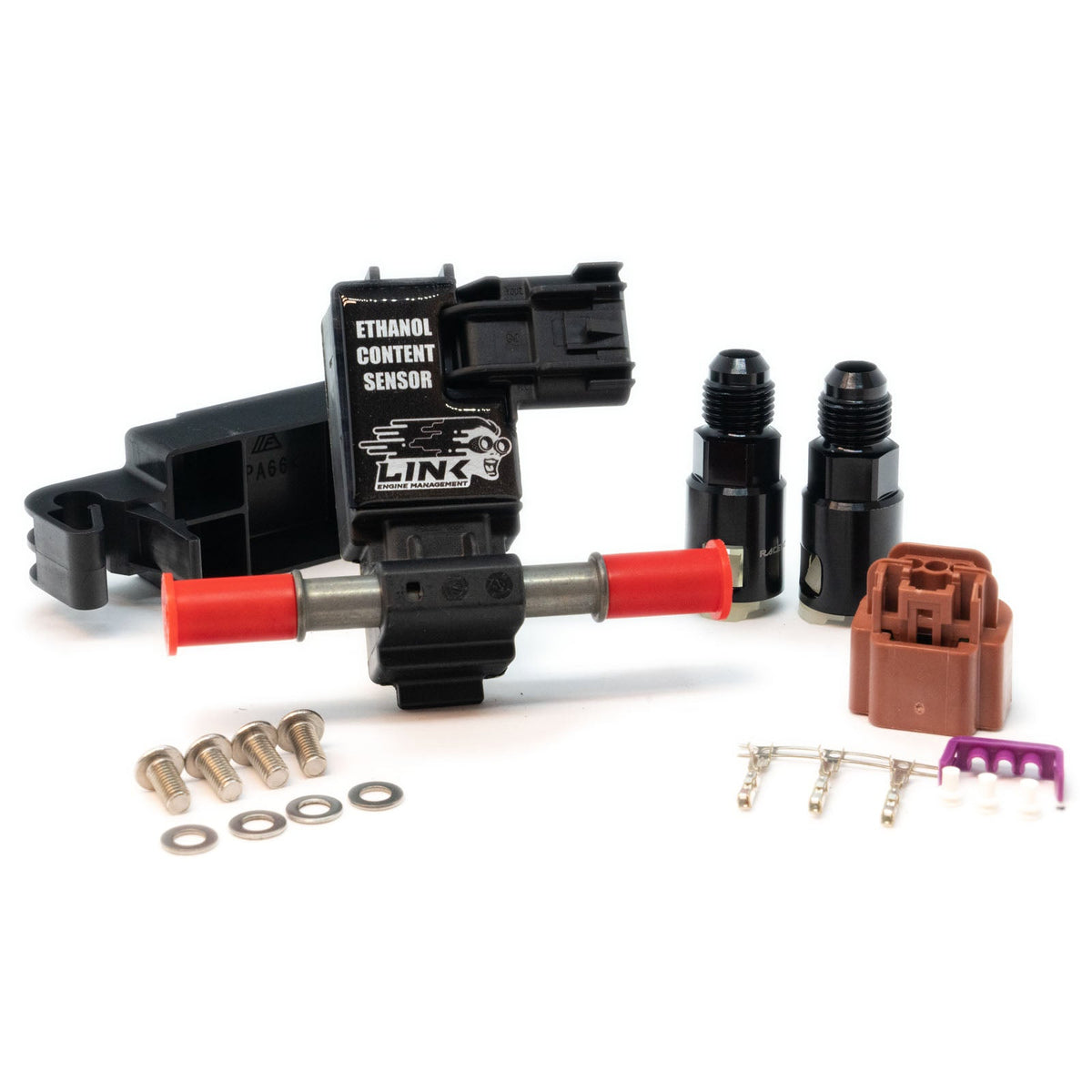

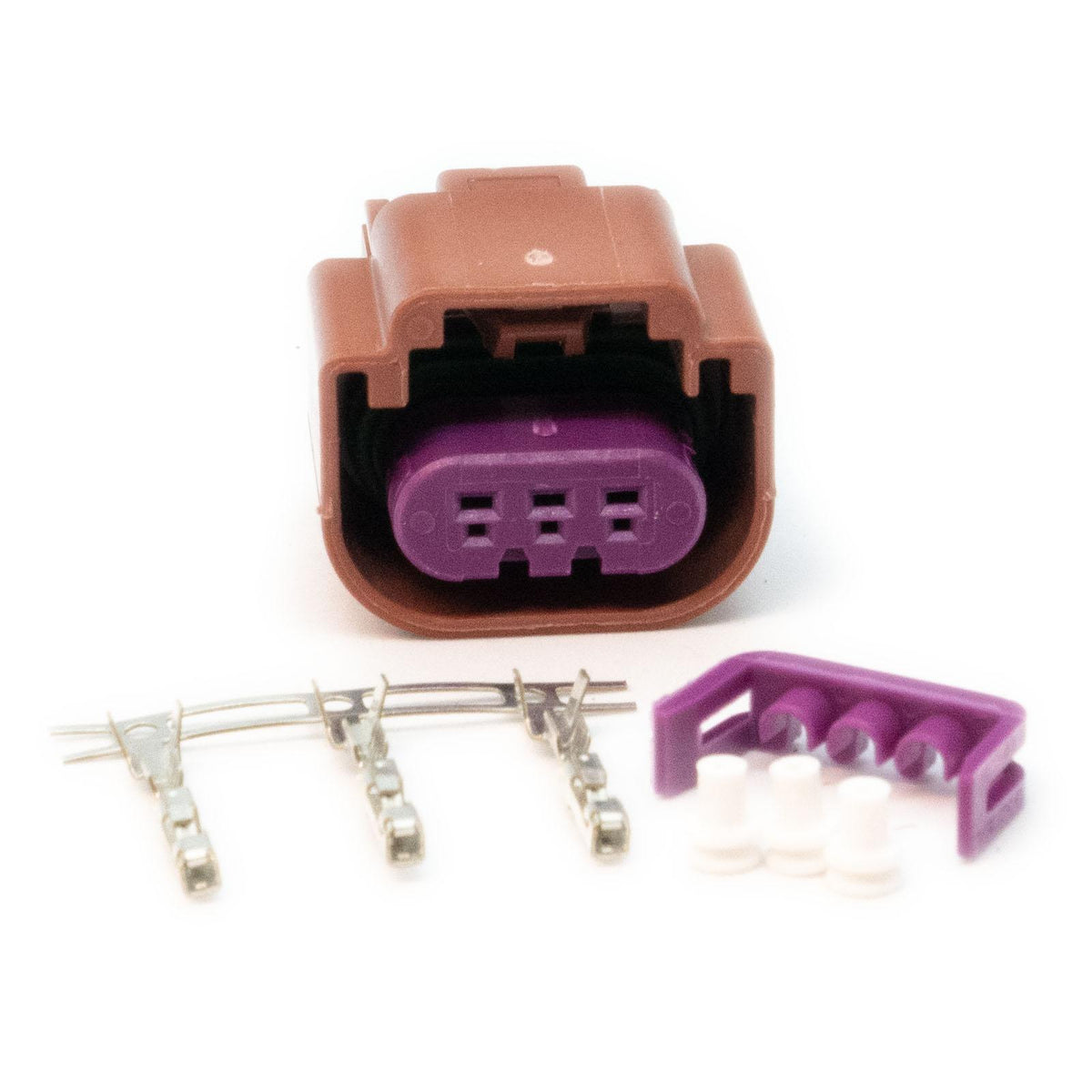

Includes: Ethanol content sensor, AN-6 adapter fittings (female EFI quick-connect to AN-6 male), 3-pin connector and pin kit.

Specifications

• Digital output signal
• Ethanol content output: 50-150 Hz = 0-100% ethanol
• Fuel temperature output: 1-5 ms pulse width = -40°C to 125°C
• Operating voltage 9-18 V, maximum input voltage 18 V, maximum continuous current draw 20 mA
• Dimensions: 130 x 130 x 40 mm (5.12 x 5.12 x 1.57 in)
• Weight: 130 g (4.59 oz)

Notes

• Install in the fuel return line, between the fuel pressure regulator and the tank.
• Needs a 12 V supply, battery ground and one ECU digital input.
• Ethanol content and fuel temperature must be set up in the ECU software.
• Link recommends installation and setup by an official Link dealer.
