Link TFZJ100X Plug-In ECU (Toyota Land Cruiser FZJ100) - 230-4000

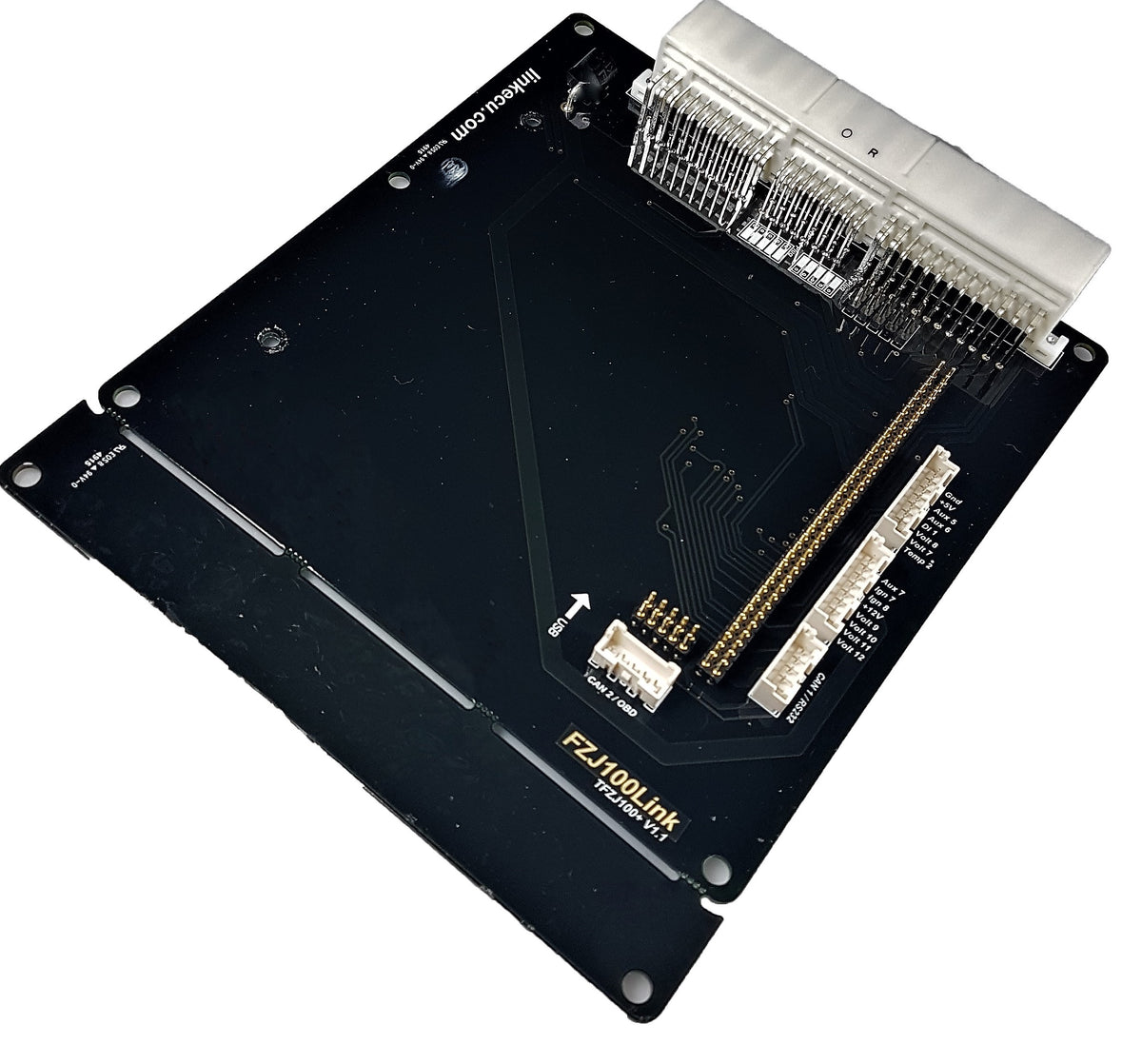

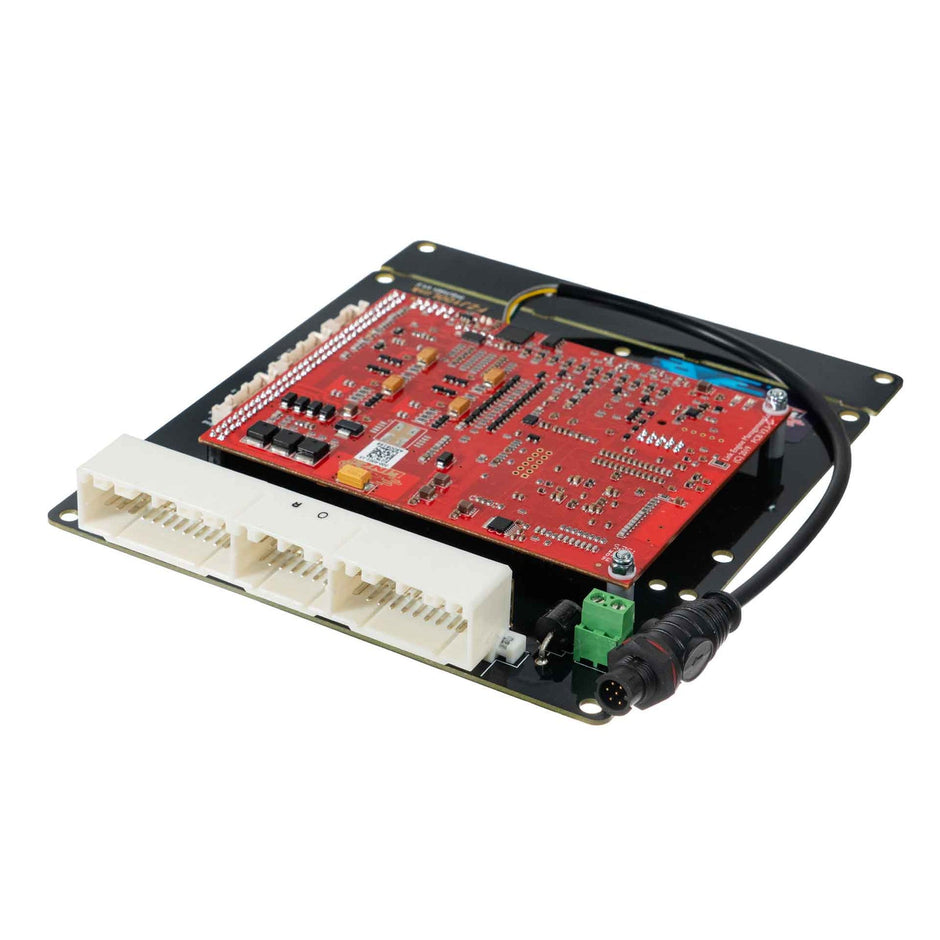

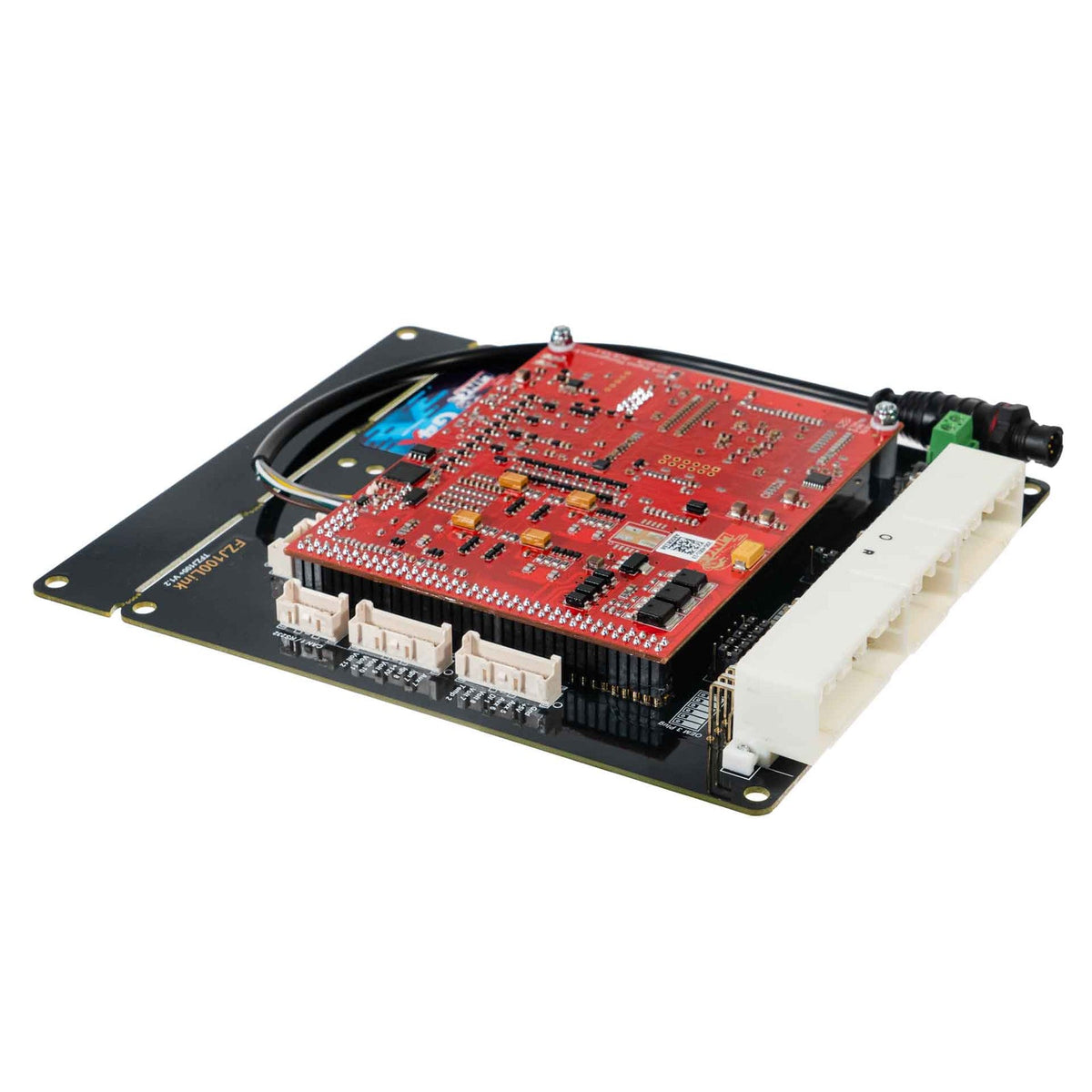

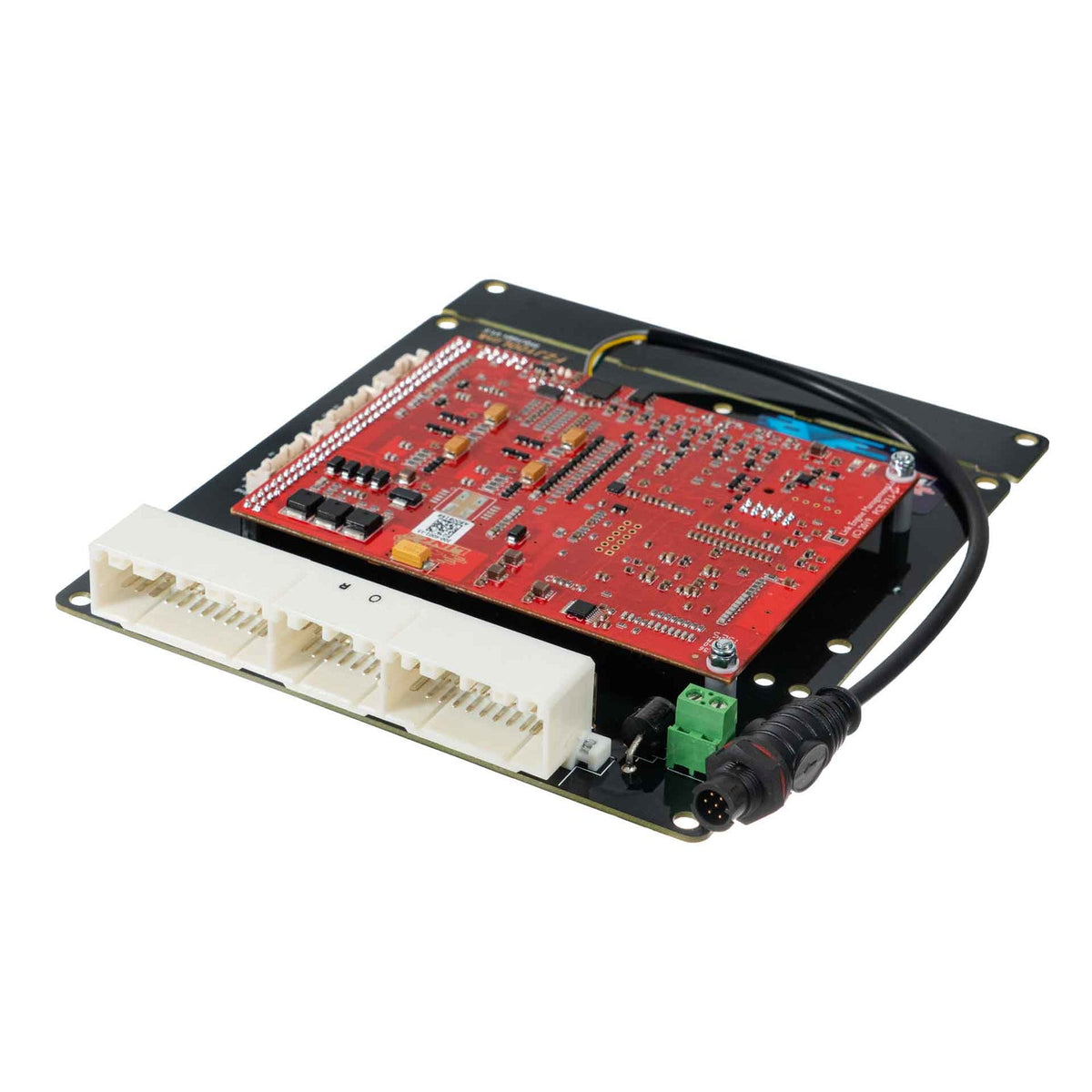

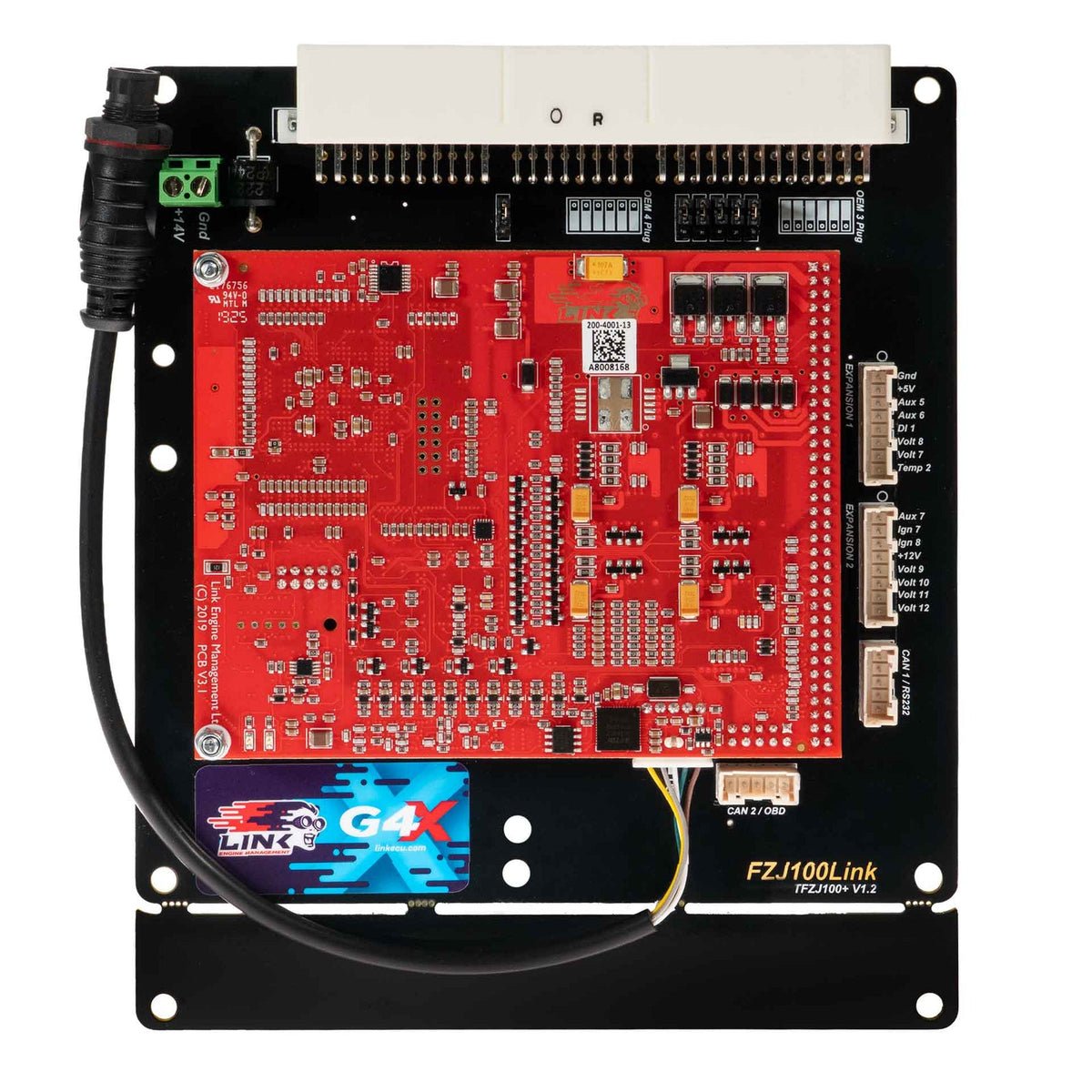

The TFZJ100X is a G4X plug-in ECU for the Toyota Land Cruiser FZJ100 with the 1FZ-FE non-VVTi six. It fits the factory ECU location using the original mounts, loom and connectors with no adapter looms or rewiring, keeps the factory functions and includes a startup map.

It brings full control of fuel, ignition, boost, idle and auxiliary outputs through the G4X platform, along with motorsport functions such as nitrous, launch control, anti-lag, traction control and paddle shift control, and works with leading aftermarket dashes over CAN or serial.

Suits: Toyota Land Cruiser FZJ100 with 1FZ-FE non-VVTi engine, three-plug and four-plug factory harnesses. Manual transmission only.

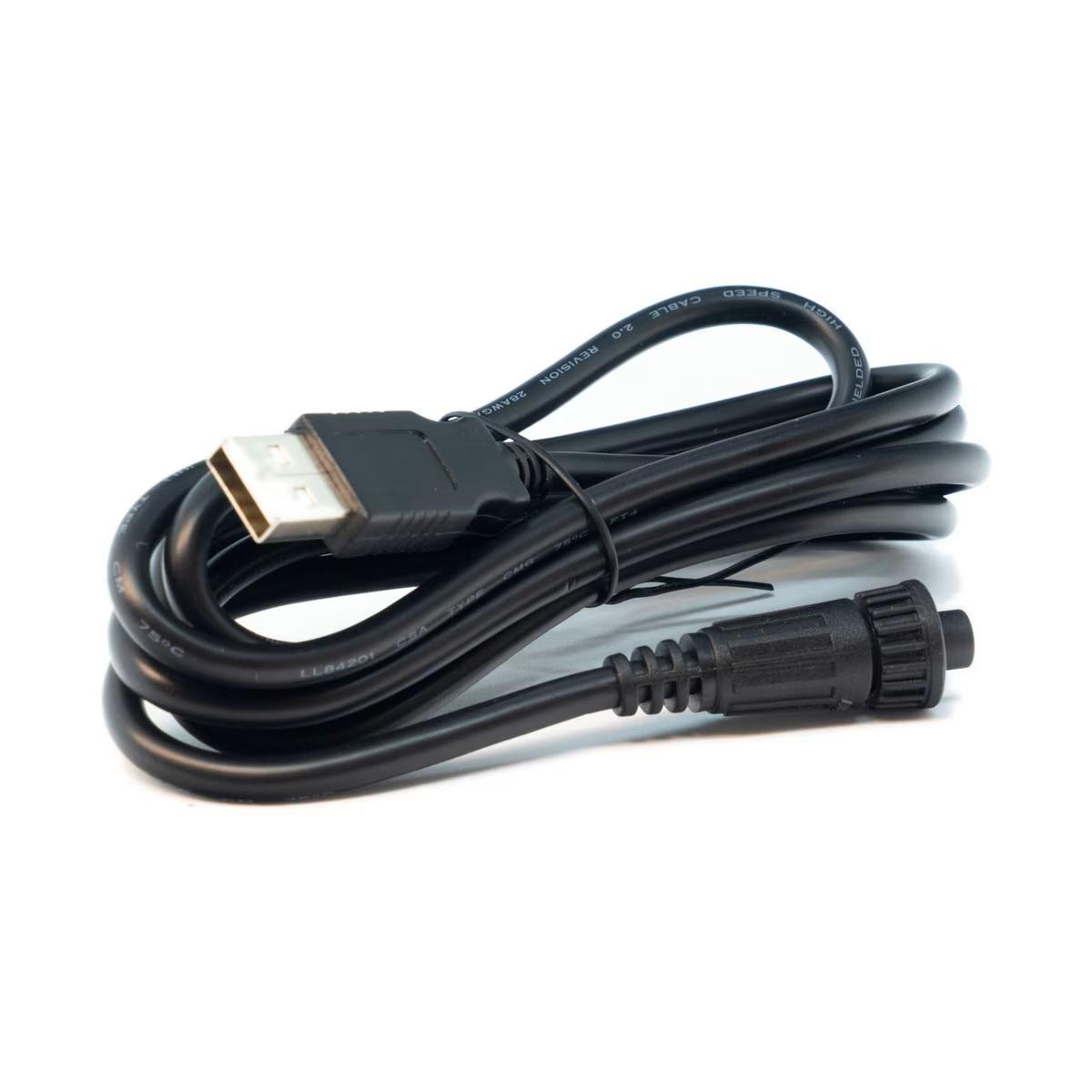

Includes: G4X TFZJ100X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

• Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
• Onboard logging: 512 MB
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 3.5 A
• Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
• Weight: 260 g (9.17 oz)
• Inputs/outputs: see the TFZJ100X installation manual

Notes

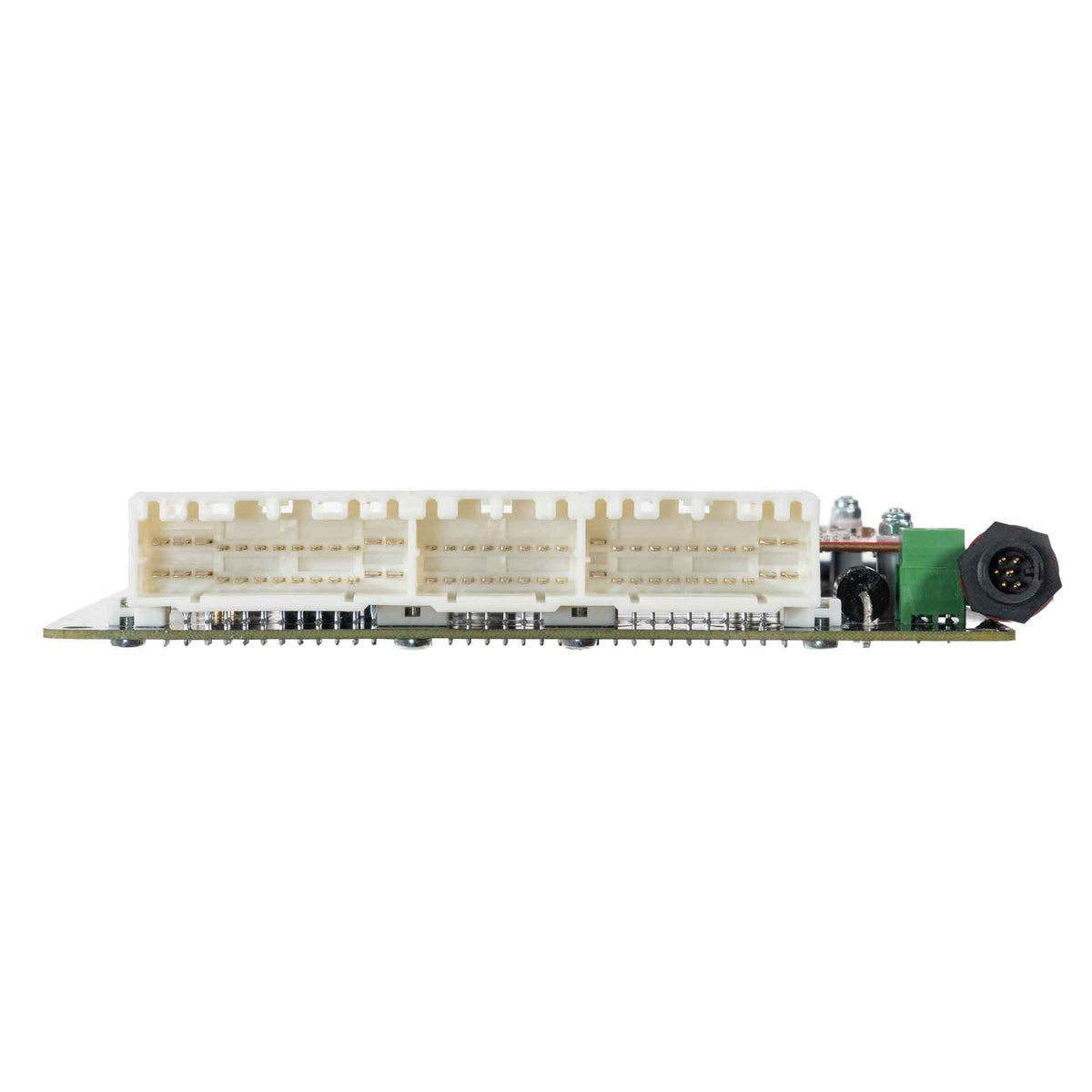

• Check that your connector matches the header shown in the photos before ordering.
• On four-plug vehicles, the harness plug with no matching ECU connector is left disconnected.
• E-throttle requires a modification before it can be used.
• Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.
