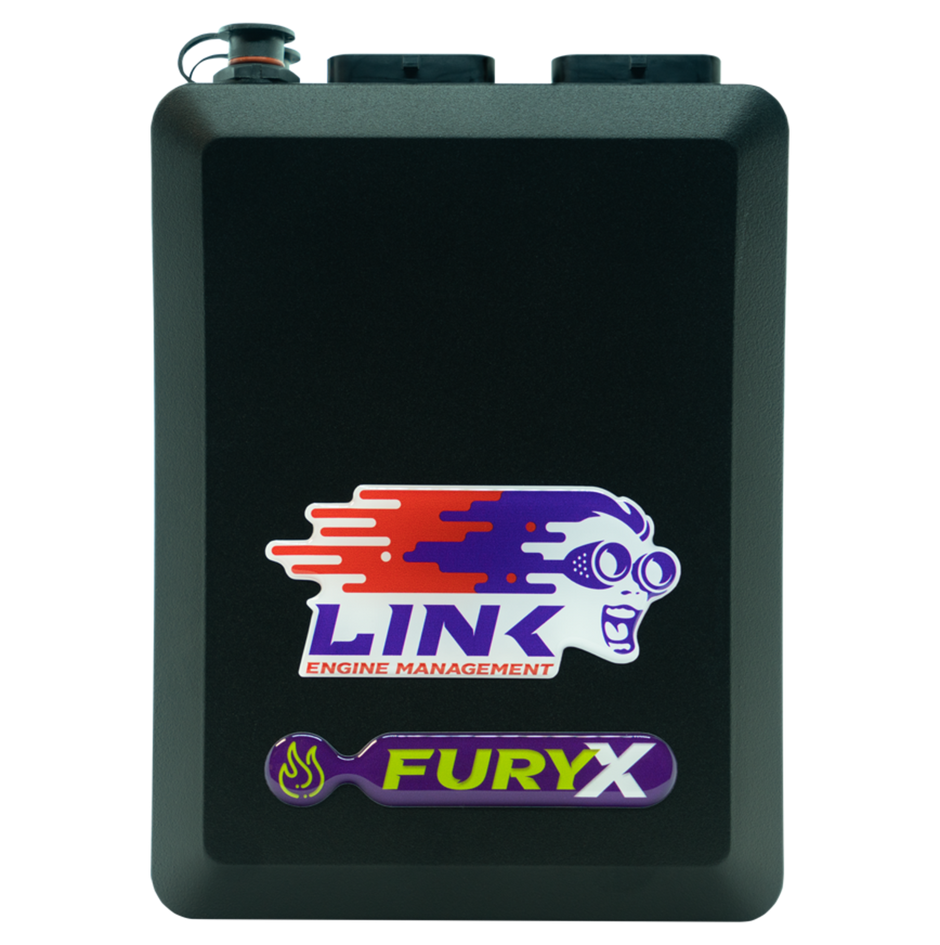

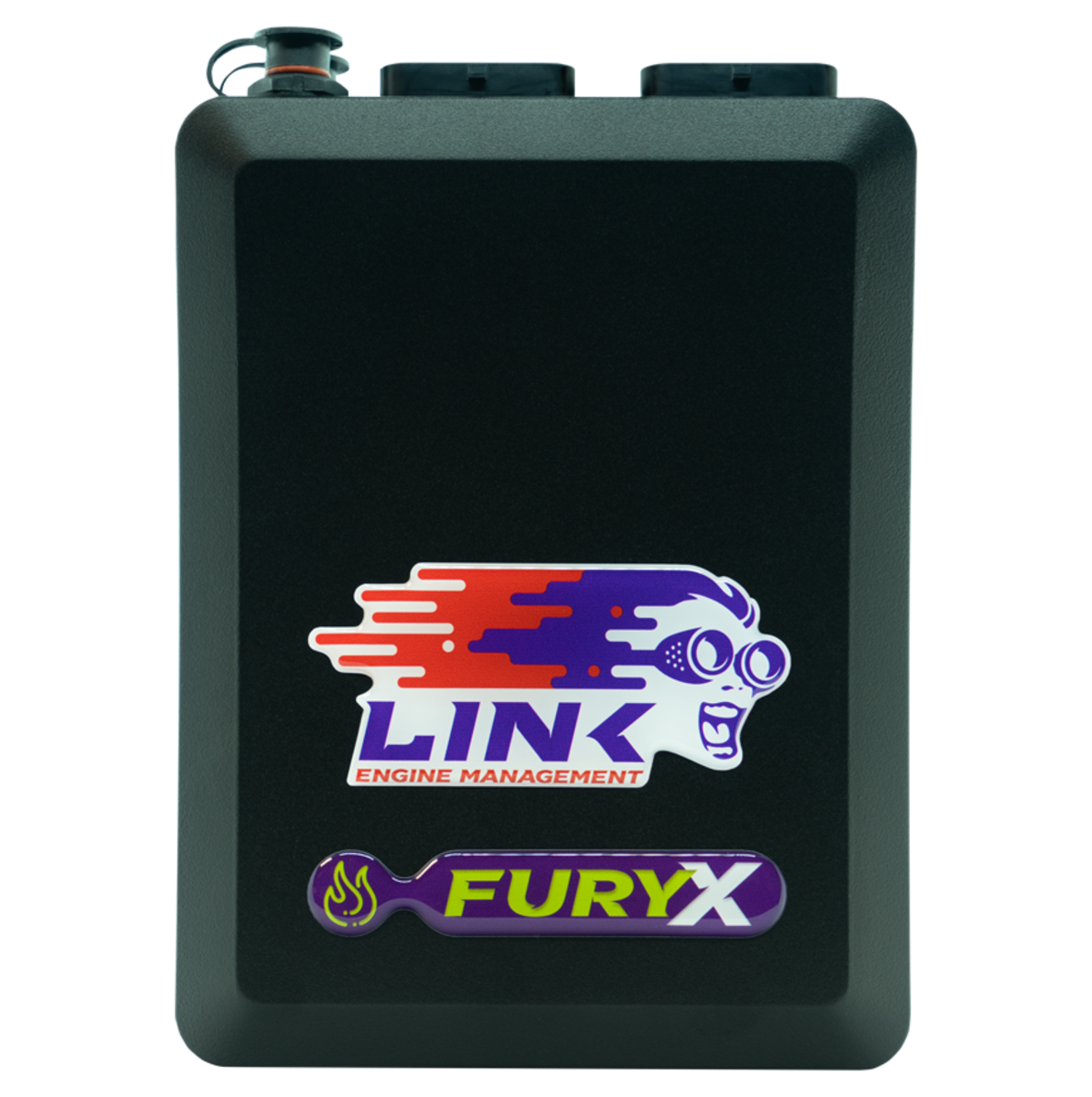

LINK G4X FuryX 122-4000

A premium G4X ECU for up to 6 cylinders, the FuryX combines extensive I/O, Onboard Wideband Lambda, E-Throttle control and the full suite of G4X motorsport features for demanding performance and race applications.

The FuryX includes all the core G4X features expected from Link's championship-winning platform including Flex Fuel, Flexible Engine Protection Limiters, CAN Keypad Control, Open and Closed Loop Boost Control, Dual Closed Loop Lambda, VVT Control, a Trigger Oscilloscope, compatibility with aftermarket displays and 512MB of onboard data logging.

Stepping up from Link's entry-level and mid-range G4X ECUs unlocks premium G4X features designed for more complex street, race and motorsport applications. The FuryX adds onboard Digital Wideband Lambda Control, fully programmable E-Throttle Control, Direct Automatic Transmission Control, dual CAN modules, a 3 Axis Accelerometer and expanded I/O, while also providing access to the full suite of G4X motorsport features including Launch Control, Anti-Lag, Nitrous Control, Paddle Shift Control, Gear Shift Control, Traction Control and Cruise Control.

The FuryX is the ideal solution for high-performance street, and motorsport builds that demand flexibility, onboard Wideband Lambda, E-throttle control, extensive I/O and the advanced features of a premium G4X ECU.

Models Supported

The FuryX can control up to 3 rotors or 6 cylinders with sequential injection and direct spark.

Features

ECU Features:

• Onboard Digital Wideband Lambda Control
• E-throttle Control
• 8 Custom Math Blocks with 30 characters
• Flex Fuel
• Trigger Oscilloscope
• 3 Axis Accelerometer
• Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Dual Closed Loop Lambda
• Direct Automatic Transmission Control
• Compatible with all leading after-market dashes via CAN or serial stream
• 512 Megabytes of internal data logging

Motorsport Features:

• Nitrous Control
• Launch Control
• Anti-lag
• Cruise Control
• Traction Control
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

Specifications

• Outputs: 8 Injection Drives, 6 Ignition Drives, 10 Auxiliary Outputs, +5V Sensor power supply, +8V Sensor power supply, Unused Inj/Ign can be used as Auxiliary Outputs
• Inputs: 10* Digital Inputs, 4 Temperature Inputs, 9 Analogue Inputs, 2 Trigger Inputs, 2 Knock Inputs, Unused Temperature and Analogue Inputs can be used as Digital Inputs (*2 Digital Inputs required when using 2nd CAN Bus)
• Communications: 2 CAN Bus Channel, LTW 6Pin USB Tuning Connection
• Data Logging: 512MB Onboard Logging Memory, 100kHz Maximum Total Logging Rate, 250 Logging Channels
• Product Dimensions: 185mm(L) x 130mm(W) x 40mm(H), 7.28in(L) x 5.12in(W) x 1.57in(H)
• Product Weight: 680 grams (23.99 ounces)
• Material: Die-cast aluminum enclosure
• Electrical: Operating Voltage Range: 6.5-24V, Maximum Input Voltage: 36V, Maximum Continuous Current Draw: 8A, Operating Current: 200mA
• Misc.: Manufacturing Standard ISO 13485, Ambient temperature range: -30 to 90°C
• What's in the Box: FuryX G4X ECU, Quick Start Guide, Mounting Bracket, USB Tuning Cable, LinkECU Stickers
• Connector: Superseal 4 Row 34 Position x2 (Part number 4-1437290-0, Part number 4-1437290-1)

Manuals & Install Guides

• FuryX Quickstart Guide
